Home >> Honda >> 2010 >> Accord L4-2.4L >> Repair and Diagnosis >> Locations >> Harness Locations >> Audio Wire Harness (With Premium Audio System and Navigation System)

Audio Wire Harness (With Premium Audio System and Navigation System)

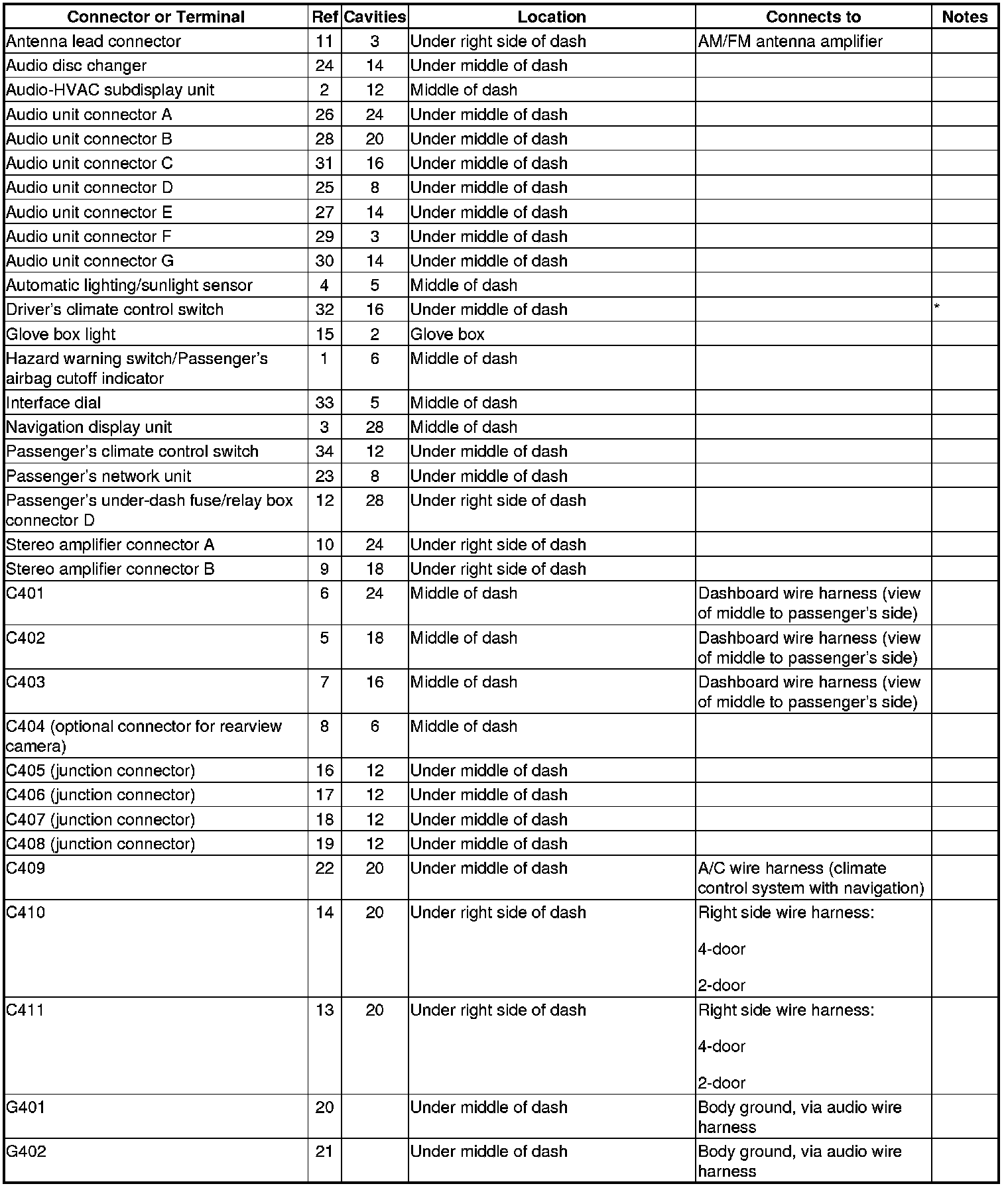

Connector and Harness Locations


Audio Wire Harness (With Premium Audio System and Navigation System)

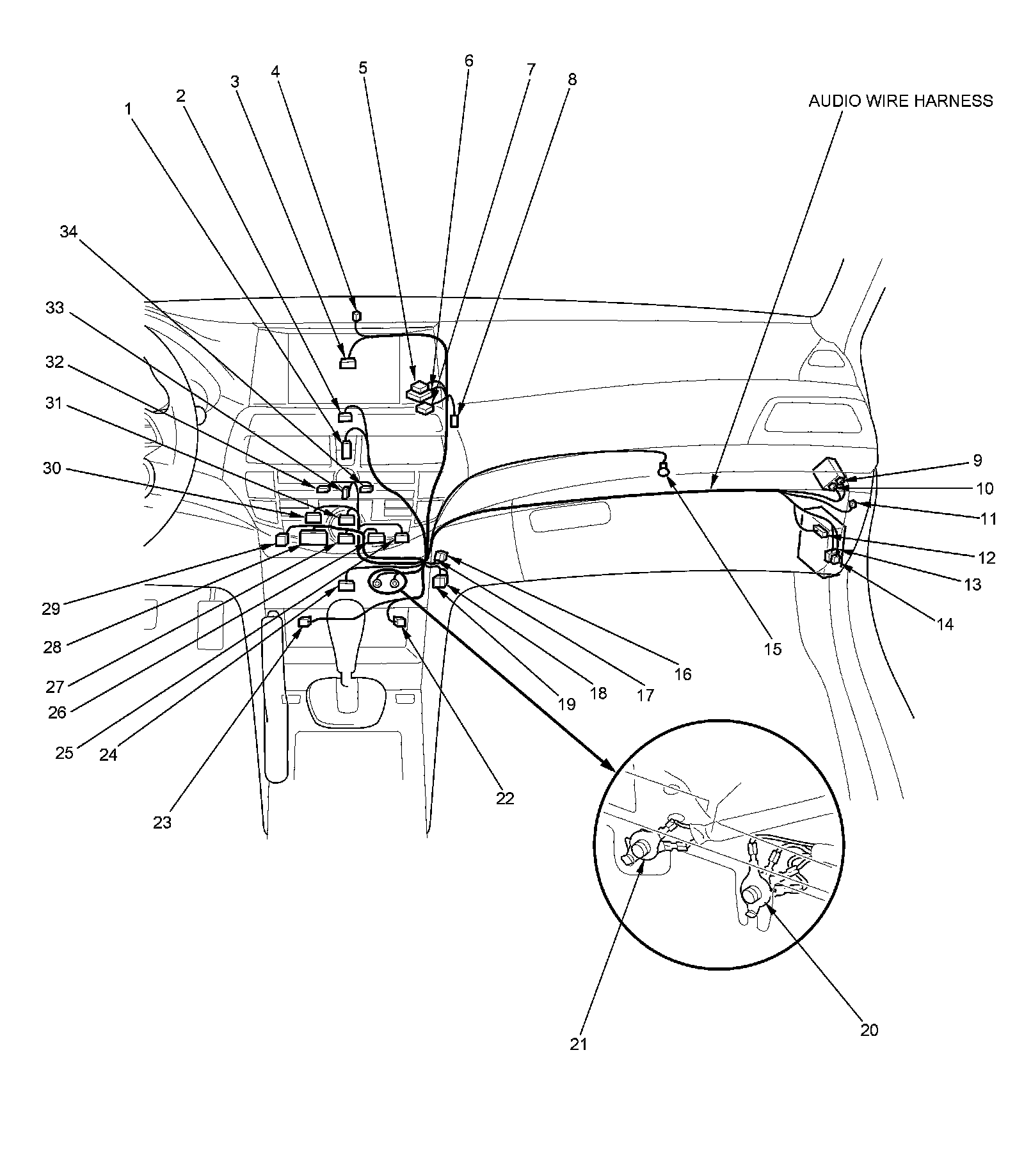

Harness View
