Trunk Lid Latch Switch Test

Trunk Lid Latch Switch Test

1. Open the trunk lid.

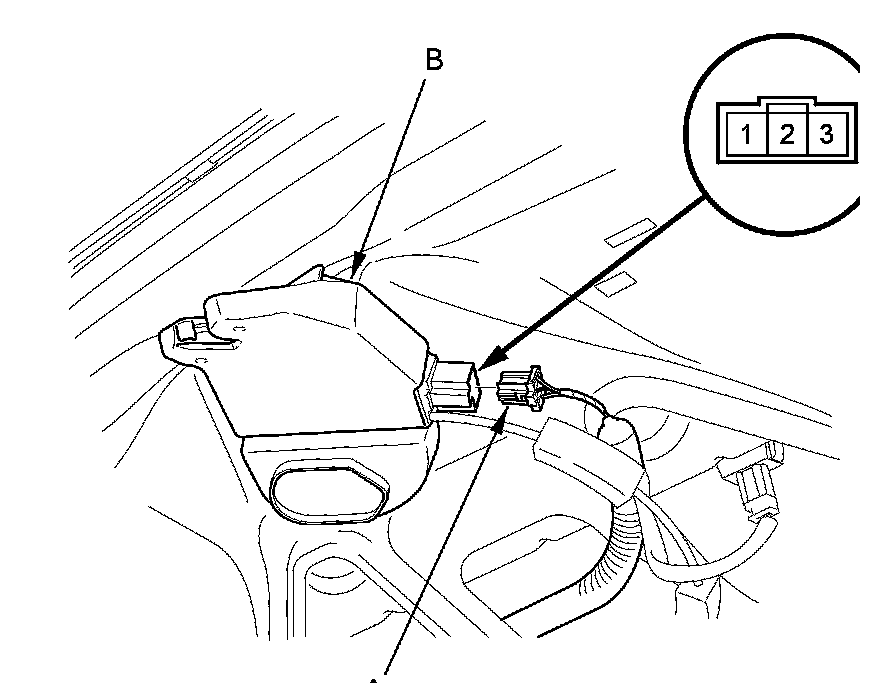

2. Disconnect the 3P connector (A) from the trunk lid latch assembly (B).





3. Check for continuity between terminals No. 1 and No. 2.

- There should be continuity with the trunk lid open.
- There should be no continuity with the trunk lid closed.

4. If the continuity is not as specified, replace the trunk lid latch assembly.
