Condenser Fan Motor: Testing and Inspection

Radiator and A/C Condenser Fan Motor Test

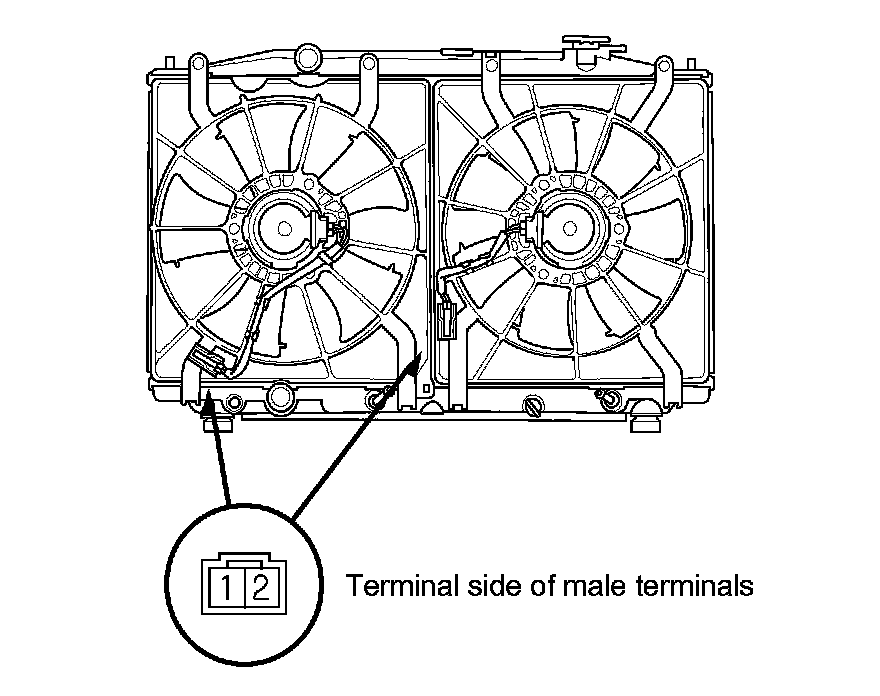

1. Disconnect the 2P connectors from the radiator fan motor and the A/C condenser fan motor.





2. Test the motor by connecting battery power to terminal No. 2 and ground to terminal No. 1.

3. If the motor fails to run or does not run smoothly, replace it Radiator and A/C Condenser Fan, Motor, and Shroud Removal and Installation.
