Drive Belt Auto-Tensioner Pulley Replacement




Drive Belt Auto-Tensioner Pulley Replacement

1. Remove the auto-tensioner Drive Belt Auto-Tensioner Removal/Installation.

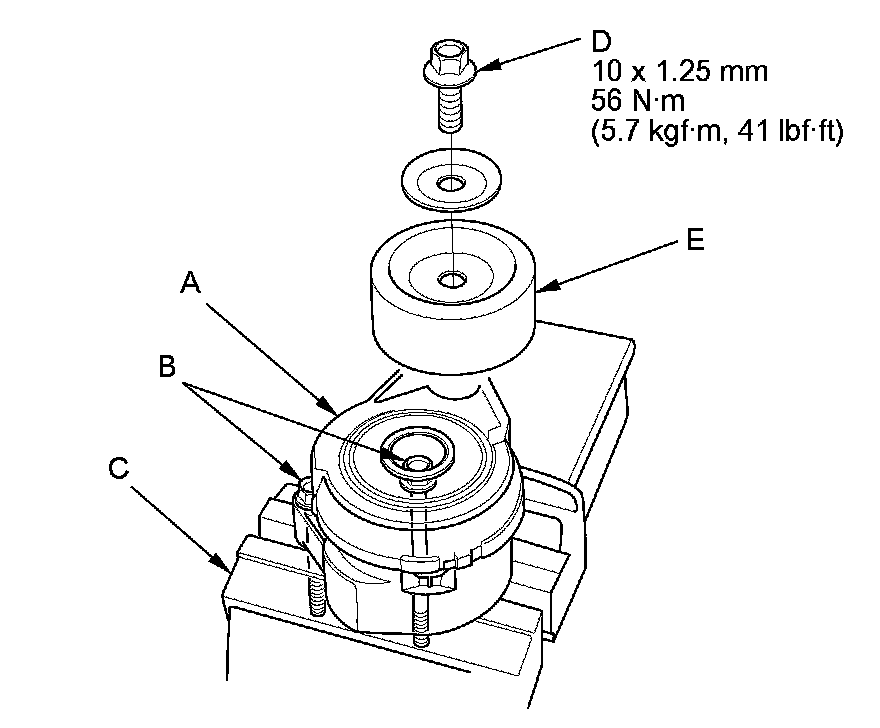

2. Clamp the auto-tensioner (A) by using two 8 mm bolts (B) and a vise (C) as shown. Do not clamp the auto-tensioner itself, then remove the tensioner pulley bolt (D), then remove the tensioner pulley (E).





3. Install the tensioner pulley in the reverse order of removal.
