Engine Oil Gallery Cap Replacement




Engine Oil Gallery Cap Replacement

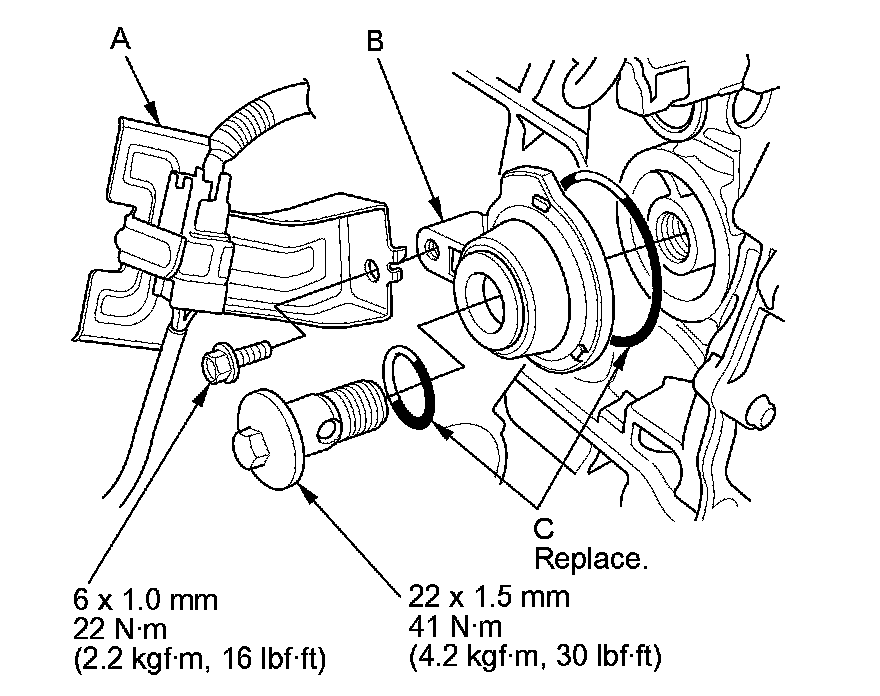

1. Remove the harness bracket (A), then remove the engine oil gallery cap (B).





2. Clean the O-ring groove and mating surface with the engine oil gallery cap.

3. Apply new engine oil to new O-rings (C). Install the engine oil gallery cap with O-rings, then install the harness bracket.
