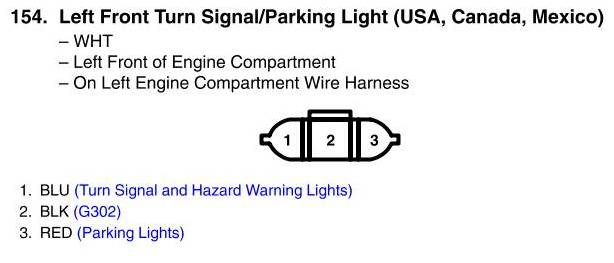

Left Front Turn Signal/Parking Light Connector View (USA, Canada, Mexico)
Left Front Turn Signal/Parking Light Connector View (USA, Canada, Mexico)
