Seat Temperature Element
>>

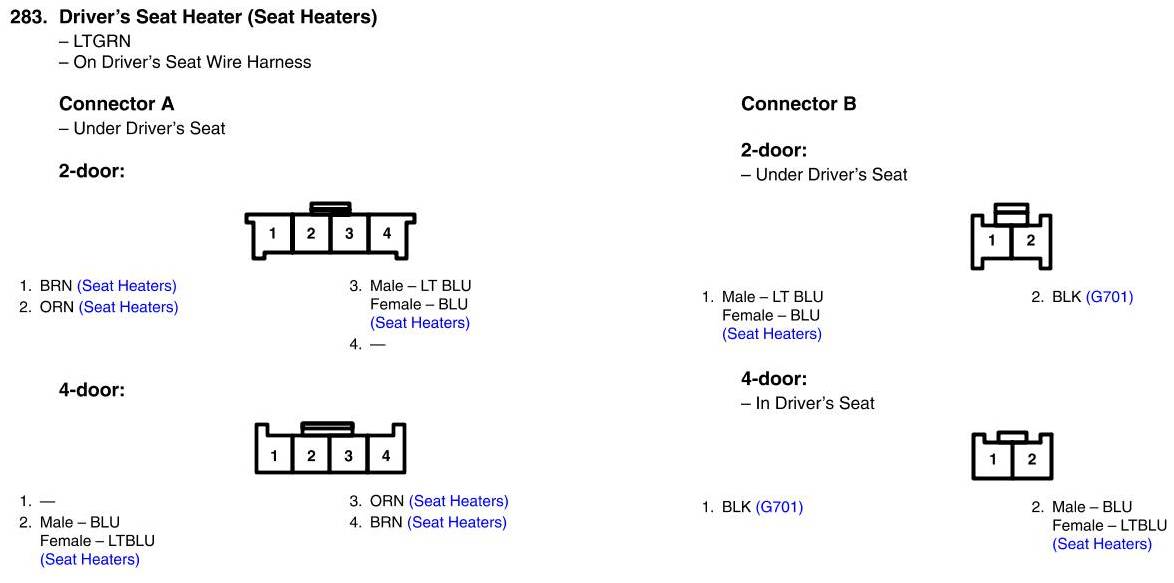

Driver's Seat Heater Connector View (Seat Heaters)
Driver's Seat Heater Connector View (Seat Heaters)
