Power Window Switch
>>

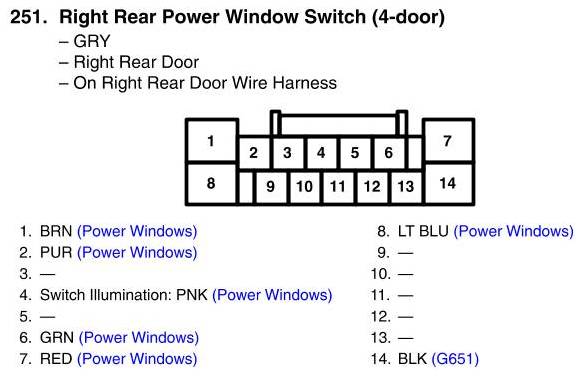

Right Rear Power Window Switch Connector View (4-Door)
Right Rear Power Window Switch Connector View (4-Door)
