Home >> Honda >> 2010 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Front Passenger's Power Seat Adjustment Switch Connector View (4-Door: Front Passenger's Power Seat)

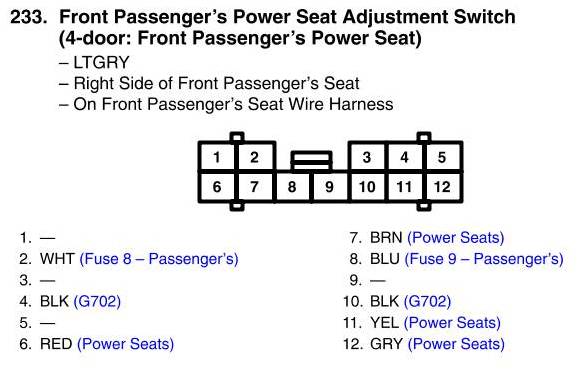

Front Passenger's Power Seat Adjustment Switch Connector View (4-Door: Front Passenger's Power Seat)
