Home
>>
Honda
>>
2010
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

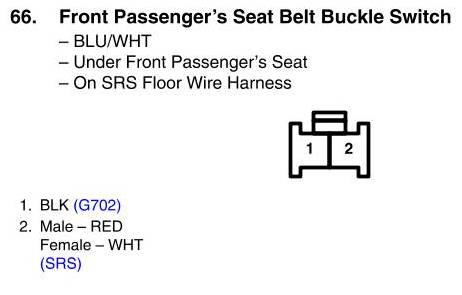

View 66 - Front Passenger's Seat Belt Buckle Switch Connector View
View 66 - Front Passenger's Seat Belt Buckle Switch Connector View
