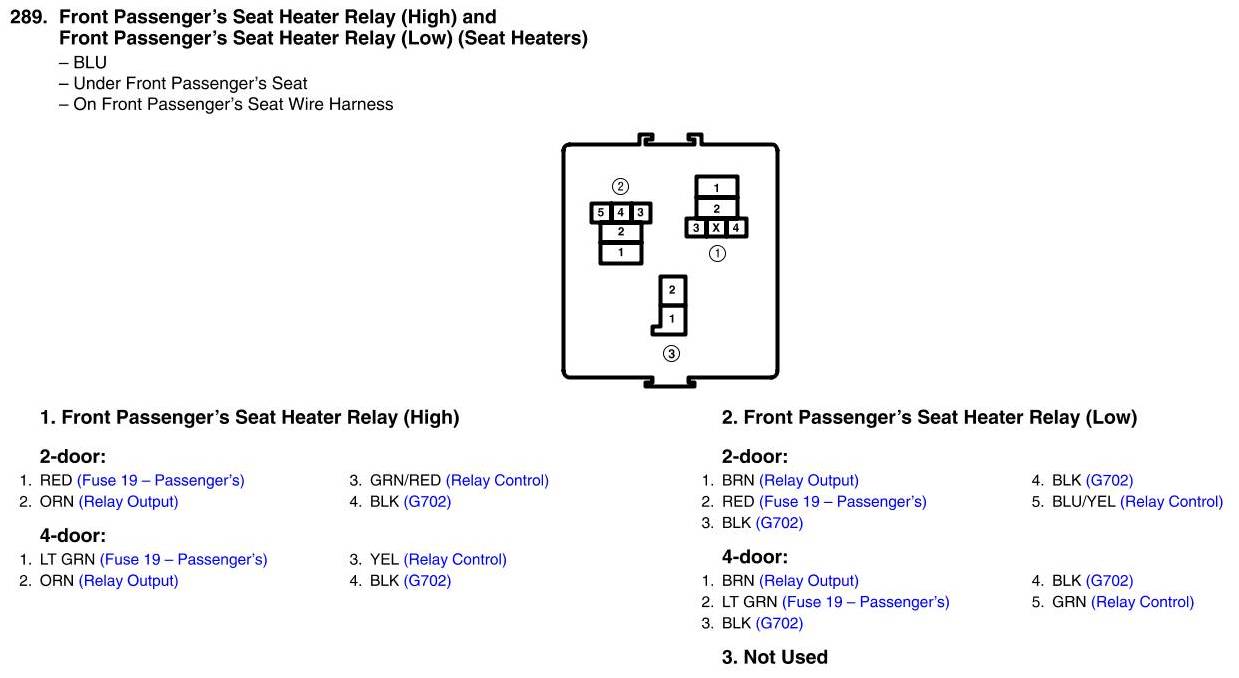

View 289 - Front Passenger's Seat Heater Relay (High and Low) Connector View

View 289 - Front Passenger's Seat Heater Relay (High) And Front Passenger's Seat Heater Relay (Low) Connector View (Seat Heaters)
