Home >> Honda >> 2010 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 262 - C411 Connector View (Navigation)

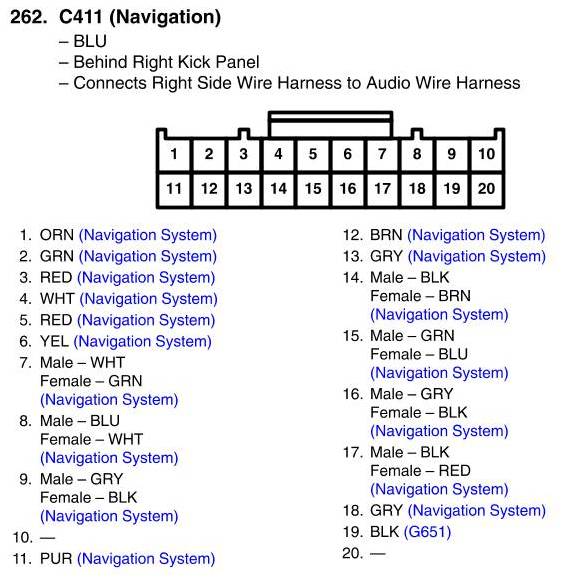

View 262 - C411 Connector View (Navigation)
