Home >> Honda >> 2010 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 255 - C403 Connector View (6 CD Disc Changer)

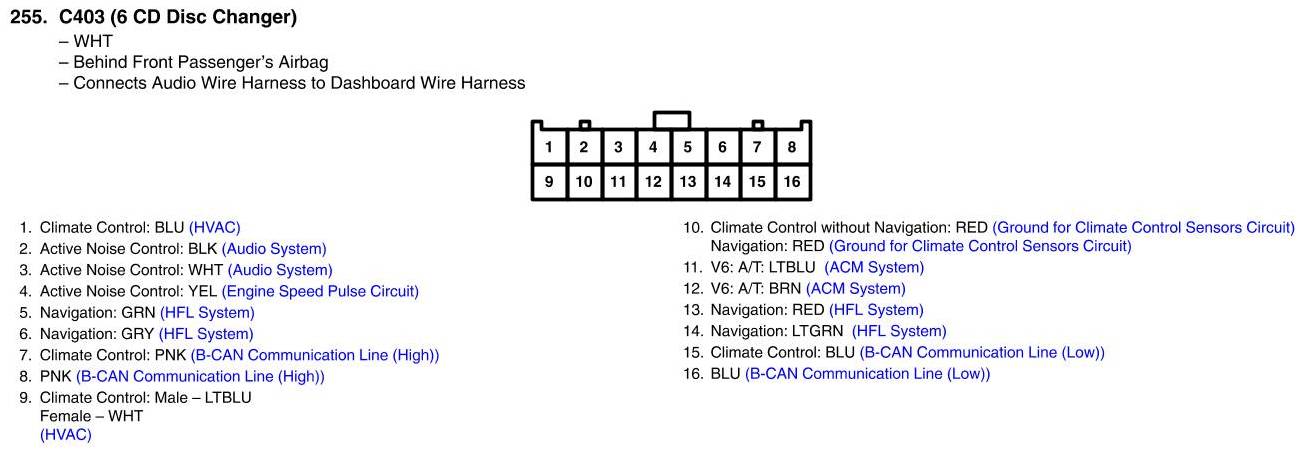

View 255 - C403 Connector View (6 CD Disc Changer)
