Home >> Honda >> 2010 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 240 - C503 Connector View (6 CD Disc Changer)

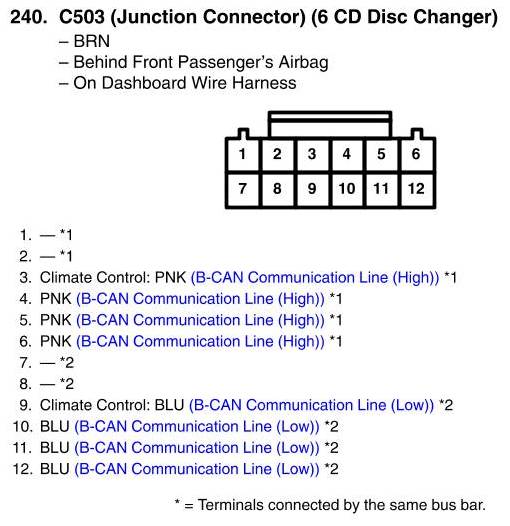

View 240 - C503 Connector View (6 CD Disc Changer)
