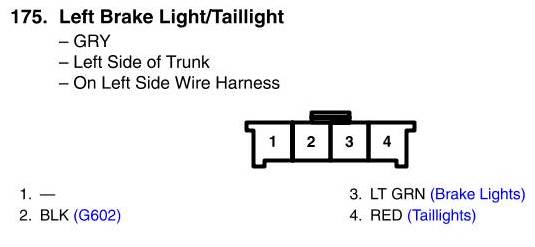

View 175 - Left Brake Light/Taillight Connector View
View 175 - Left Brake Light/Taillight Connector View
