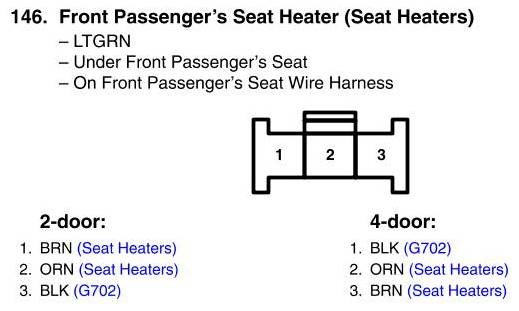

View 146 - Front Passenger's Seat Heater Connector View (Seat Heaters)
View 146 - Front Passenger's Seat Heater Connector View (Seat Heaters)
