Home >> Honda >> 2010 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 117 - Security Hood Switch Connector View (Security)

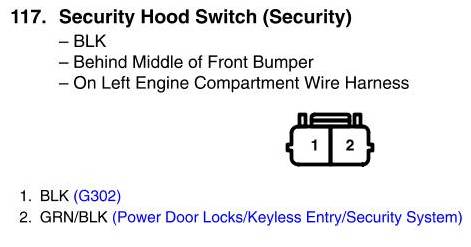

View 117 - Security Hood Switch Connector View (Security)
