Center Mounted Brake Lamp
>>

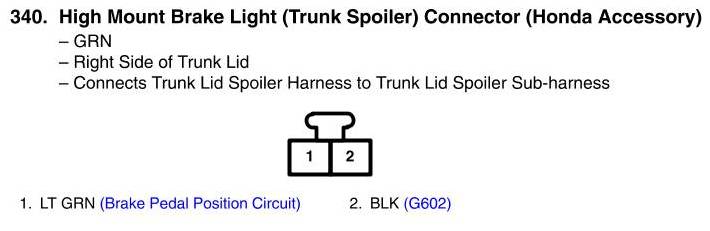

High Mount Brake Light (Trunk Spoiler) Connector View (Honda Accessory)

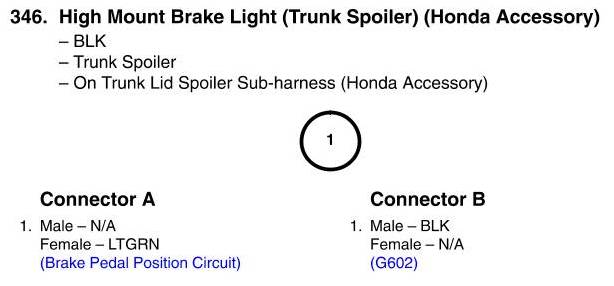

High Mount Brake Light (Trunk Spoiler) Connector View (Honda Accessory)
