Home >> Honda >> 2010 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cabin Noise Sensor >> Rear Active Noise Control Microphone Connector View (Active Noise Control)

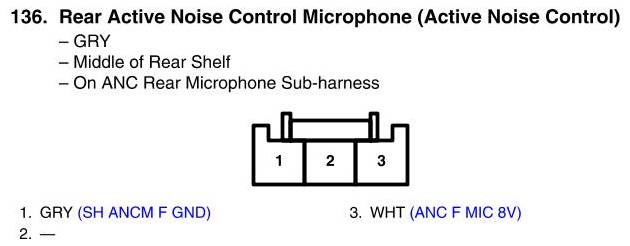

Rear Active Noise Control Microphone Connector View (Active Noise Control)
