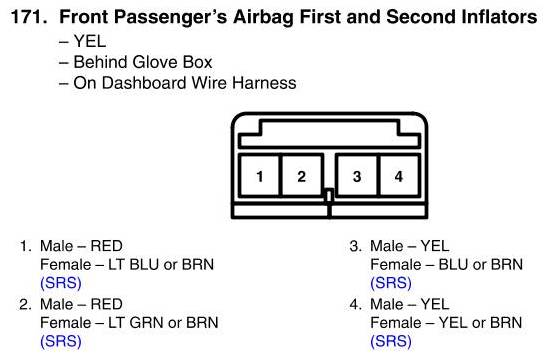

Front Passenger's Airbag First And Second Inflators Connector View
Front Passenger's Airbag First And Second Inflators Connector View
