Cylinder Head Cover Removal

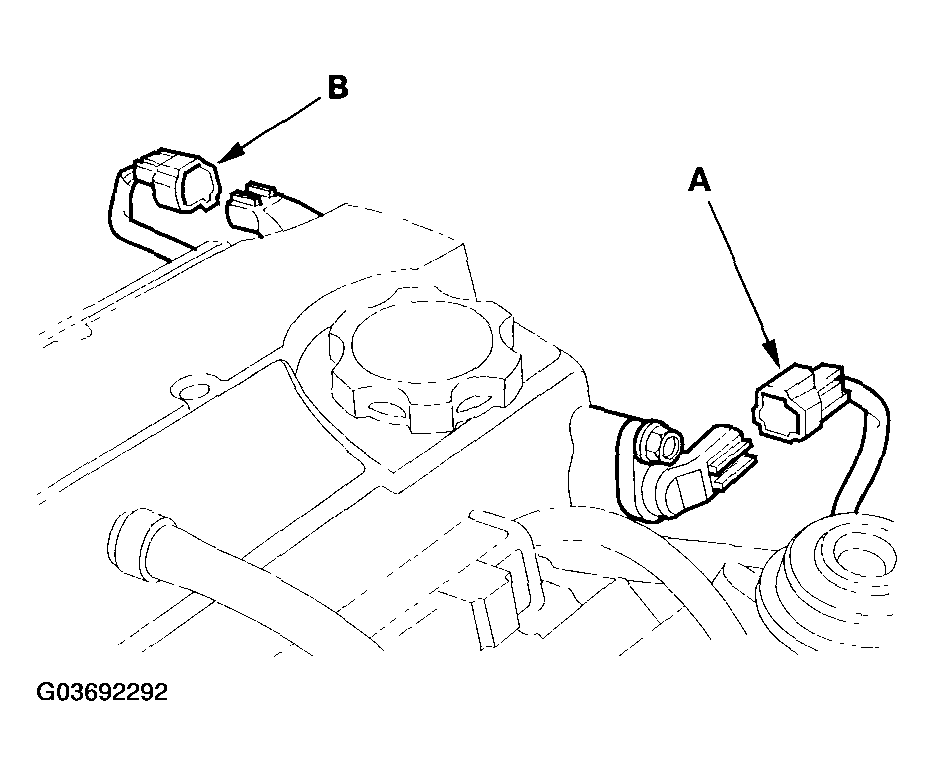

2000-2005 models: Disconnect the camshaft position (CMP) sensor A (top dead center (TDC) sensor 1) connector and CMP sensor B (TDC sensor 2) connector.

Fig 1: Disconnecting Camshaft Position (CMP) Sensor A Connector And CMP Sensor B Connector - 2000-2005 Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.

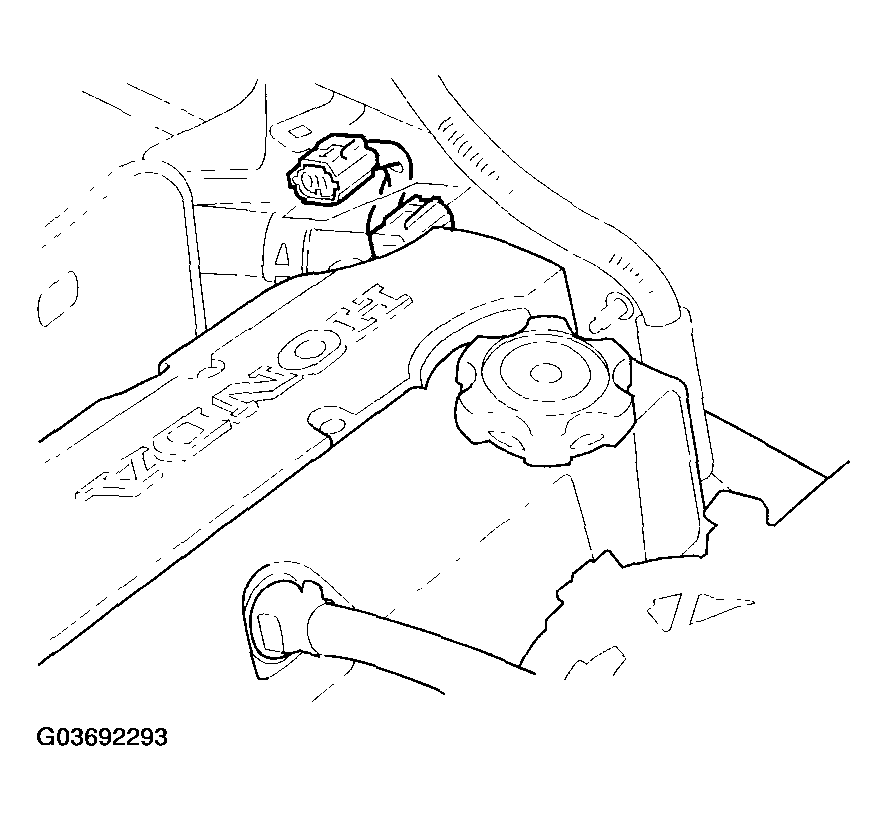

2006-08 model: Disconnect the camshaft position (CMP) sensor connector.

Fig 2: Disconnecting Camshaft Position (CMP) Sensor Connector - 2006-08 Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

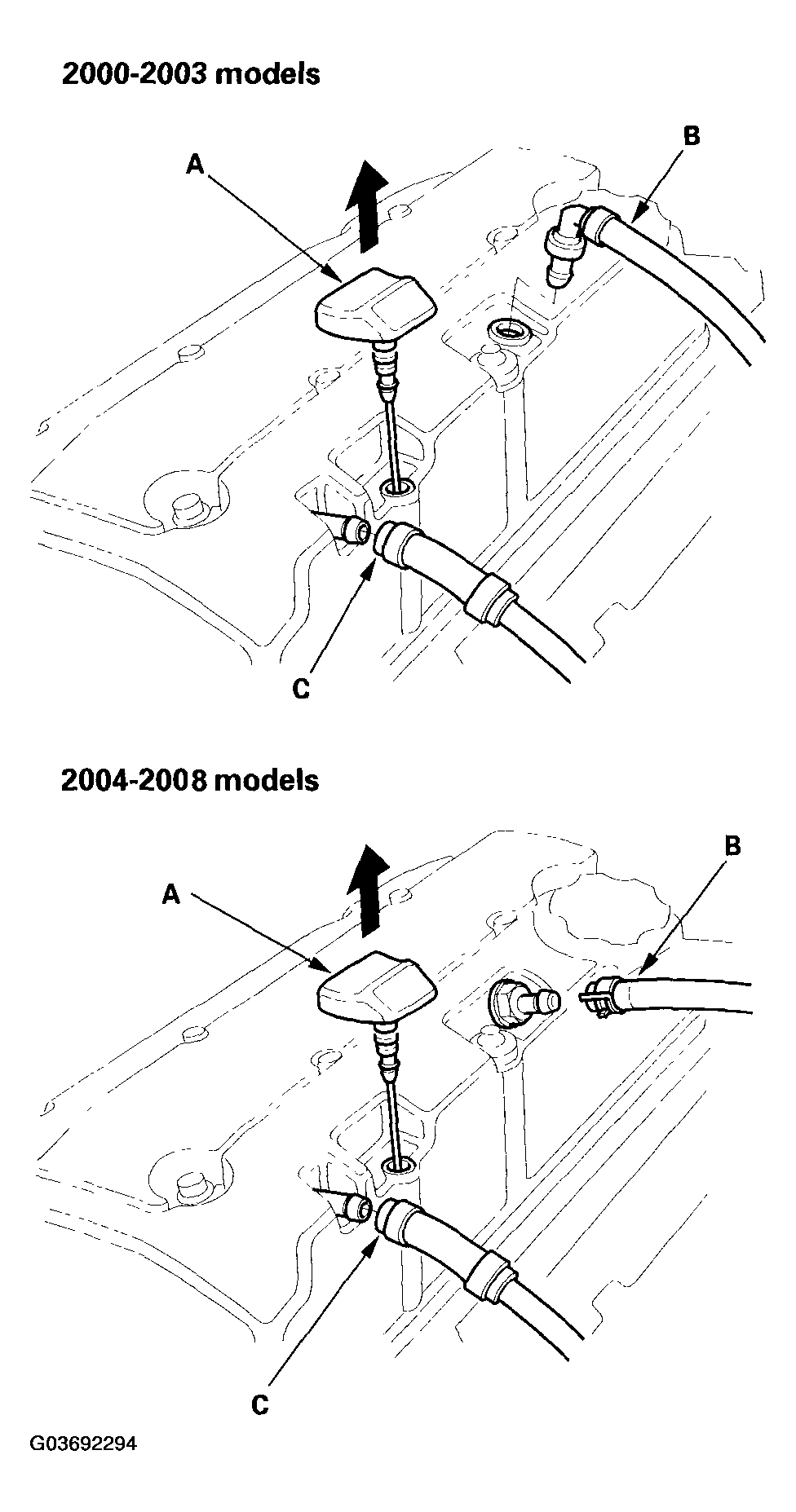

Remove the dipstick (A), positive crankcase ventilation (PCV) hose (B), and breather hose (C).

Fig 3: Removing Dipstick, Positive Crankcase Ventilation (PCV) Hose And Breather Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

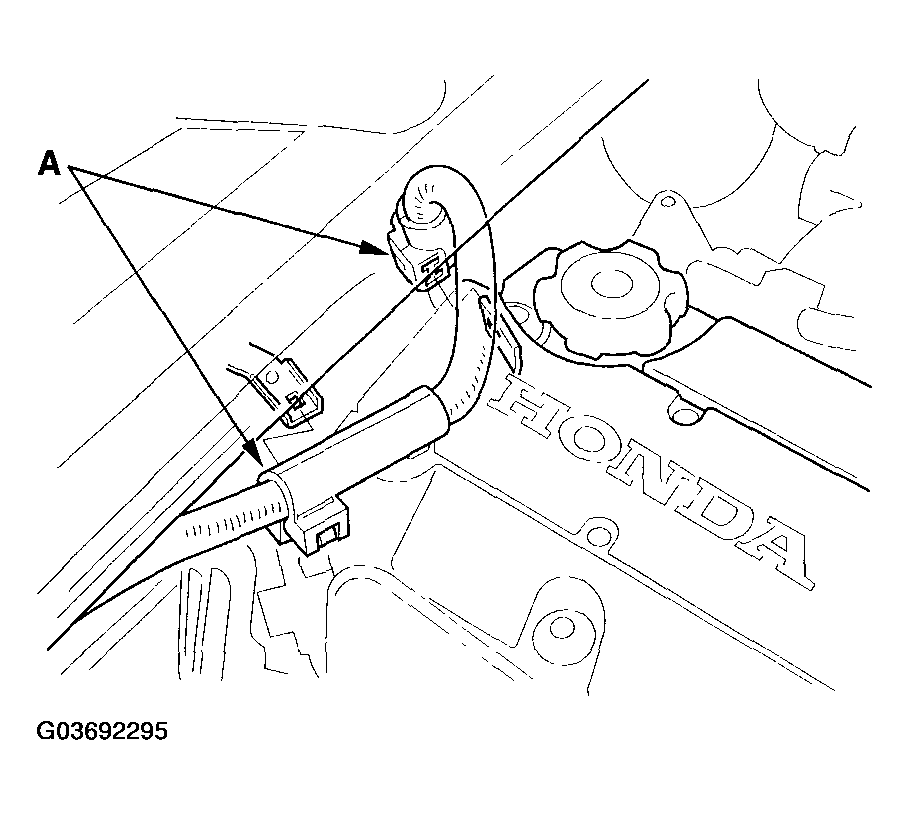

Remove the harness clamps (A).

Fig 4: Removing Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the ignition coil (see IGNITION COIL REMOVAL/INSTALLATION ).

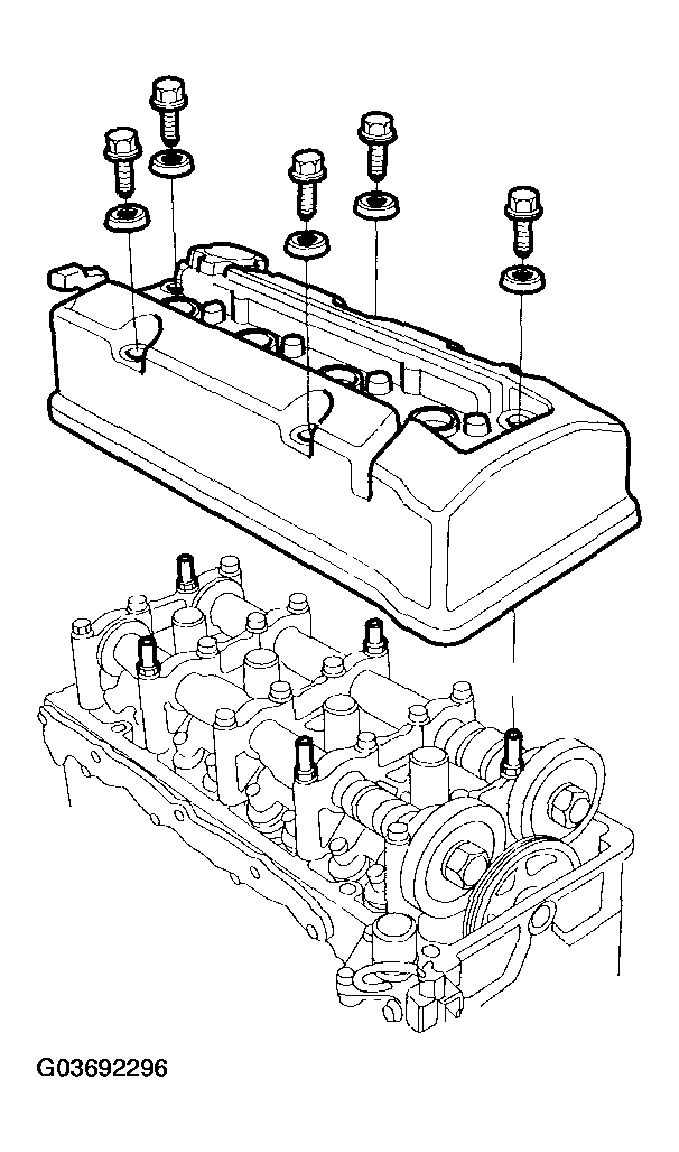

Remove the cylinder head cover.

Fig 5: Removing Cylinder Head Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
