Home >> Honda >> 2009 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Locations >> Harness Locations >> Floor Wire Harness (Right Branch) Connector and Harness Locations >> Connectors and Harnesses

Connectors and Harnesses

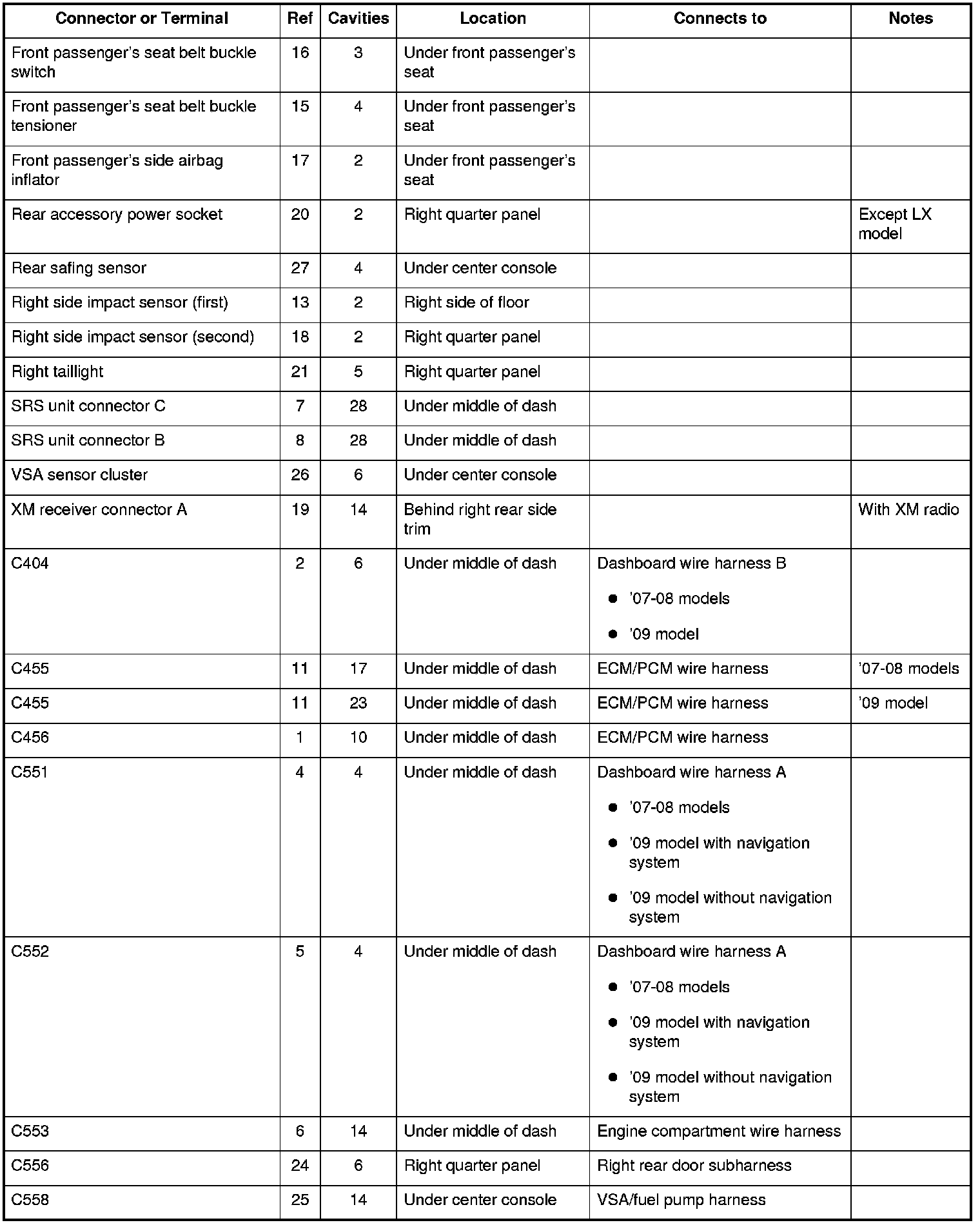

Floor Wire Harness (Right Branch) Connector and Harness Locations

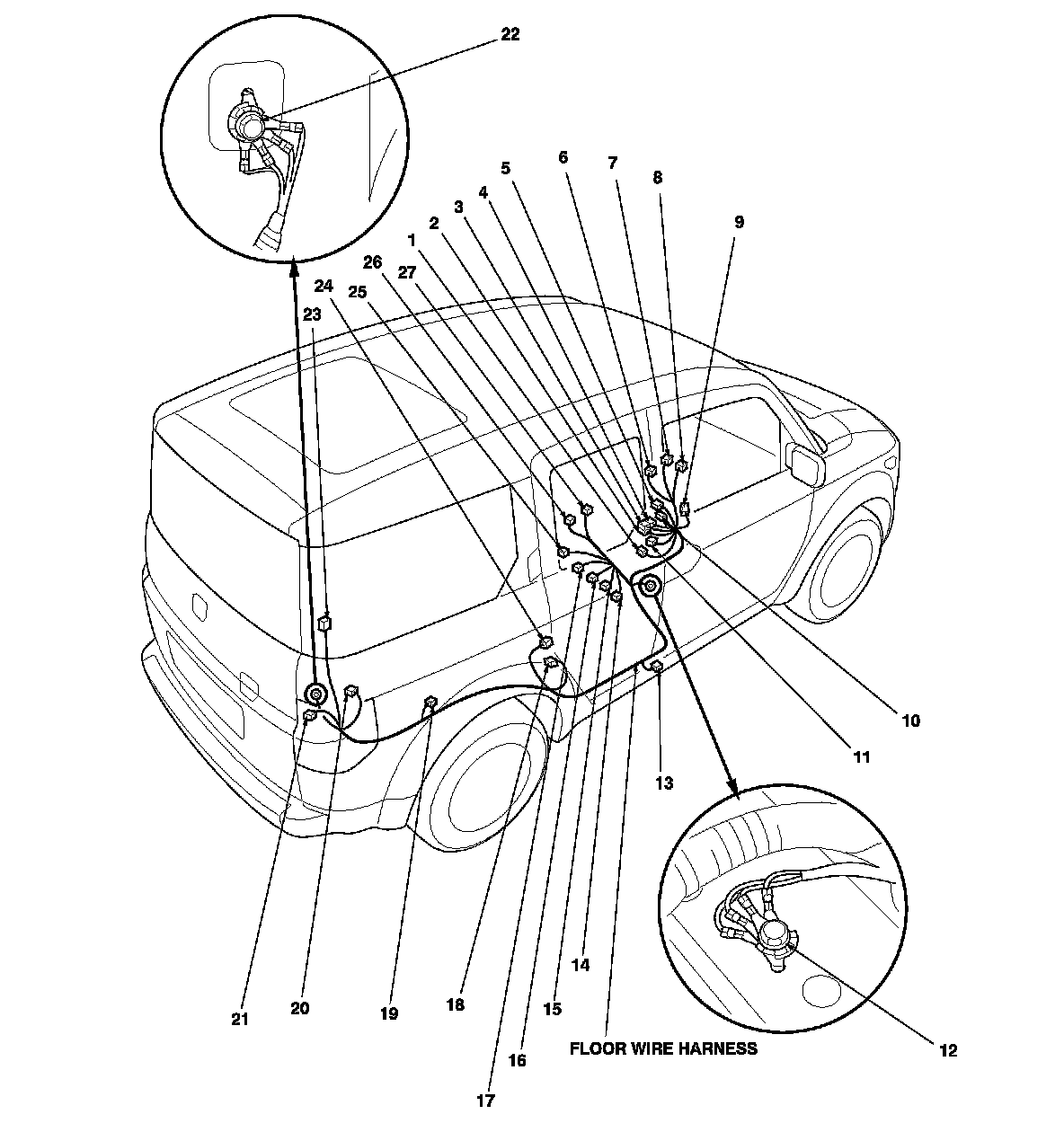

Floor Wire Harness (Right branch)
