Home >> Honda >> 2009 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Locations >> Harness Locations >> Floor Wire Harness (Left Branch), Console Subharness, and Seat Position Sensor Subharness Connector and Harness Locations >> Connector to Harness Locations

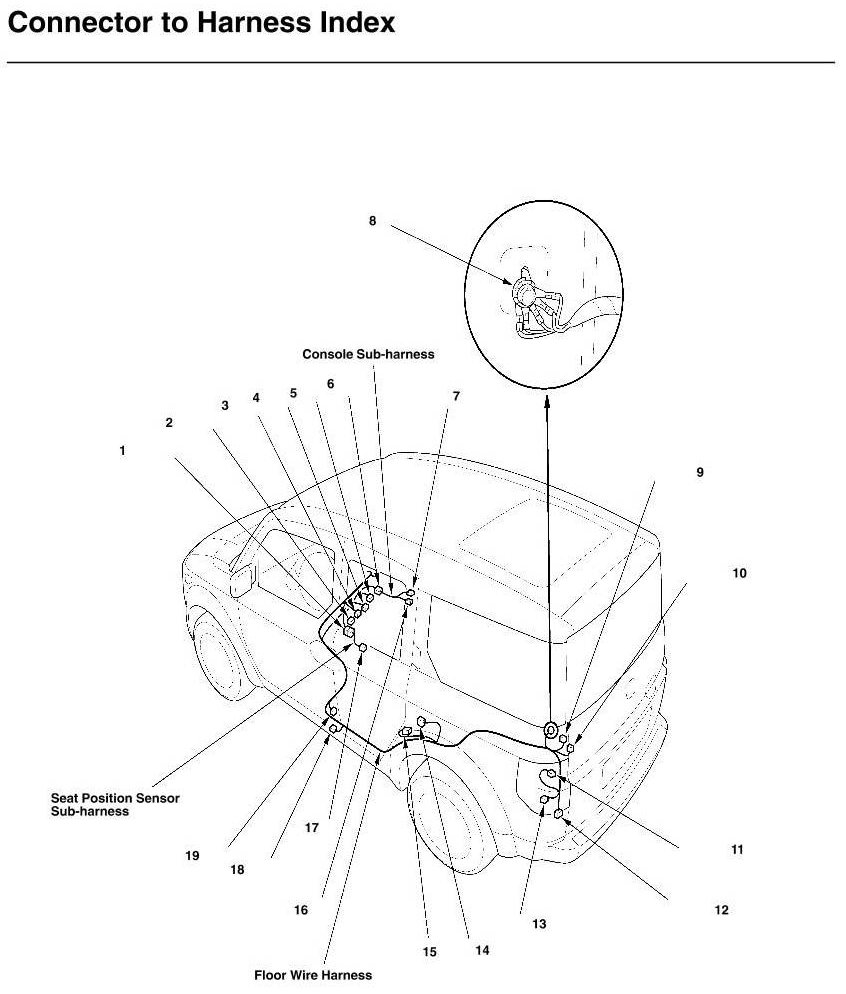

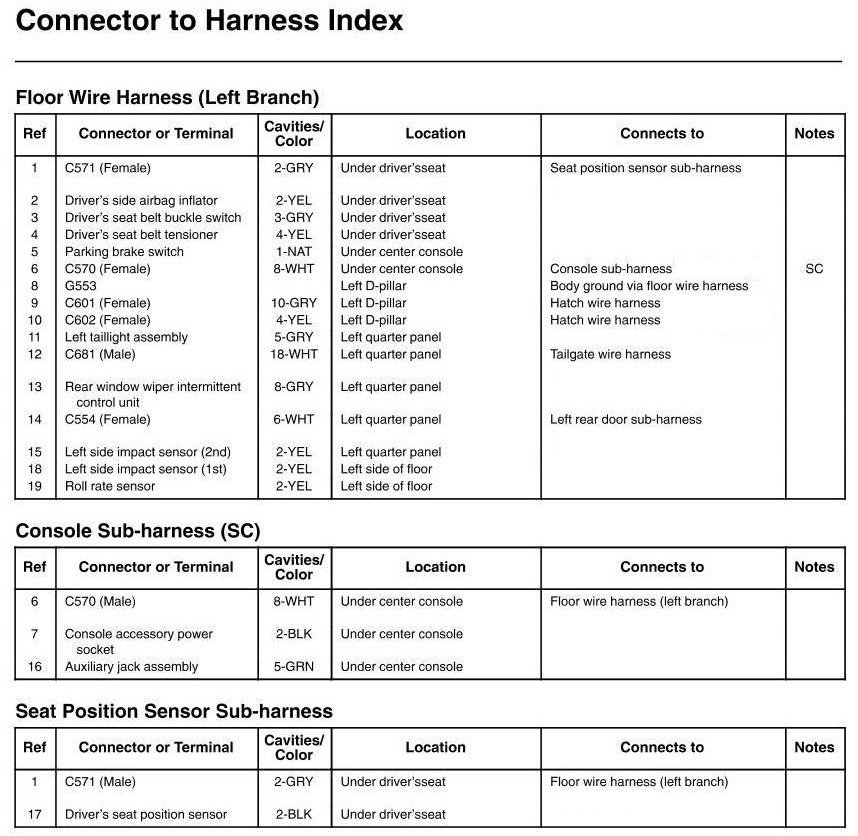

Connector to Harness Locations
