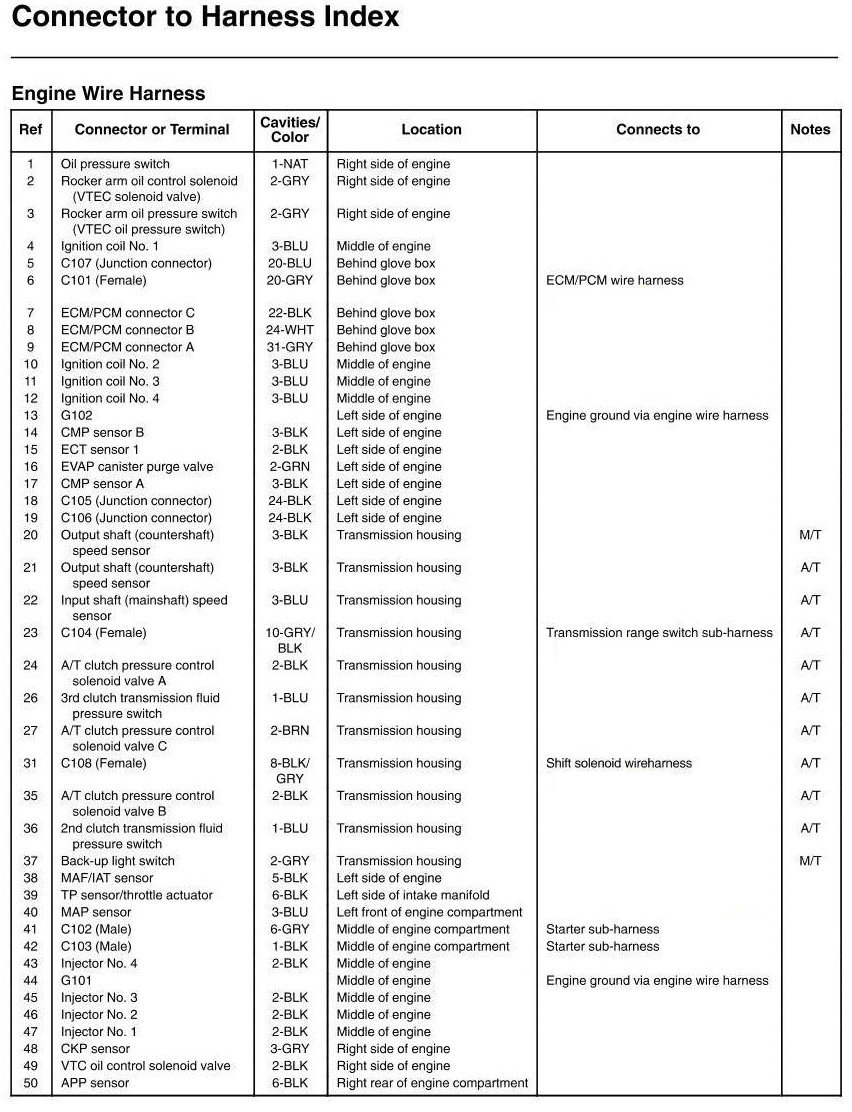

Engine Wire Harness, Transmission Range Switch Subharness, and Shift Solenoid Wire Harness Connector and Harness Locations
>>
Connector to Harness Locations
Connector to Harness Locations

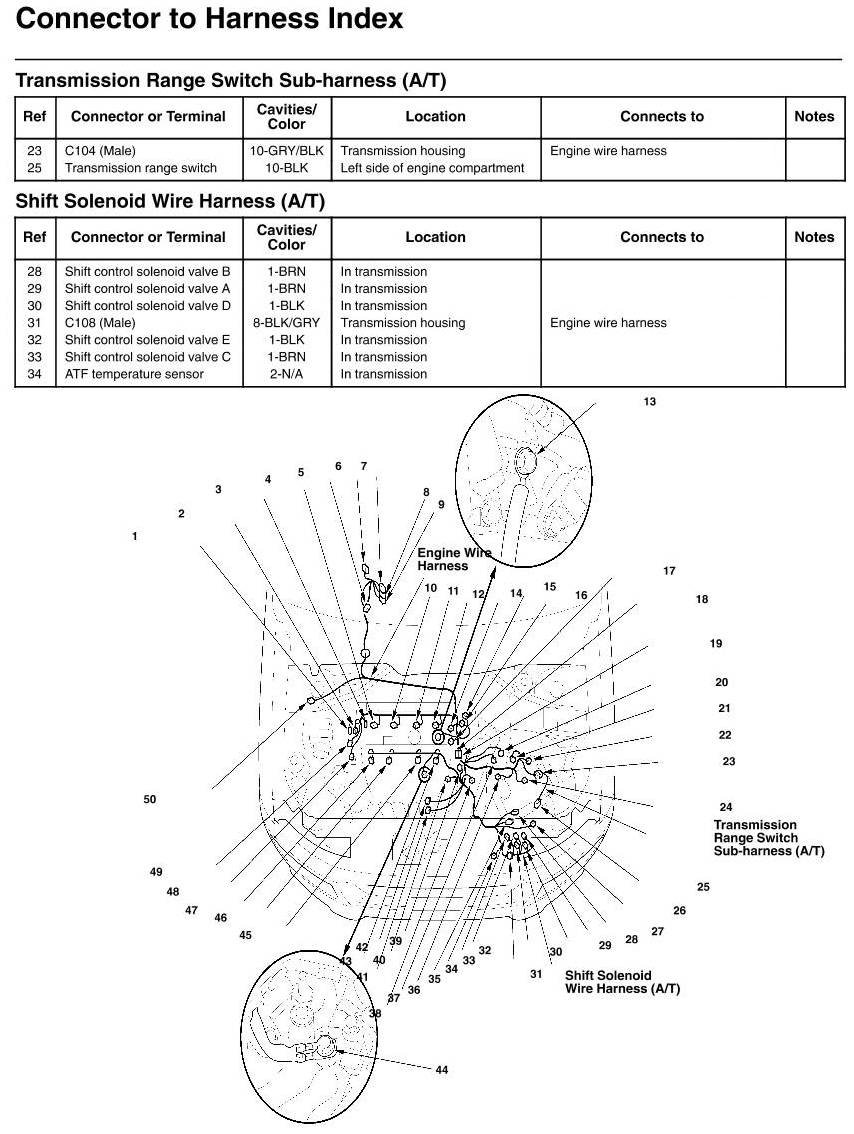

Engine Wire Harness, Transmission Range Switch Sub-harness And Shift Solenoid Wire Harness Connector And Harness Locations (A/T)
