Connectors and Harnesses

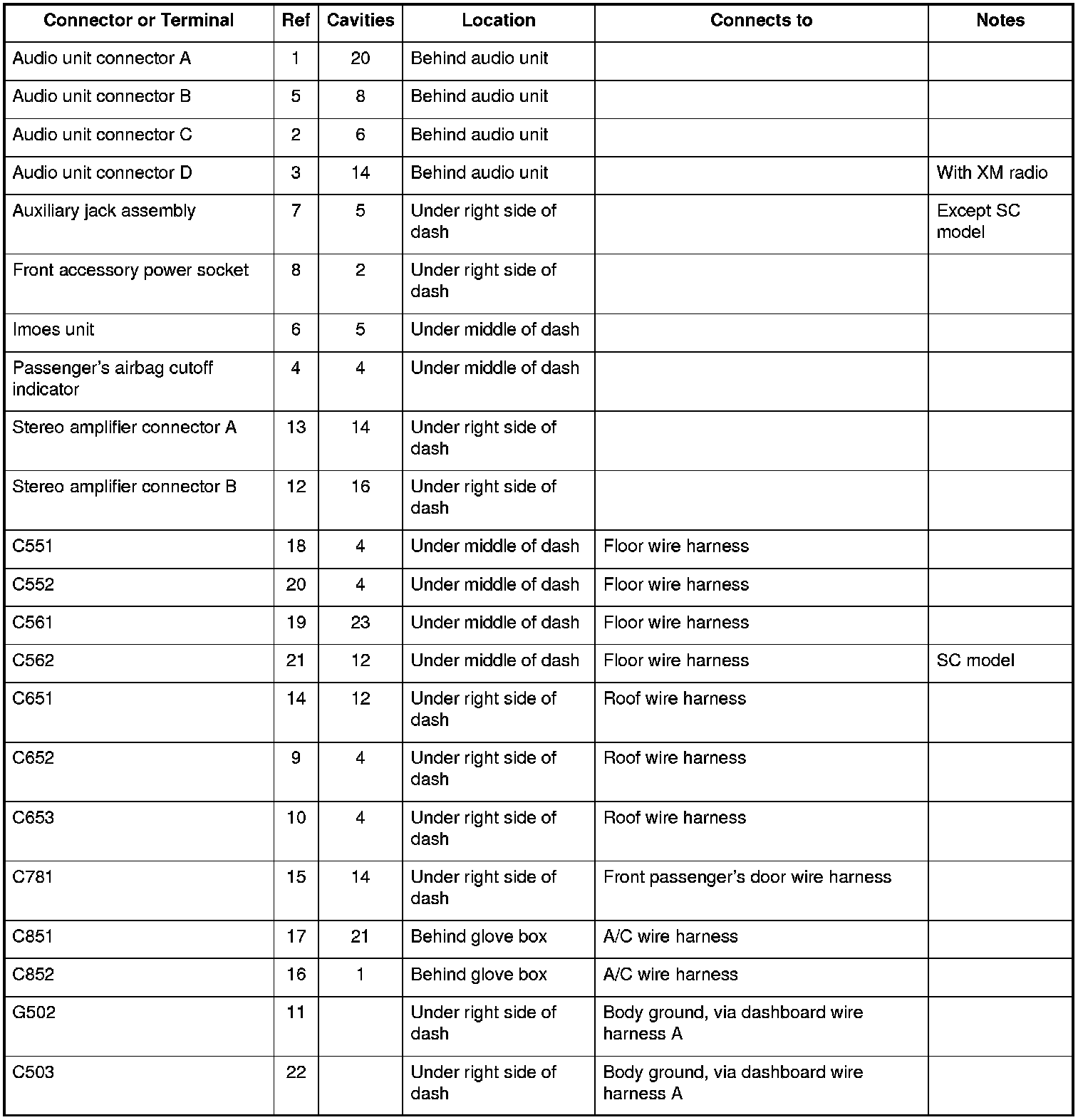

Dashboard Wire Harness A (Right Branch) Connector and Harness Locations

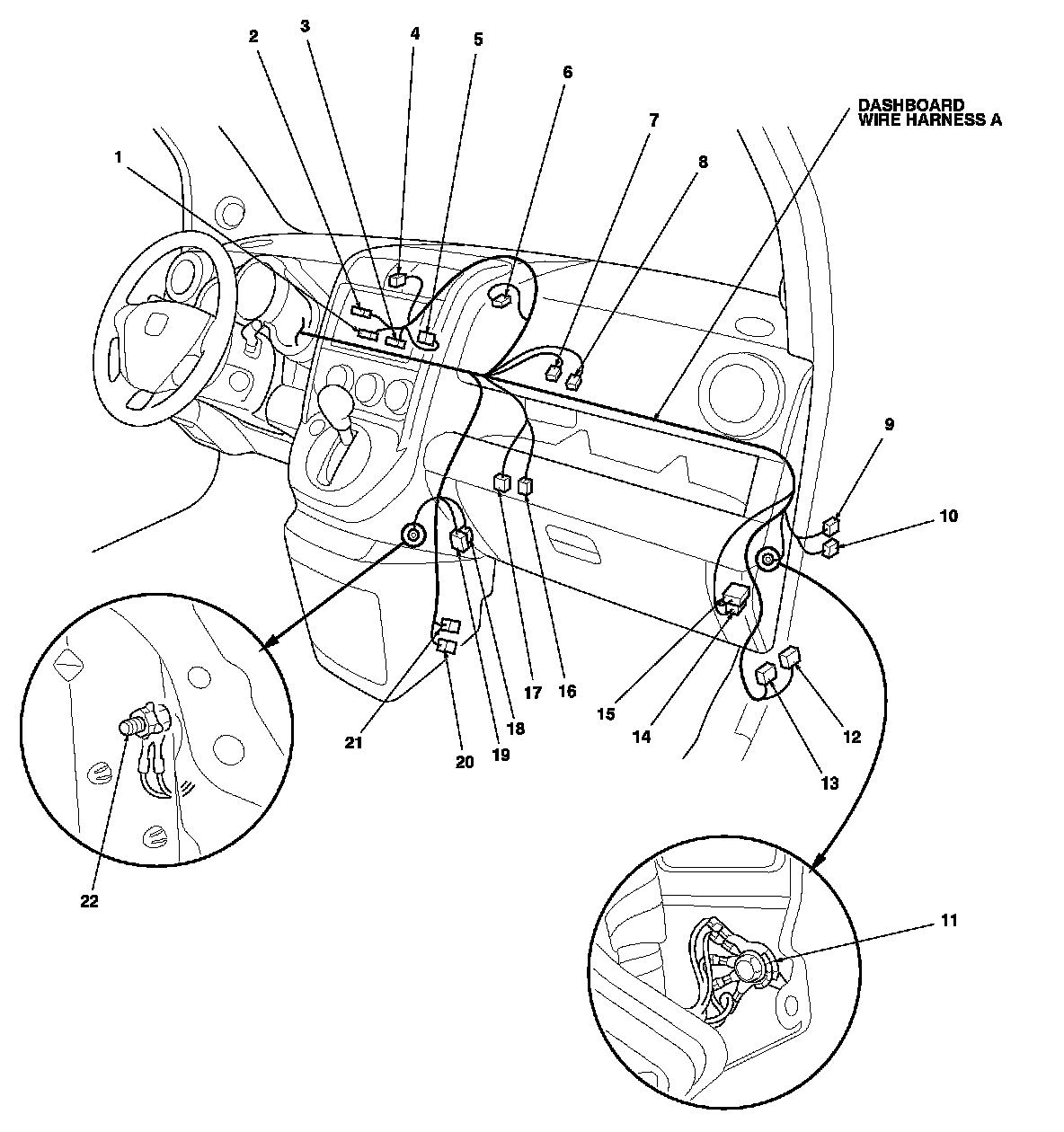

Dashboard Wire Harness A (Right branch) ('09 model without navigation system)





'09 model without navigation system
