Roof Wire Harness and Roof Subharness Connector and Harness Locations




Roof Wire Harness and Roof Subharness Connector and Harness Locations

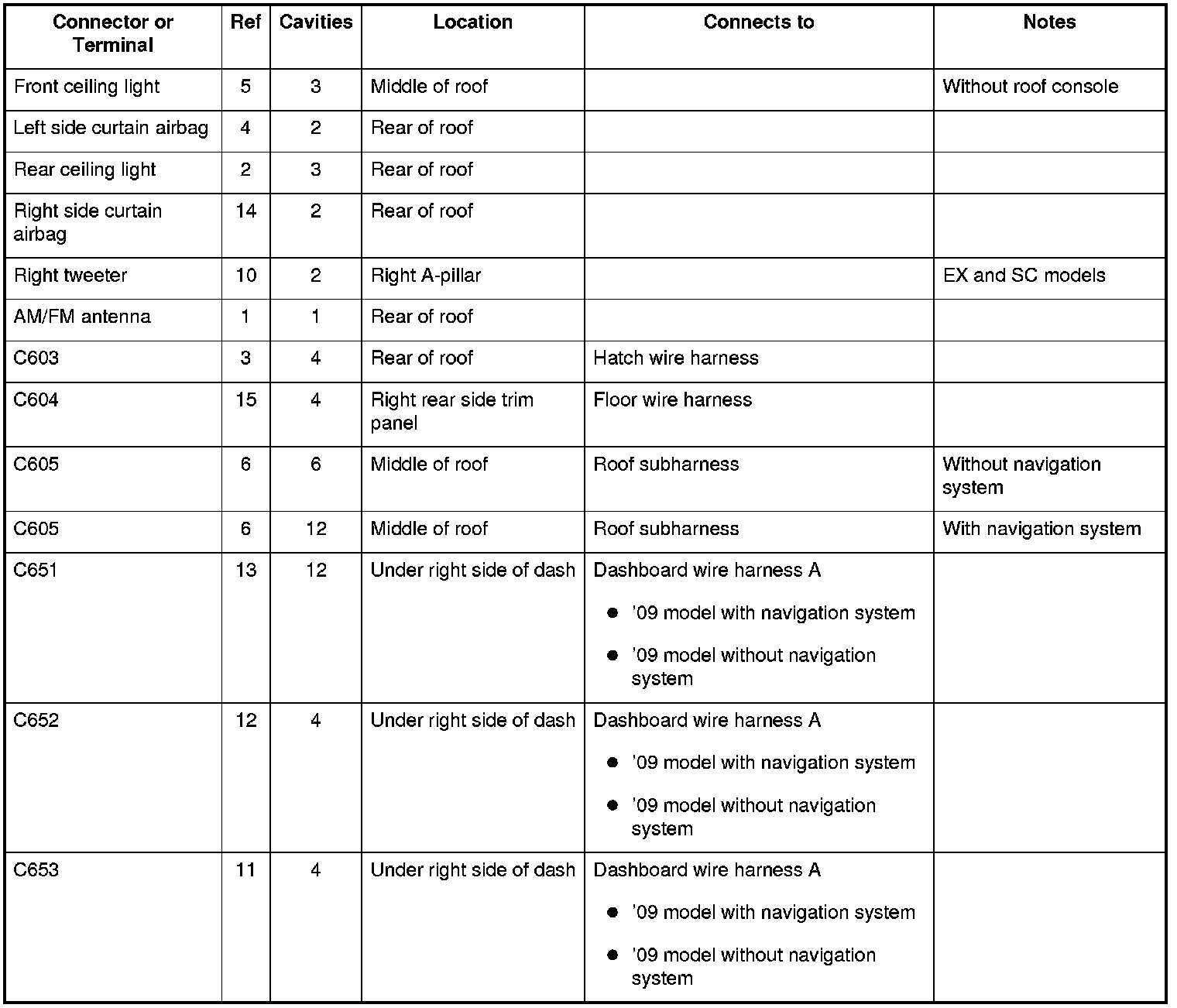

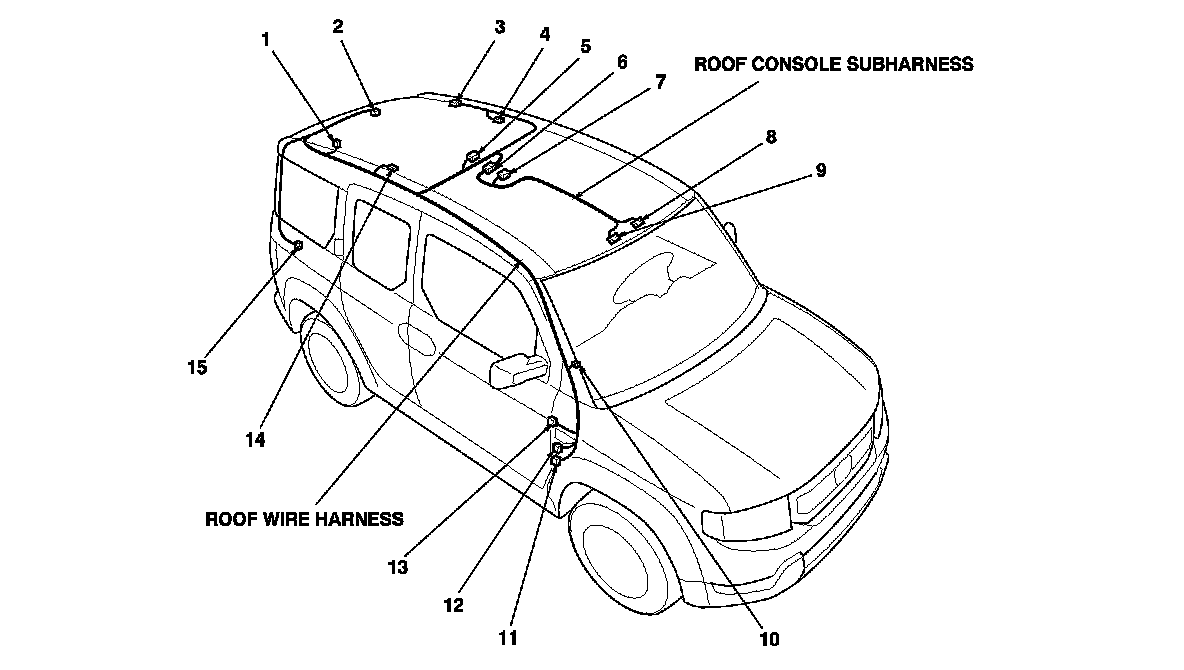

Roof Wire Harness ('09 model)





Roof Subharness ('09 model with overhead console)
