Dashboard Wire Harness B Connector And Harness Locations
>>
Connectors and Harnesses
Connectors and Harnesses

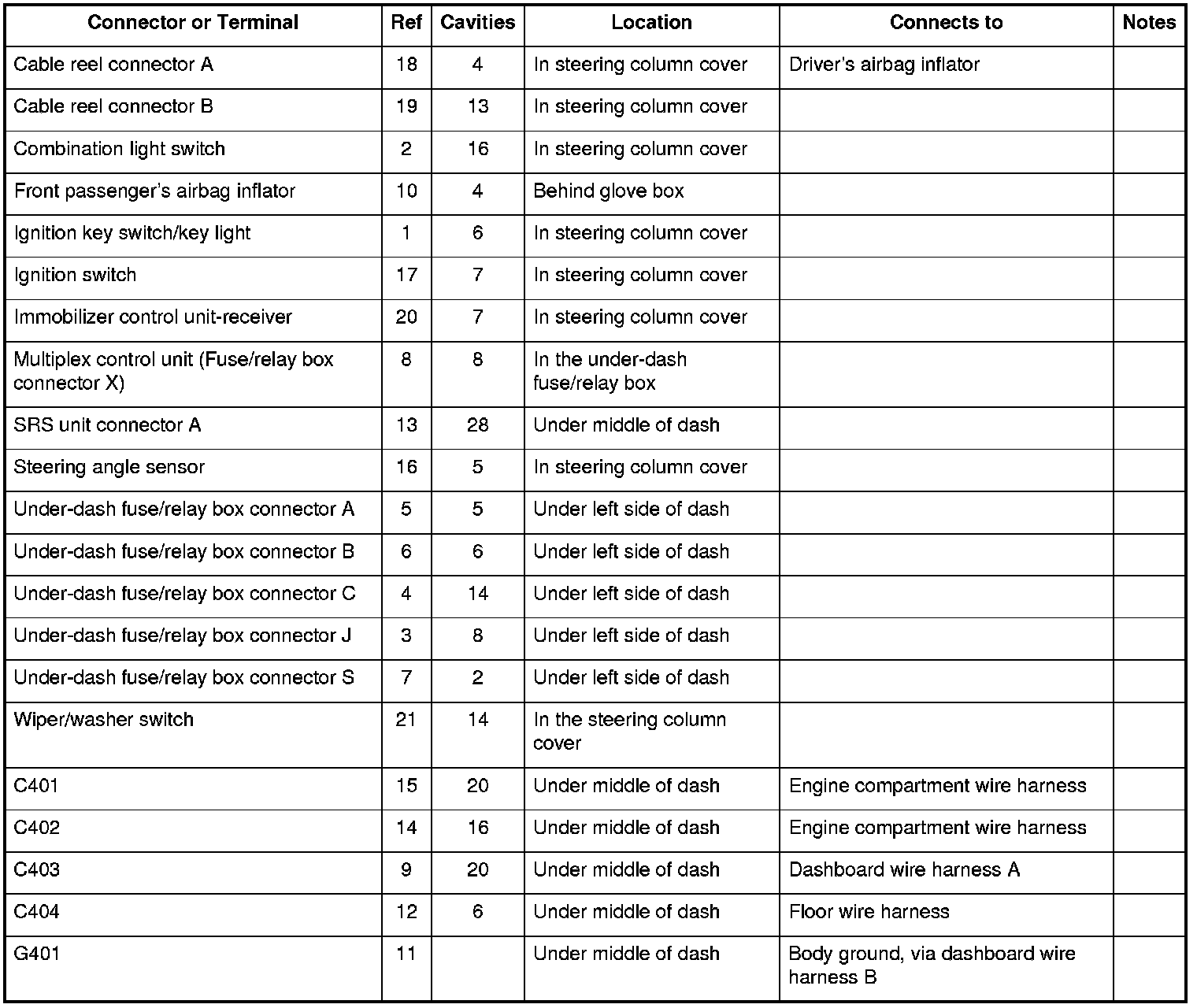

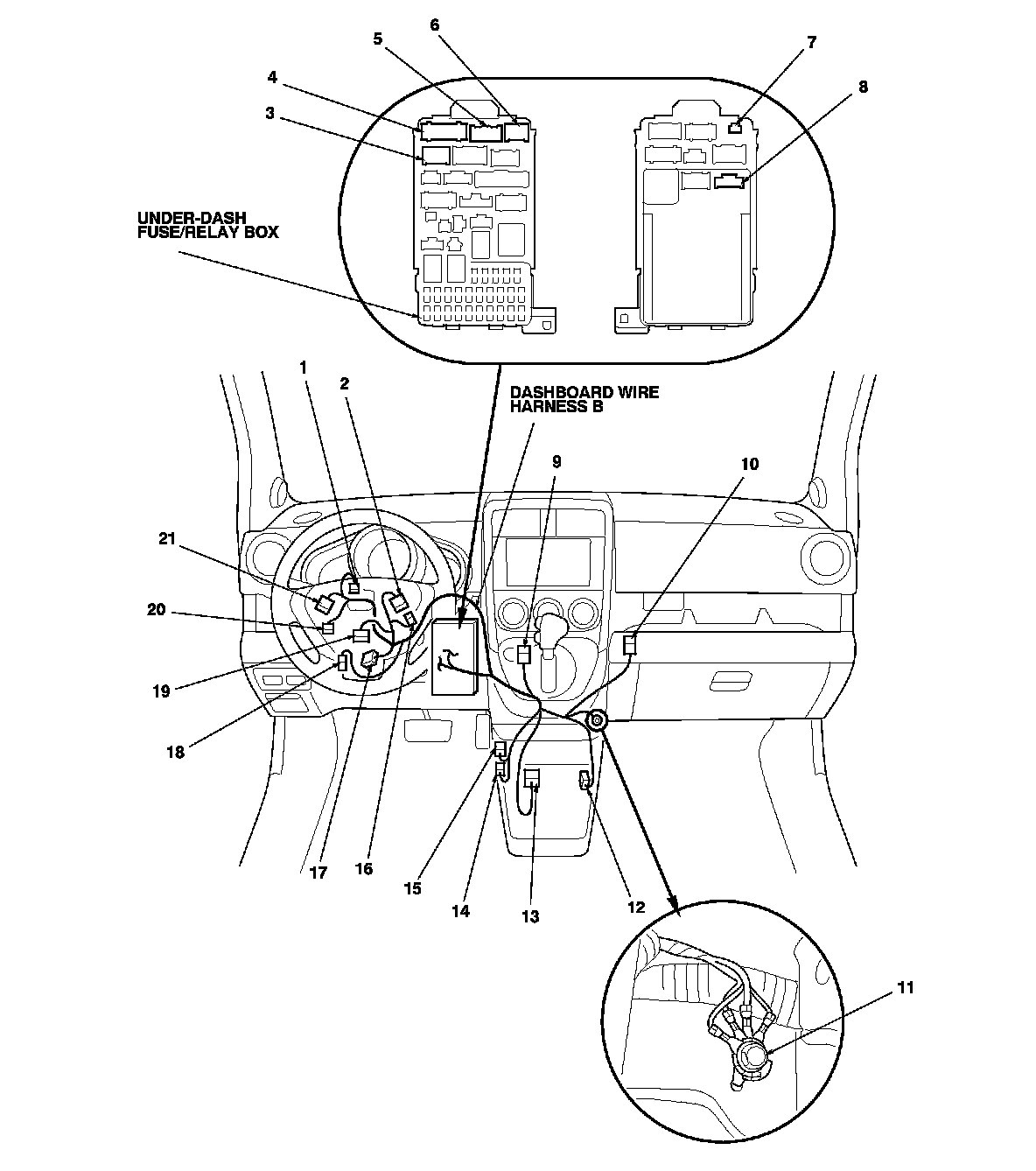

Dashboard Wire Harness B Connector and Harness Locations
Dashboard Wire Harness B ('09 model)
'09 model
