Rocker Arm, Assembly Removal

Rocker Arm, Assembly Removal

1. Remove the cylinder head cover.
2. Loosen the rocker arm adjusting screws (A).





3. Remove the camshaft holders and camshafts. To prevent damaging the camshafts, loosen the camshaft holder bolts in sequence two turns at a time, in a crisscross pattern.

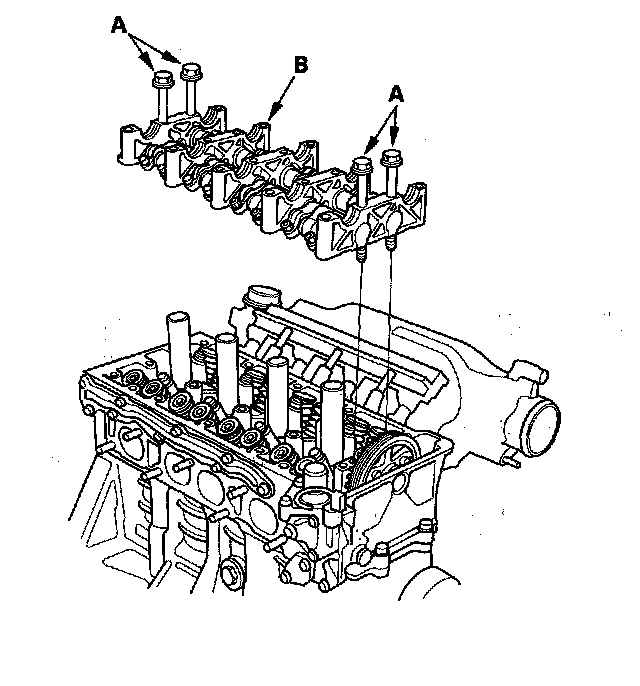

4. Insert the bolts (A) into the rocker shaft holder, then remove the rocker arm assembly (B).
