Home >> Honda >> 2008 >> S2000 L4-2.2L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Sensors and Switches - Accessories and Optional Equipment >> Remote Switch >> Locations

Remote Switch: Locations

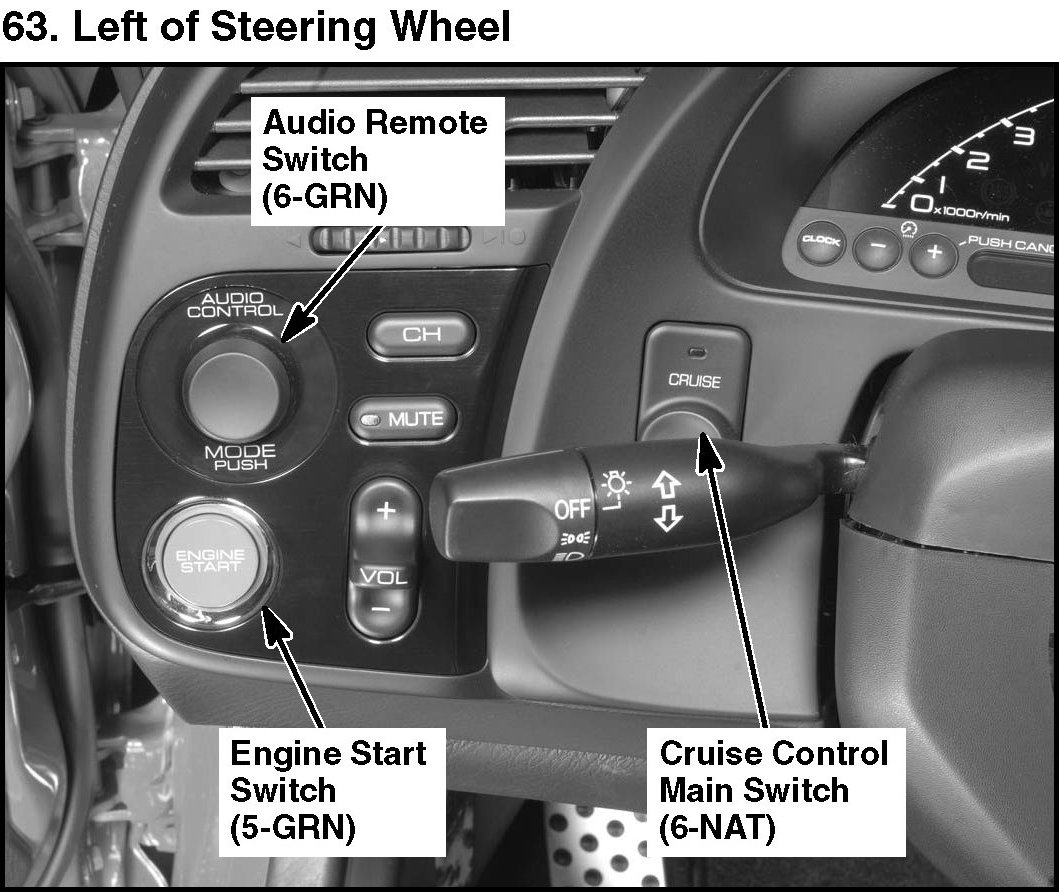

63. Left Of Steering Wheel:

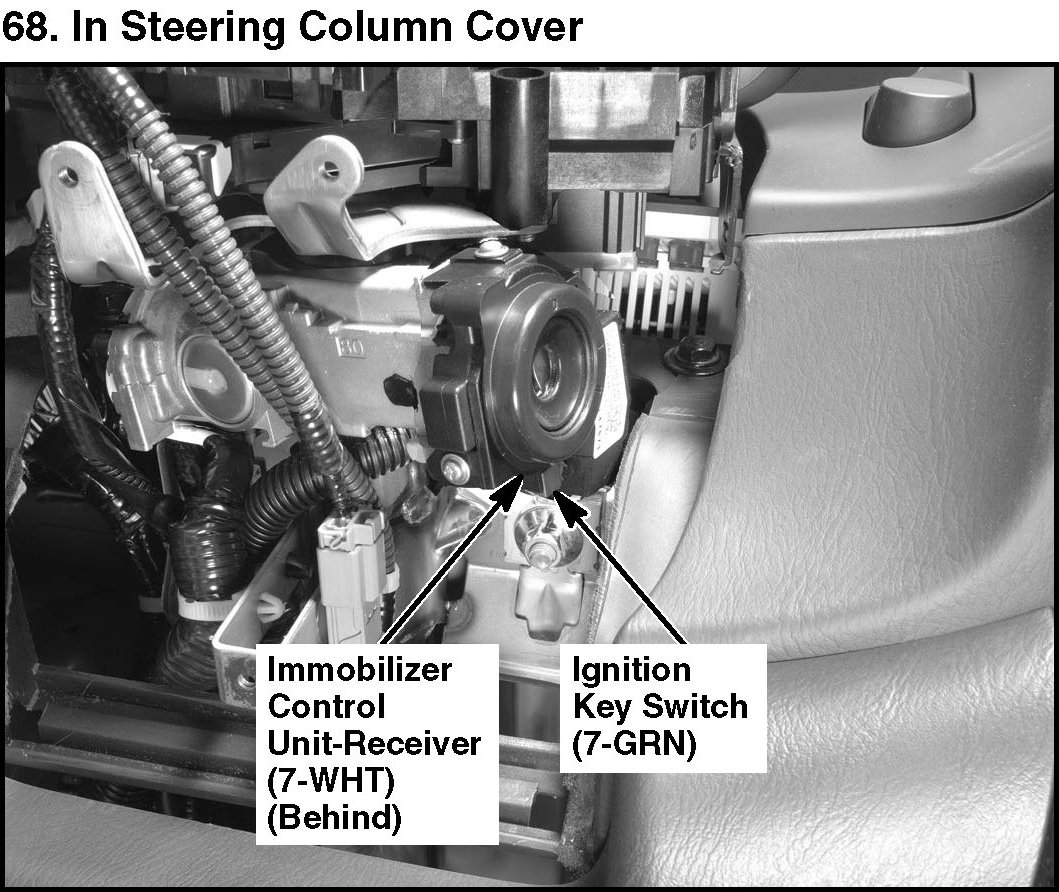

68. In Steering Column Cover:

Starting System Component Location Index:

Reminder Systems Component Location Index:
