DTC P2422 (117): Evaporative Emission (EVAP) Canister Vent Shut Valve Stuck Closed Malfunction (M/T): Notes

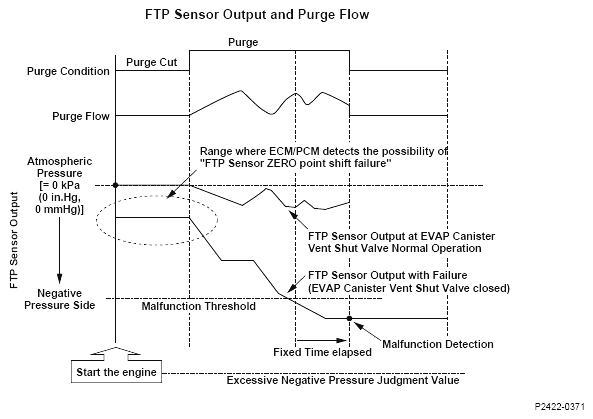

Fig 1: FTP Sensor Output And Purge Flow Diagram

G04817204

Fig 2: Malfunction Judgment Flow Chart

G04818035
