Circuit Diagram

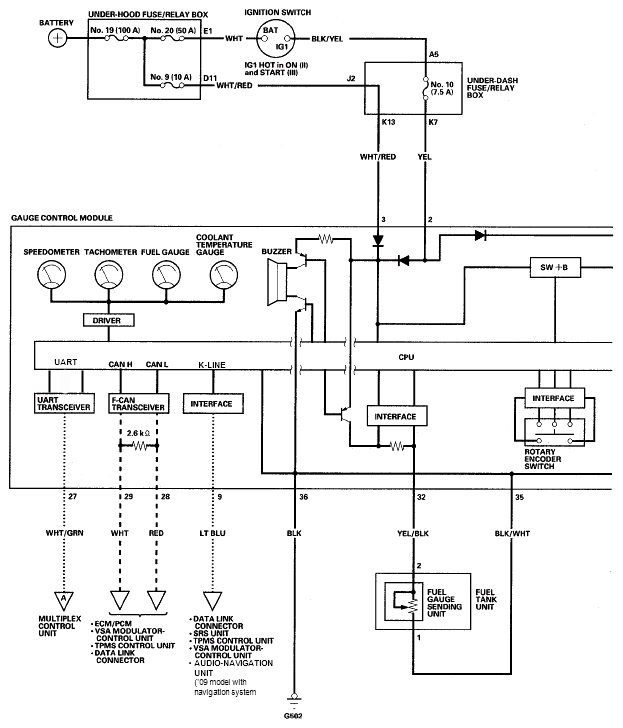

Fig 1: Identifying Gauges - Circuit Diagram (1 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

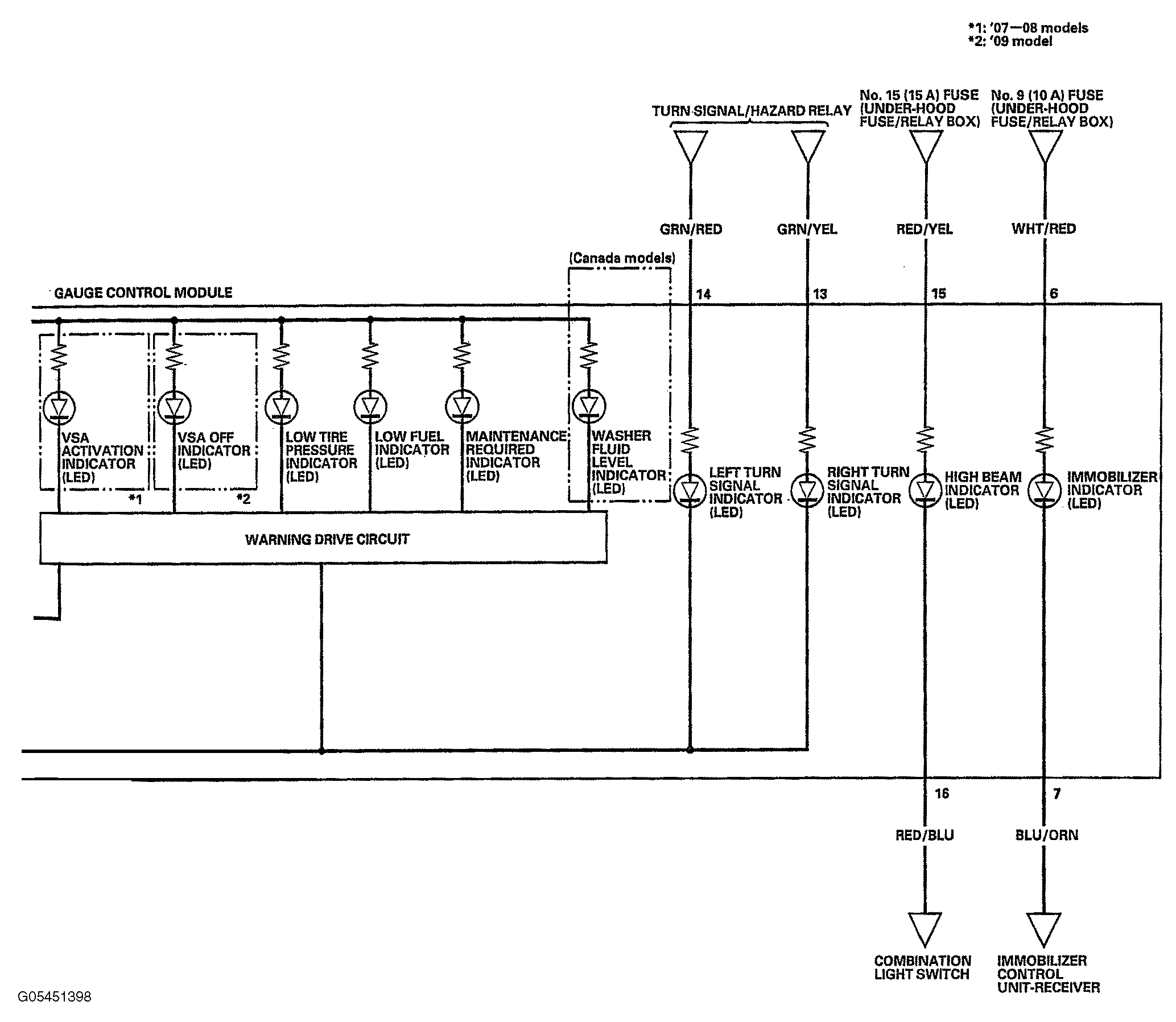

Fig 2: Identifying Gauges - Circuit Diagram (2 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

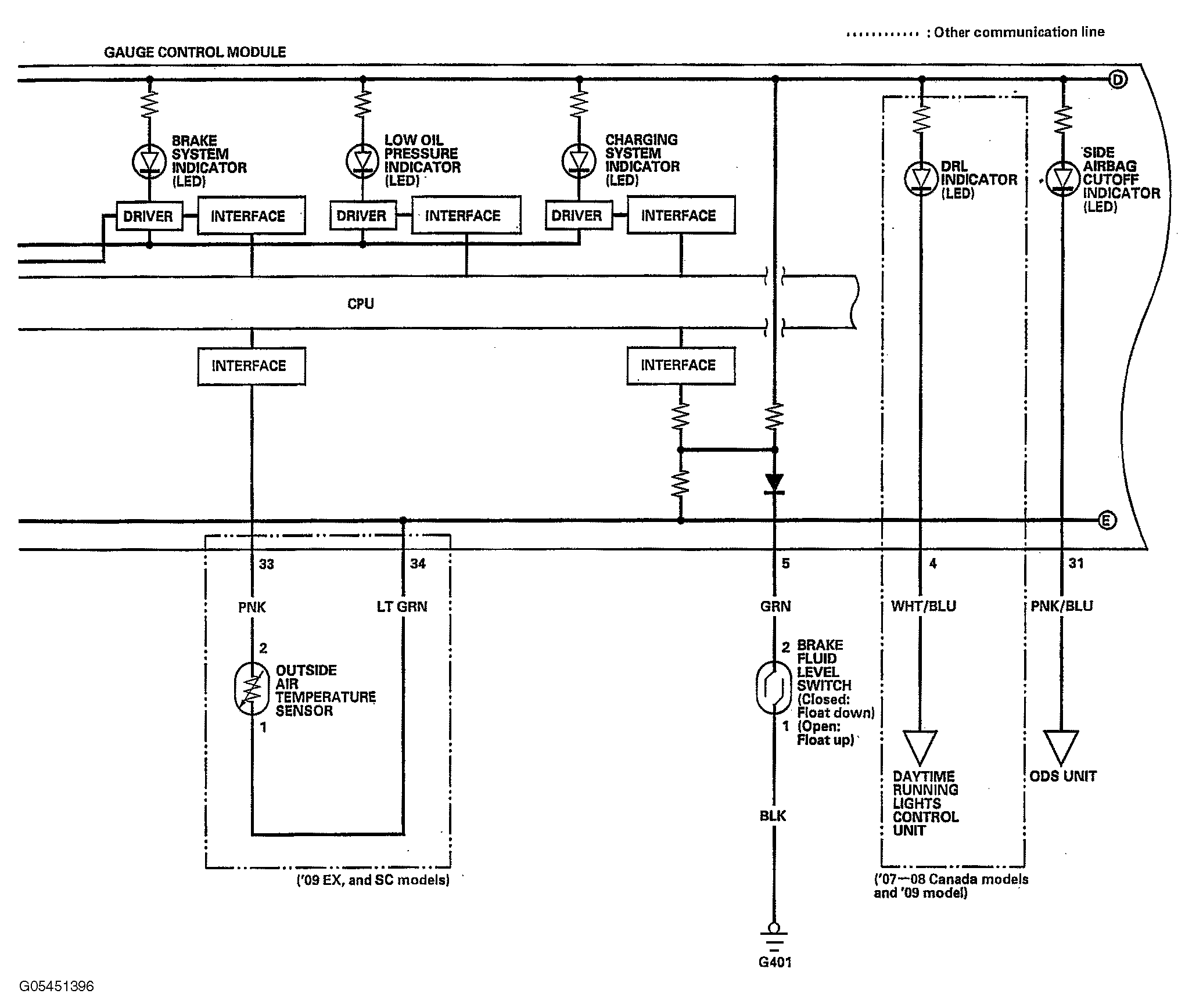

Fig 3: Identifying Gauges - Circuit Diagram (3 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

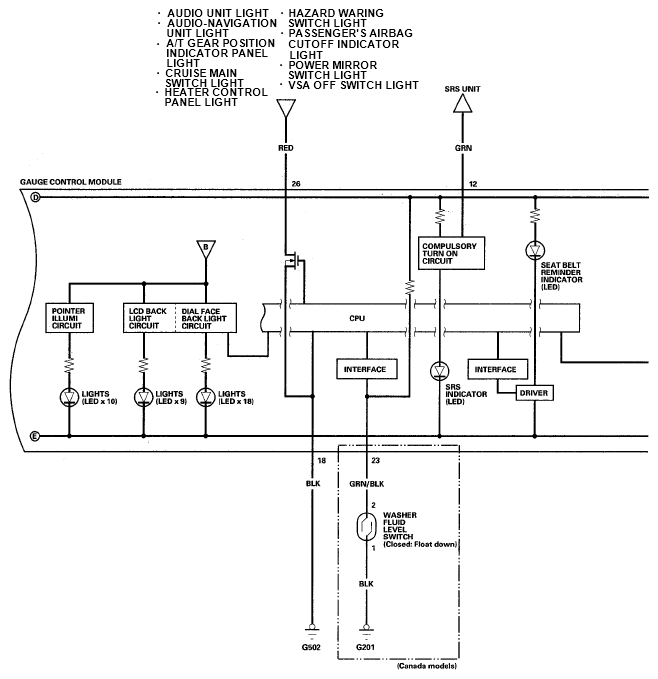

Fig 4: Identifying Gauges - Circuit Diagram (4 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

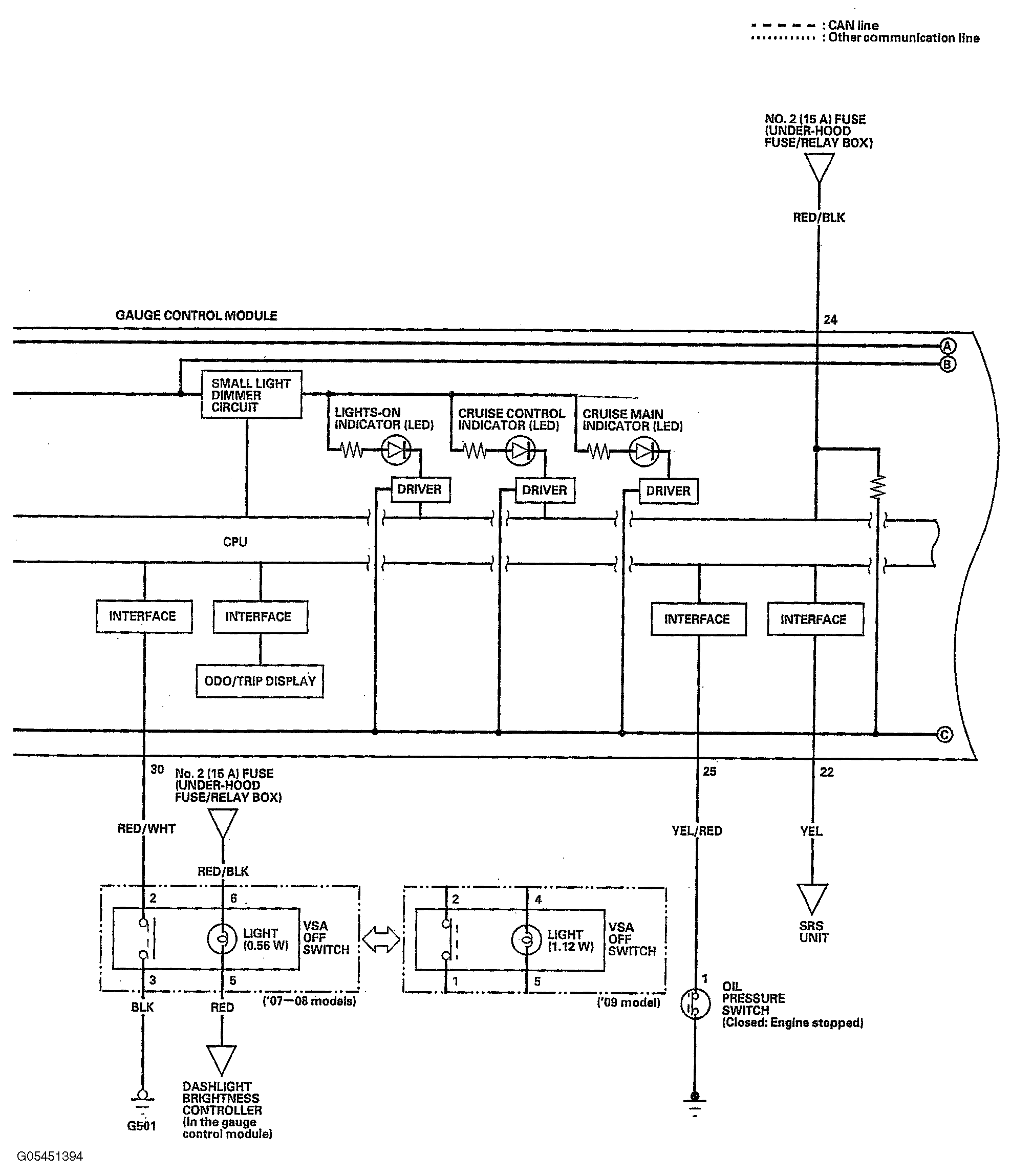

Fig 5: Identifying Gauges - Circuit Diagram (5 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

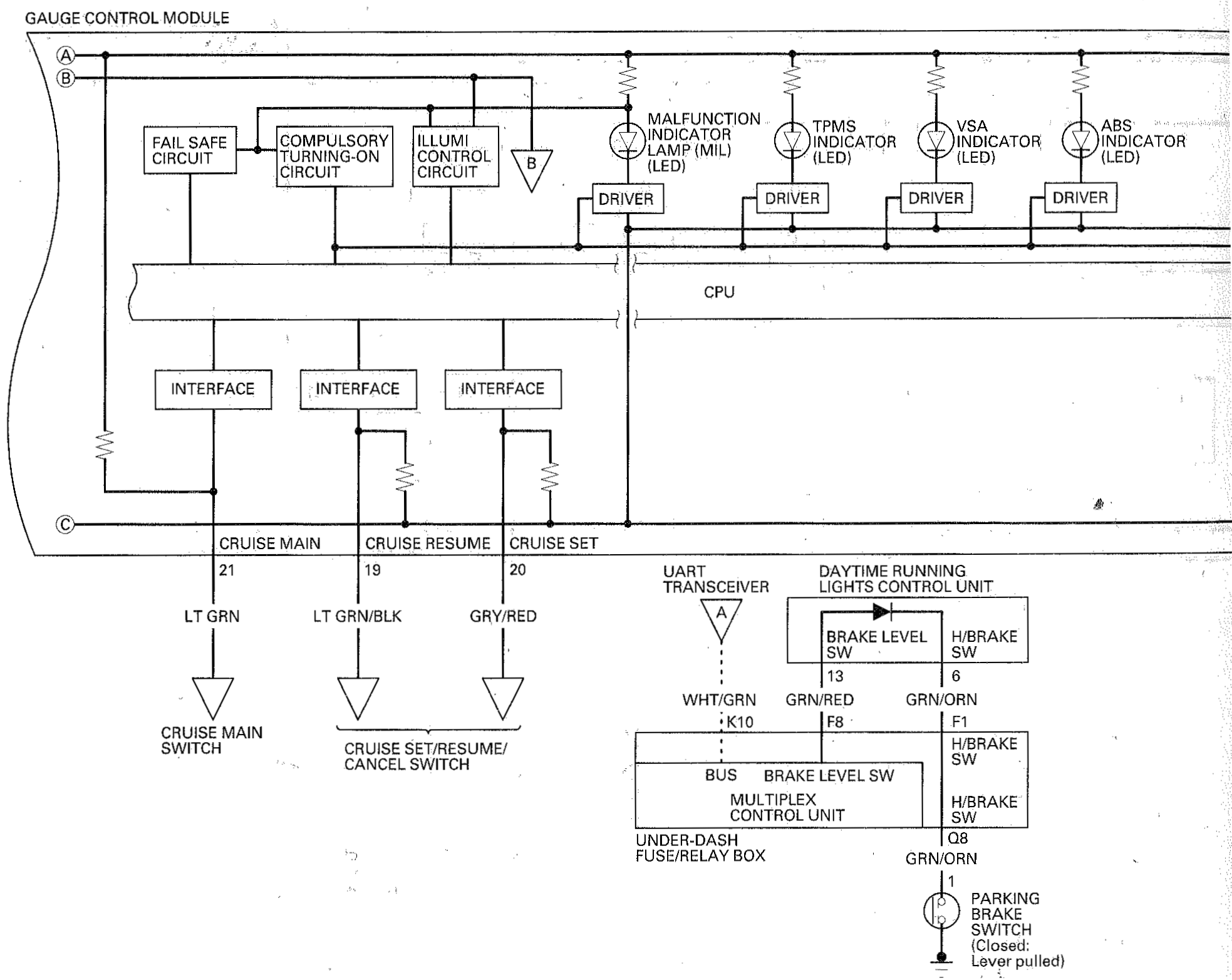

Fig 6: Identifying Gauges - Circuit Diagram (6 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
