Oil Pressure Sender: Locations

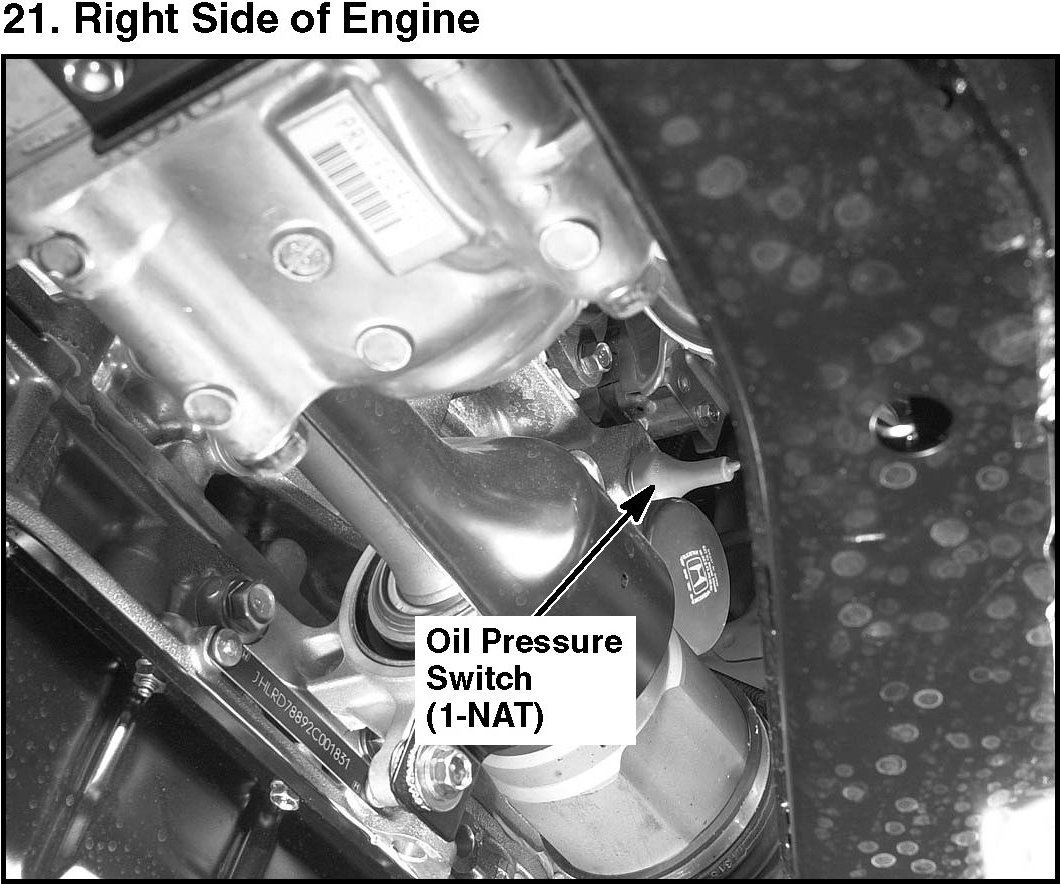

21. Right Side Of Engine:

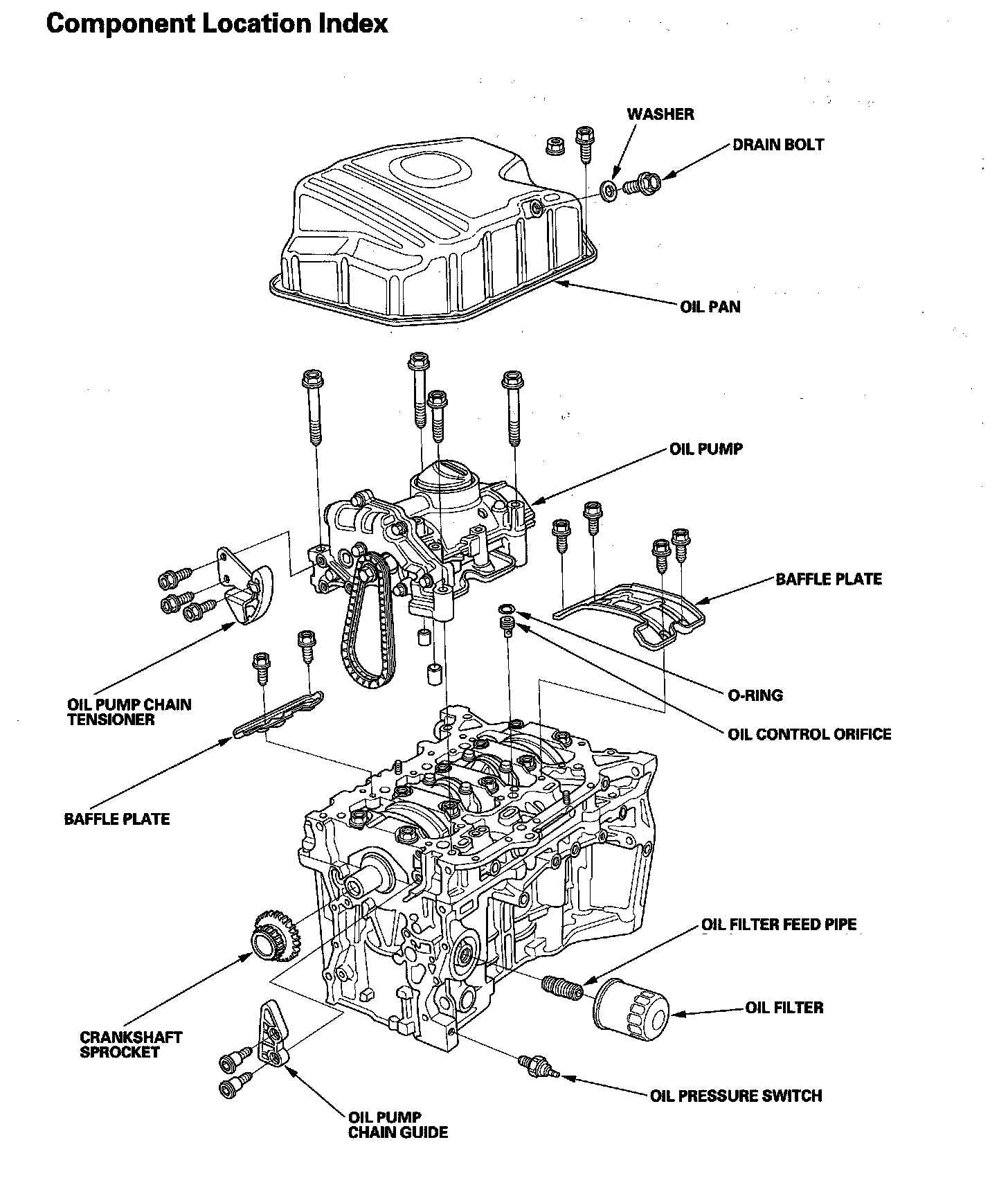

Engine Lubrication Component Location Index:



Gauges Component Location Index:
