Home >> Honda >> 2008 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Brakes and Traction Control >> Sensors and Switches - Brakes and Traction Control >> Parking Brake Warning Switch >> Locations

Parking Brake Warning Switch: Locations

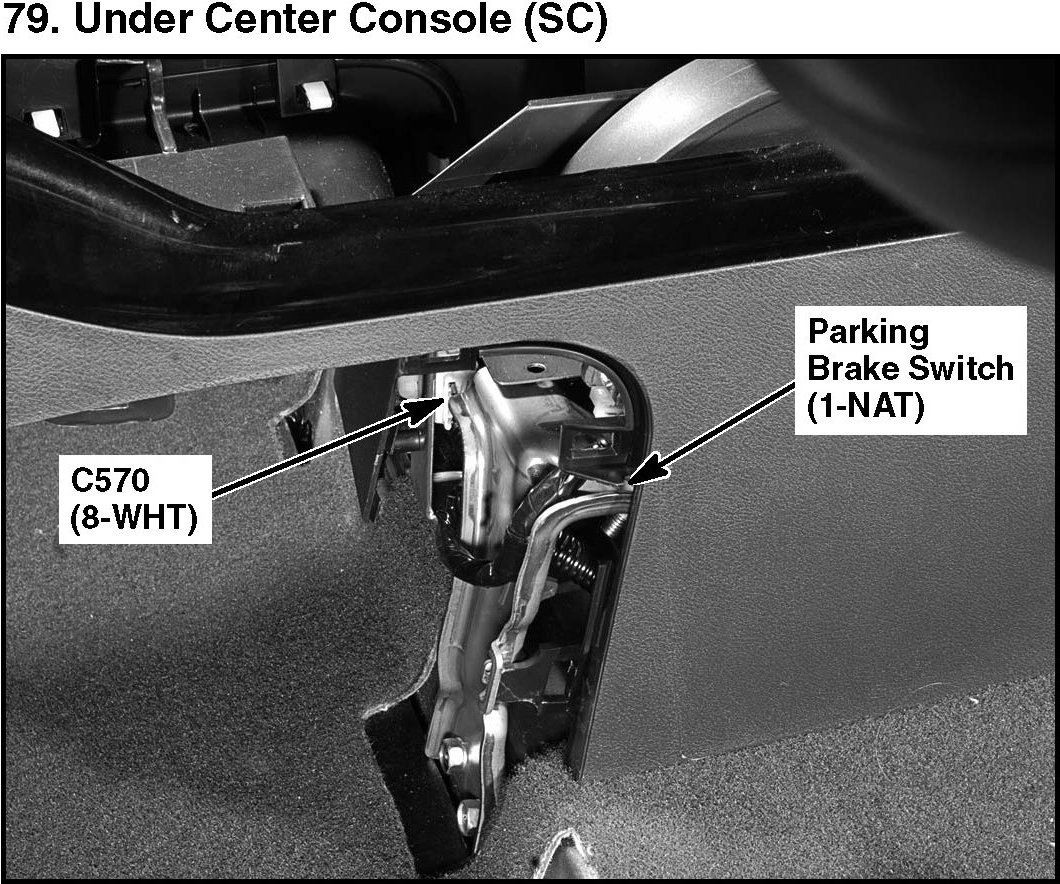

79. Under Center Console (SC):

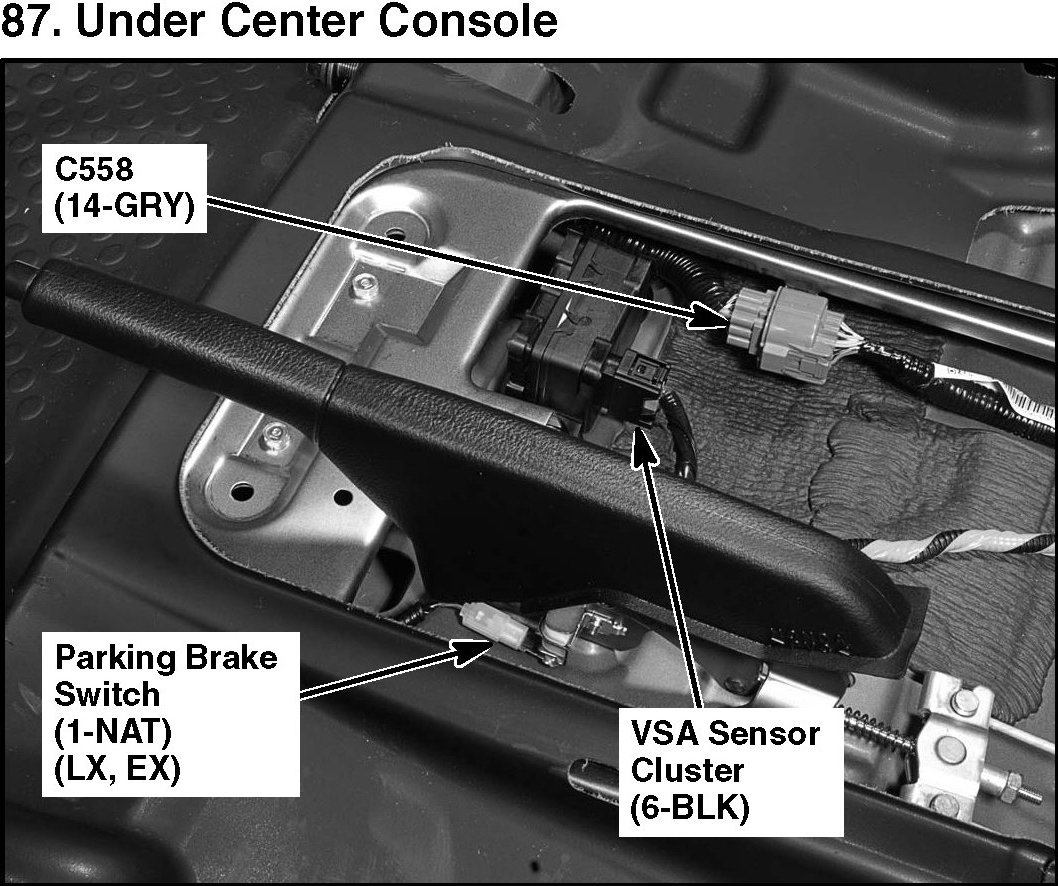

87. Under Center Console:



Gauges Component Location Index:
