Home >> Honda >> 2008 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Amplifier >> Diagrams

Amplifier: Diagrams

240. Stereo Amplifier (EX, SC):

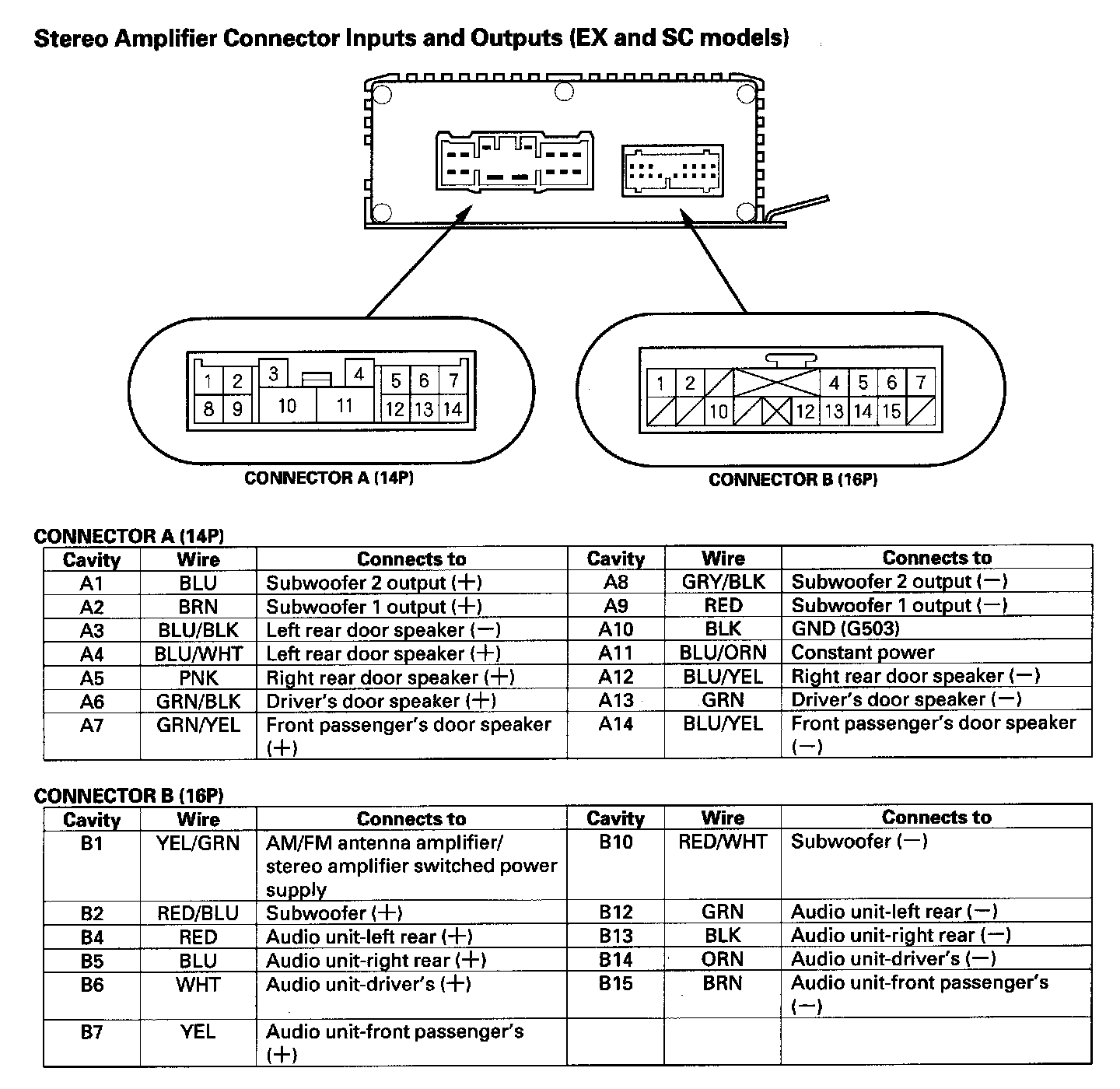

Stereo Amplifier Connector Inputs And Outputs (EX And SC Models):
