Connector ID By Location on Harness
>>
Rear Wire Harness (Right Branch)
Rear Wire Harness (Right Branch)

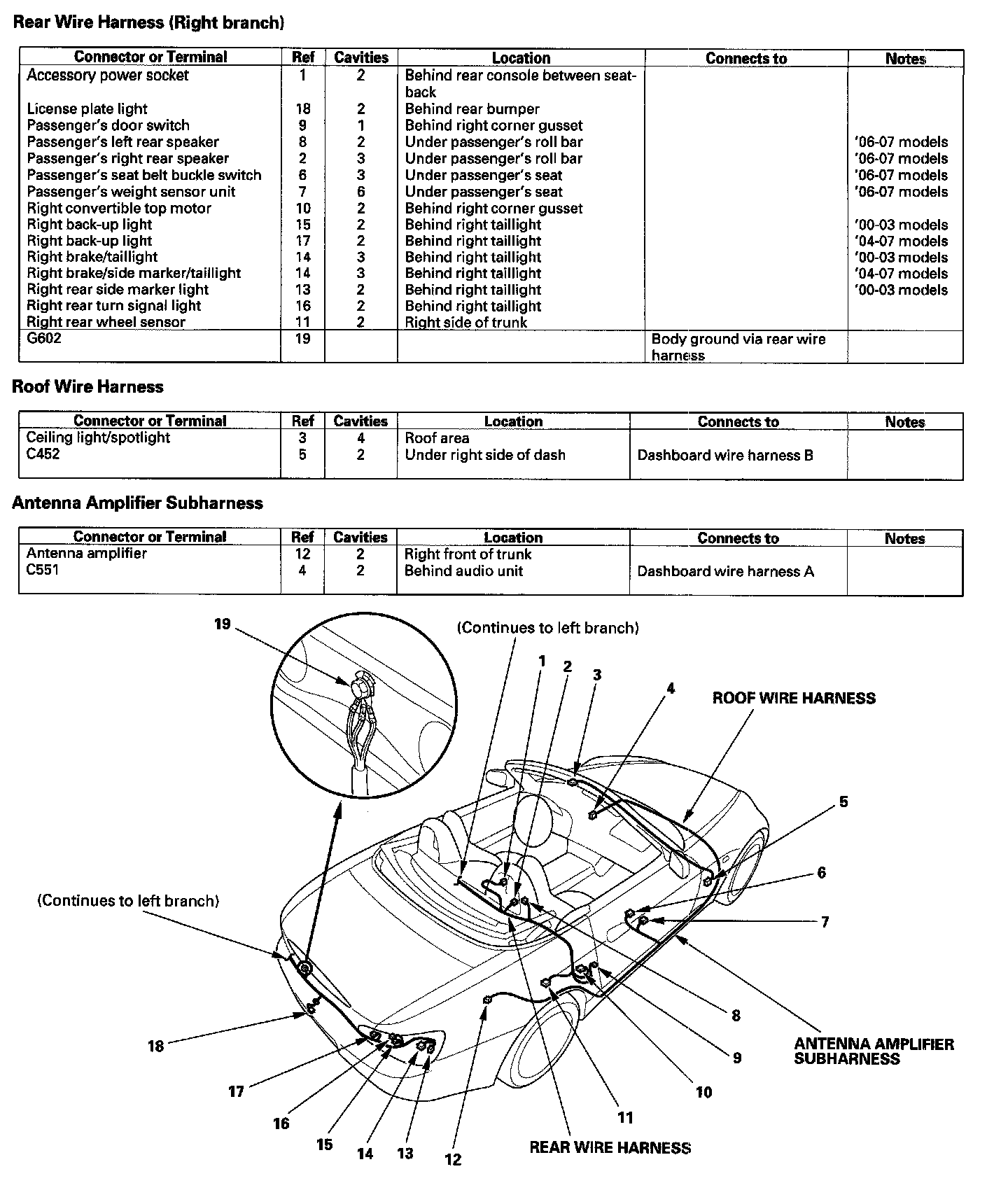

Rear Wire Harness (Right Branch):
Rear Wire Harness (Right Branch) / Roof Wire Harness / Antenna Amplifier Subharness:
