Dashboard Wire Harness B (Right Branch)
Dashboard Wire Harness B (Right Branch)

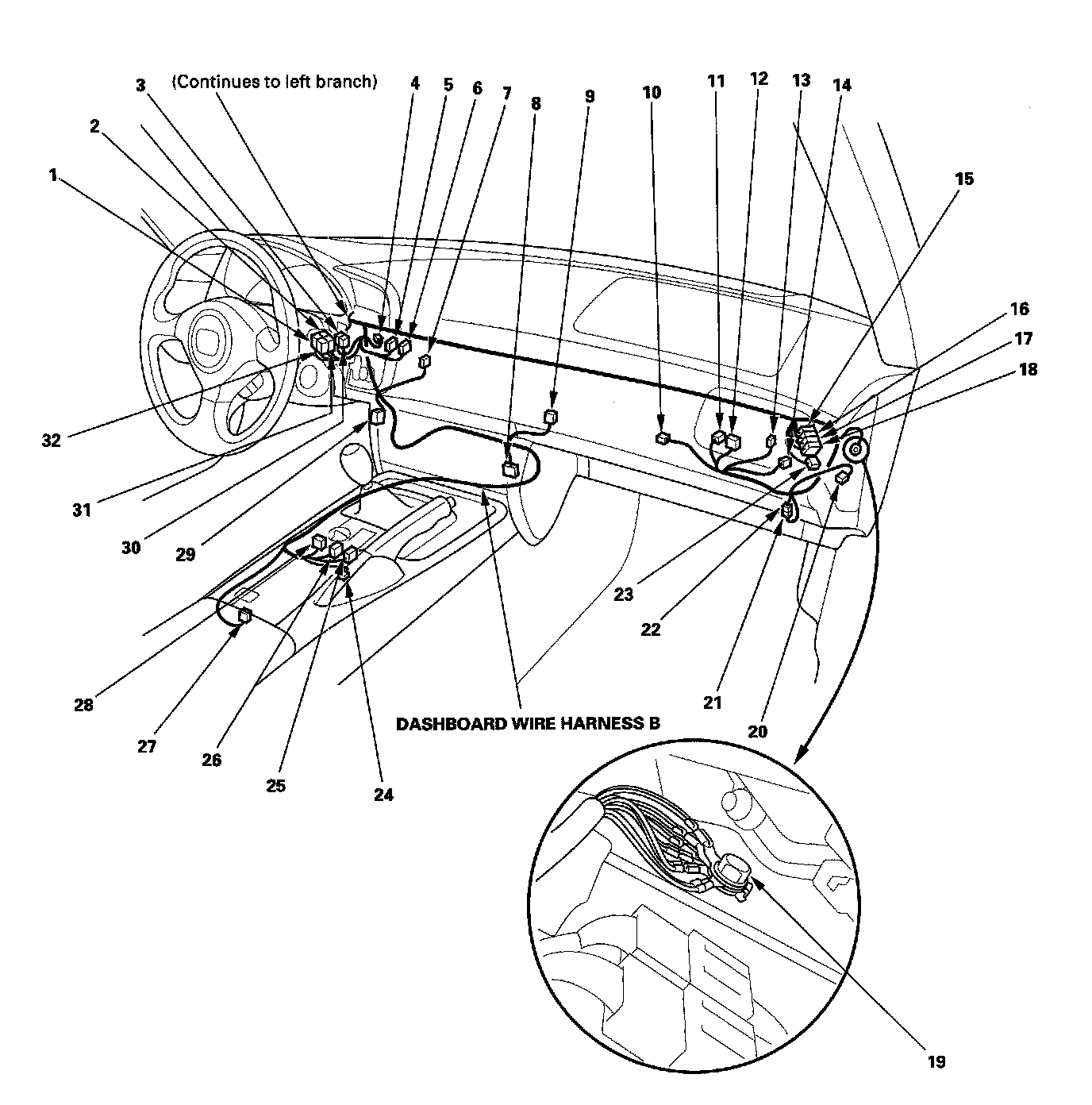

Harness Location View:

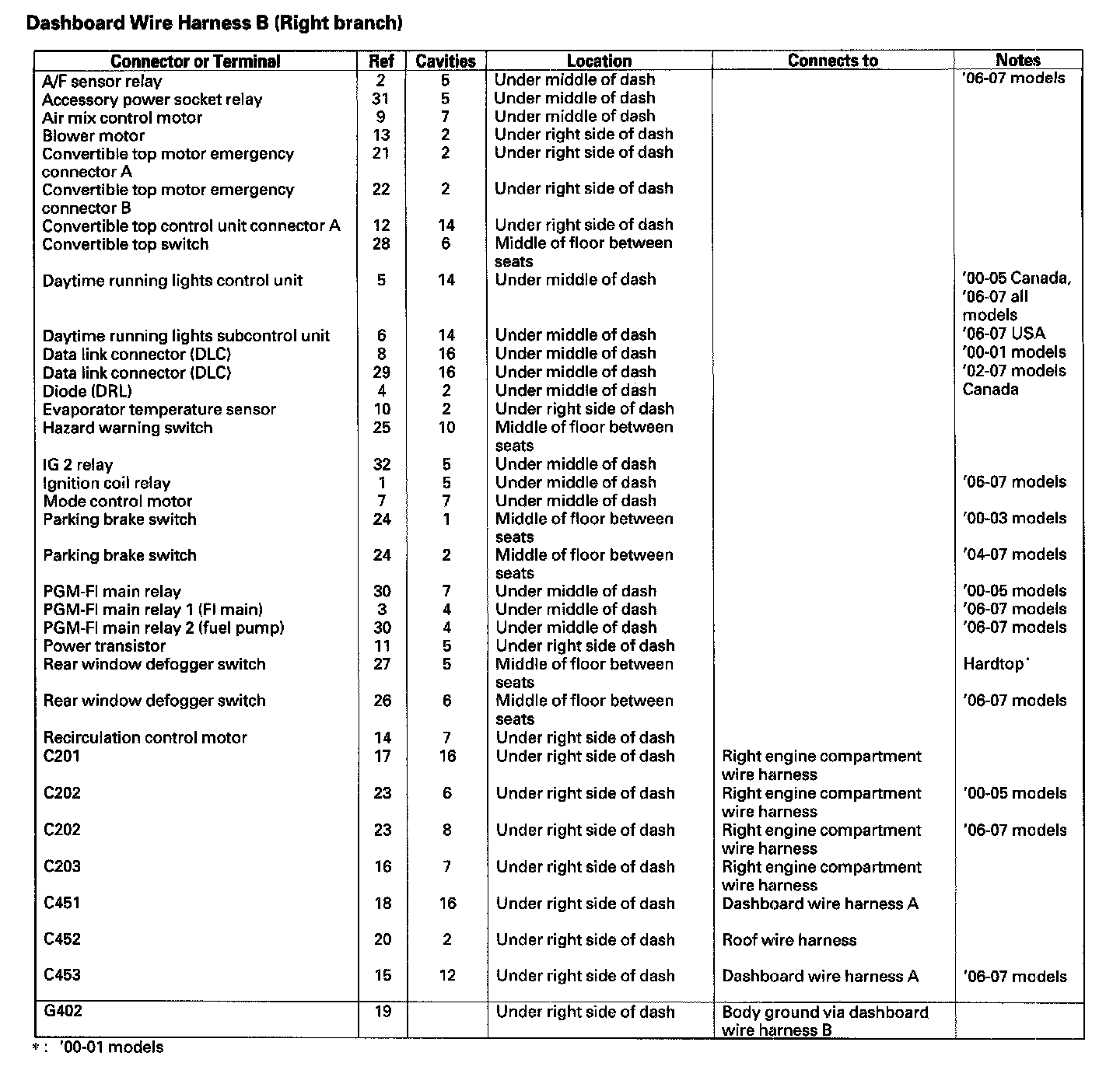

Dashboard Wire Harness B (Right Branch):
Harness Location View:
Dashboard Wire Harness B (Right Branch):
