Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Sensors and Switches - Accessories and Optional Equipment >> Remote Switch >> Locations

Remote Switch: Locations

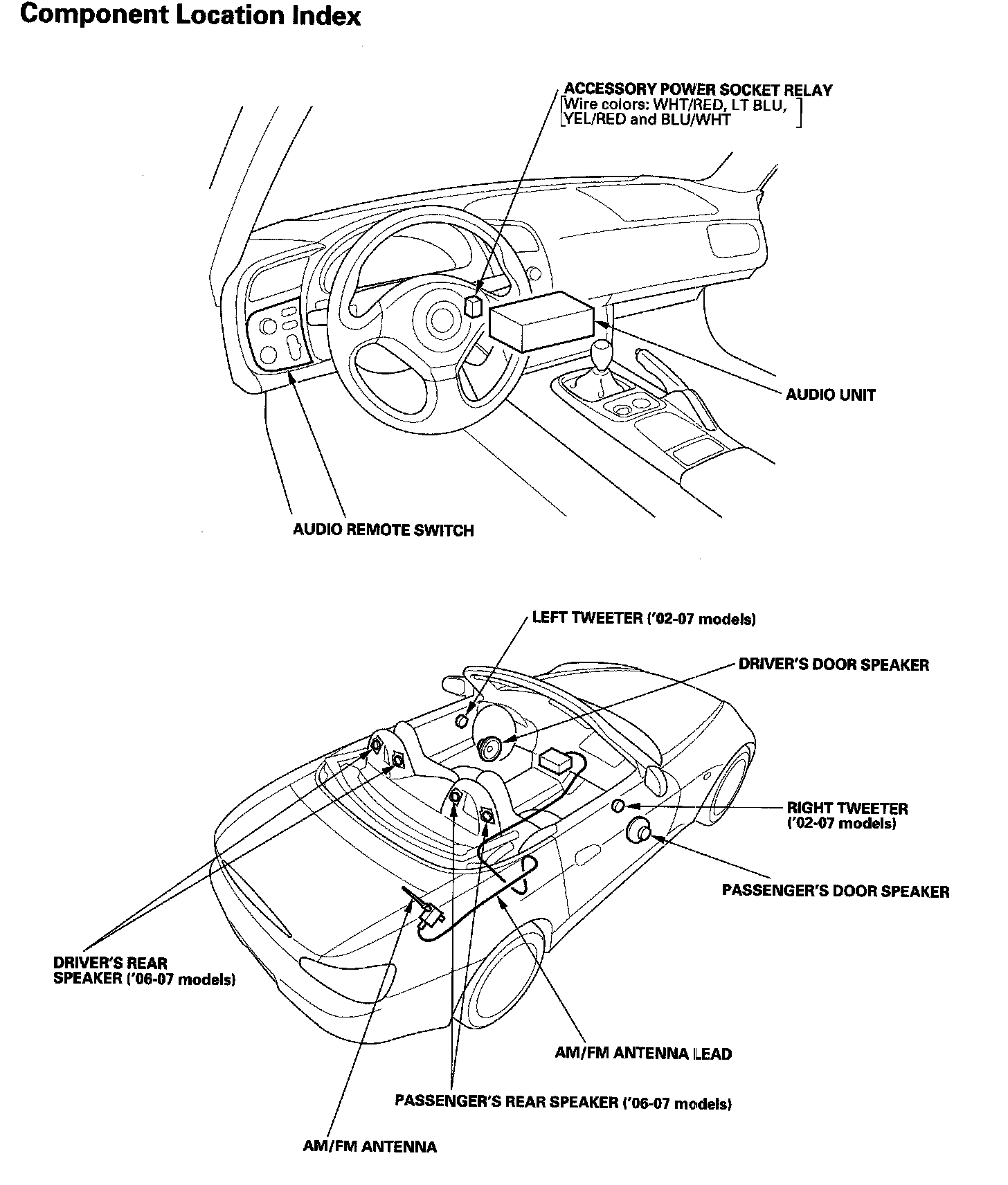

Audio System Component Location Index:

Relay And Control Unit Locations Dashboard And Door:

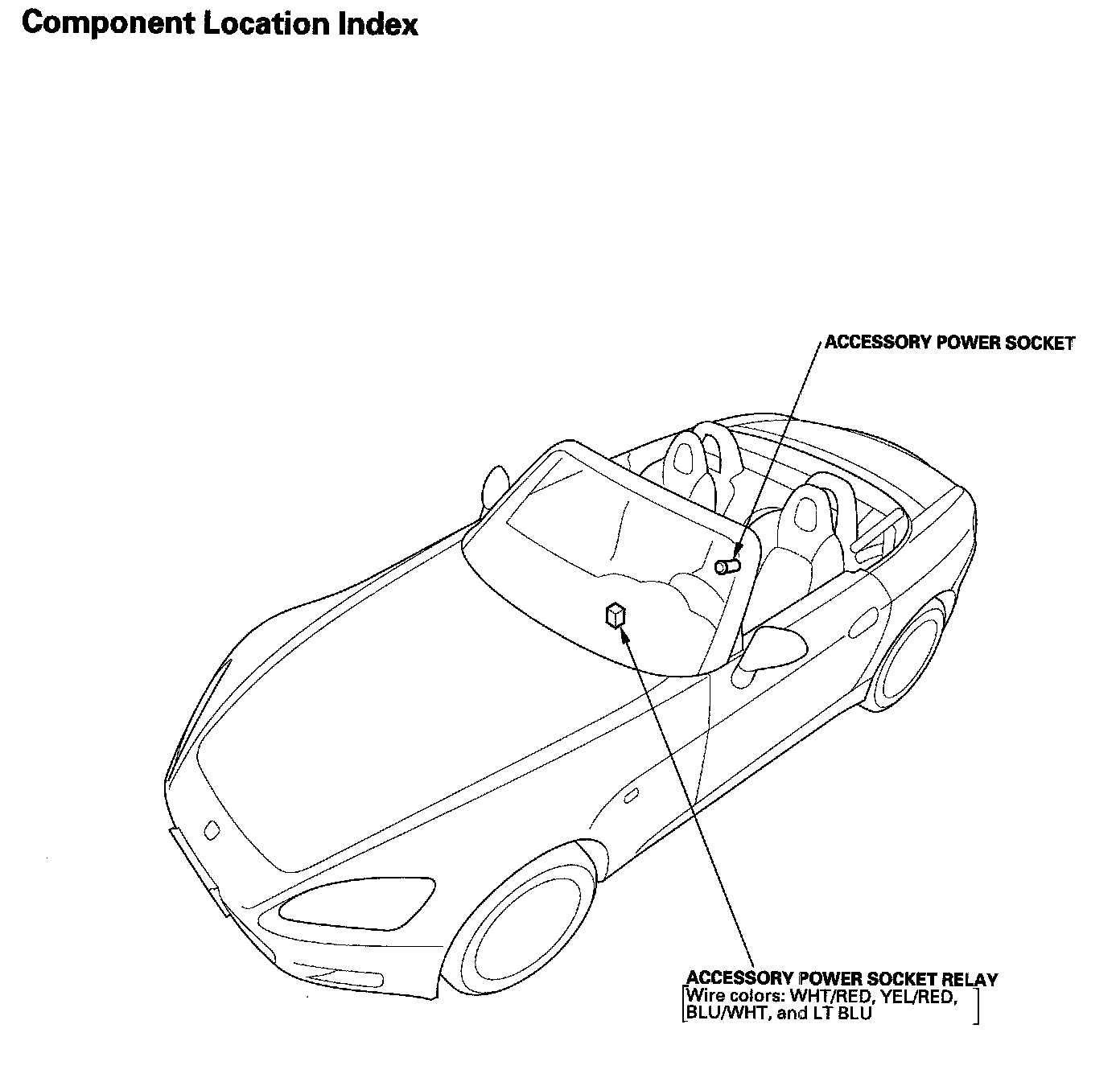

Accessory Power Sockets Component Location Index:

50. Under Left Side Of Dash:
