Component Location Index

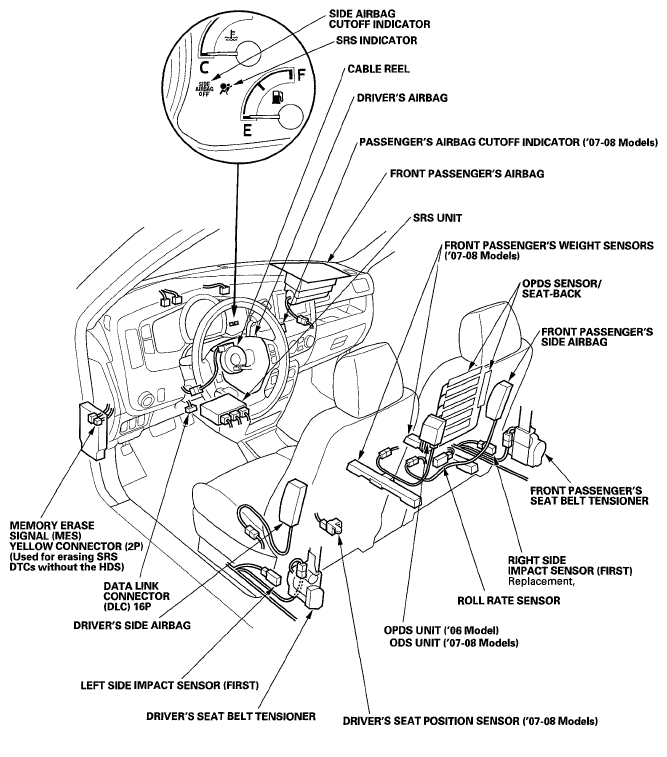

Fig 1: Identifying SRS Component Locations (1 Of 2)
G05593295Courtesy of AMERICAN HONDA MOTOR CO., INC.

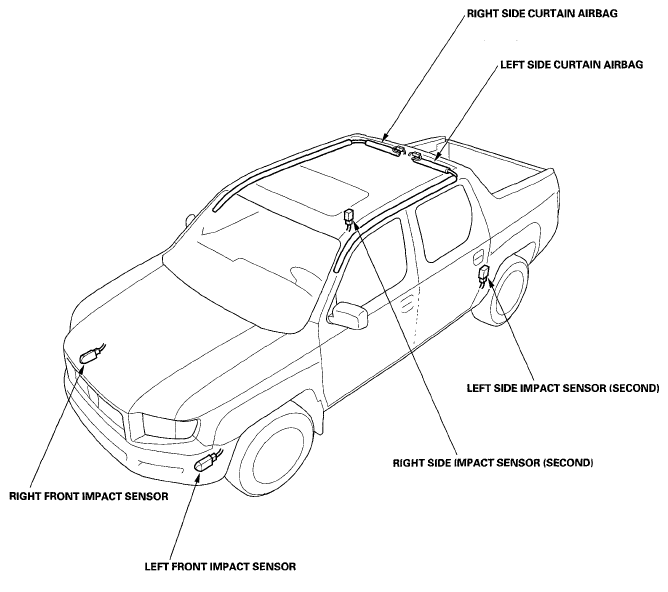

Fig 2: Identifying SRS Component Locations (2 Of 2)
G05593296Courtesy of AMERICAN HONDA MOTOR CO., INC.
