HVAC Control Unit Inputs and Outputs

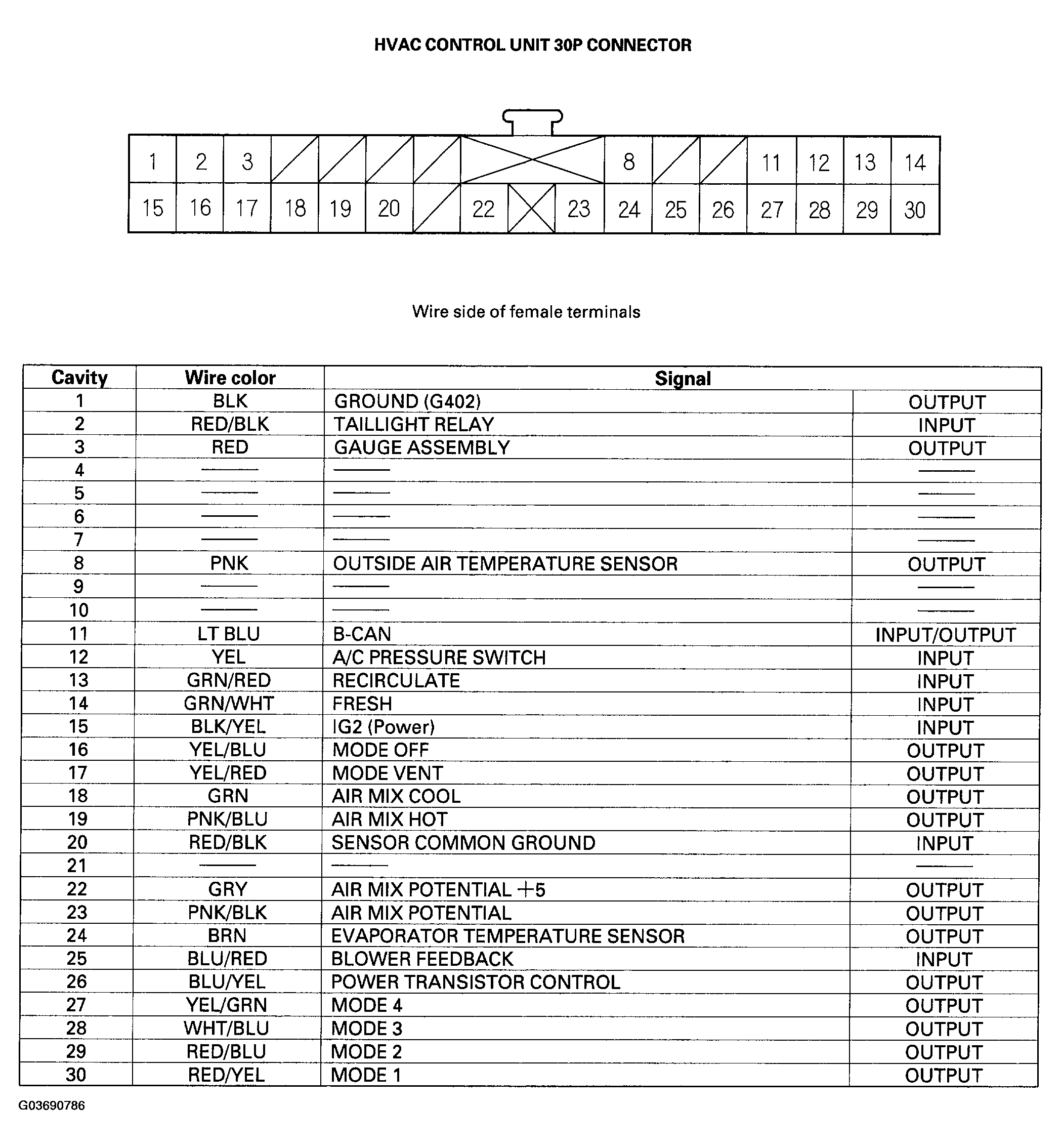

Fig 1: HVAC Control Unit 30P Connector Pinout

G03690786

Courtesy of AMERICAN HONDA MOTOR CO., INC.
