Climate Control Unit Inputs and Outputs

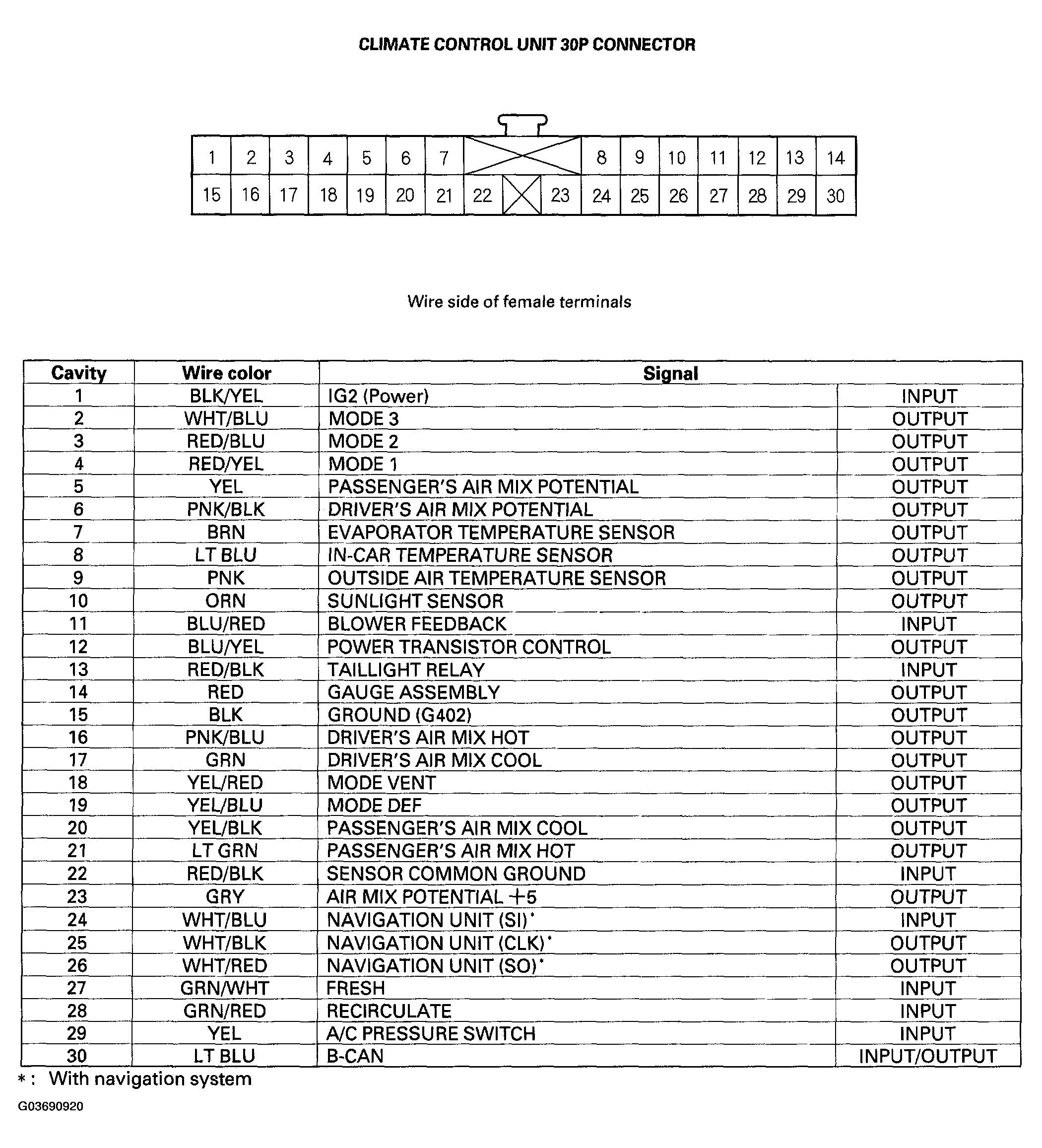

Fig 1: Identifying Climate Control Unit Connector

G03690920

Courtesy of AMERICAN HONDA MOTOR CO., INC.
