Instrument Panel Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the dashboard and related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Tilt the steering column down.
Lower the shift lever knob.

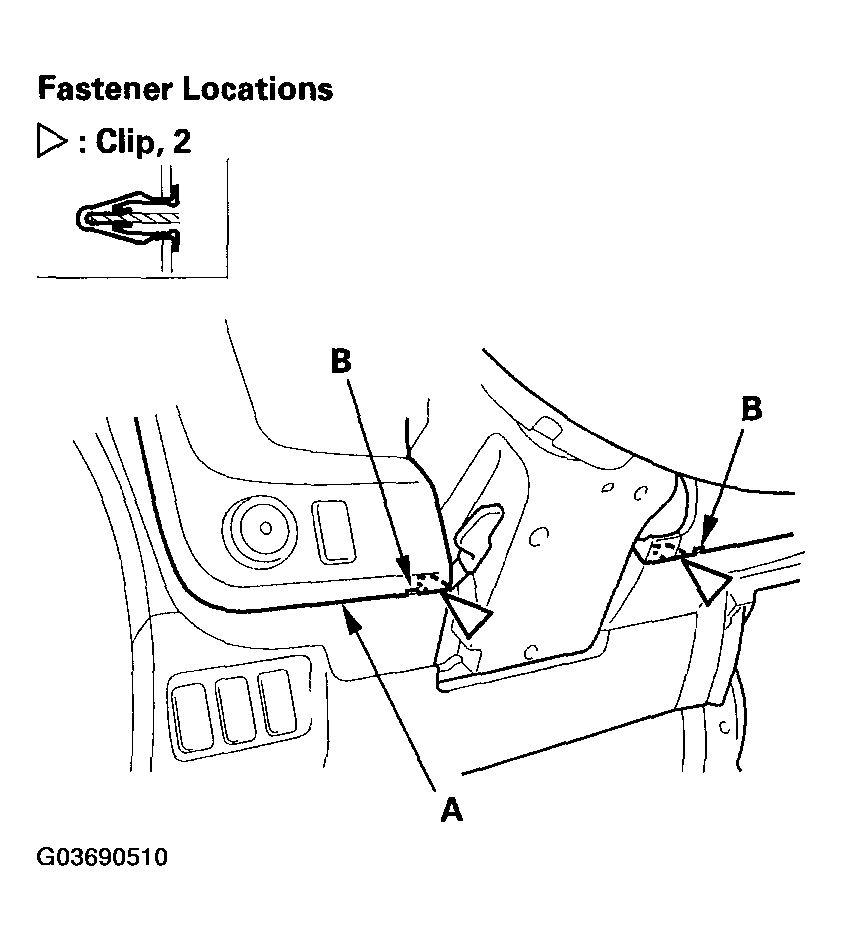

Pry up on the lower edge of the instrument panel (A) at the notches (B) to detach the clips.

Fig 1: Removing Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

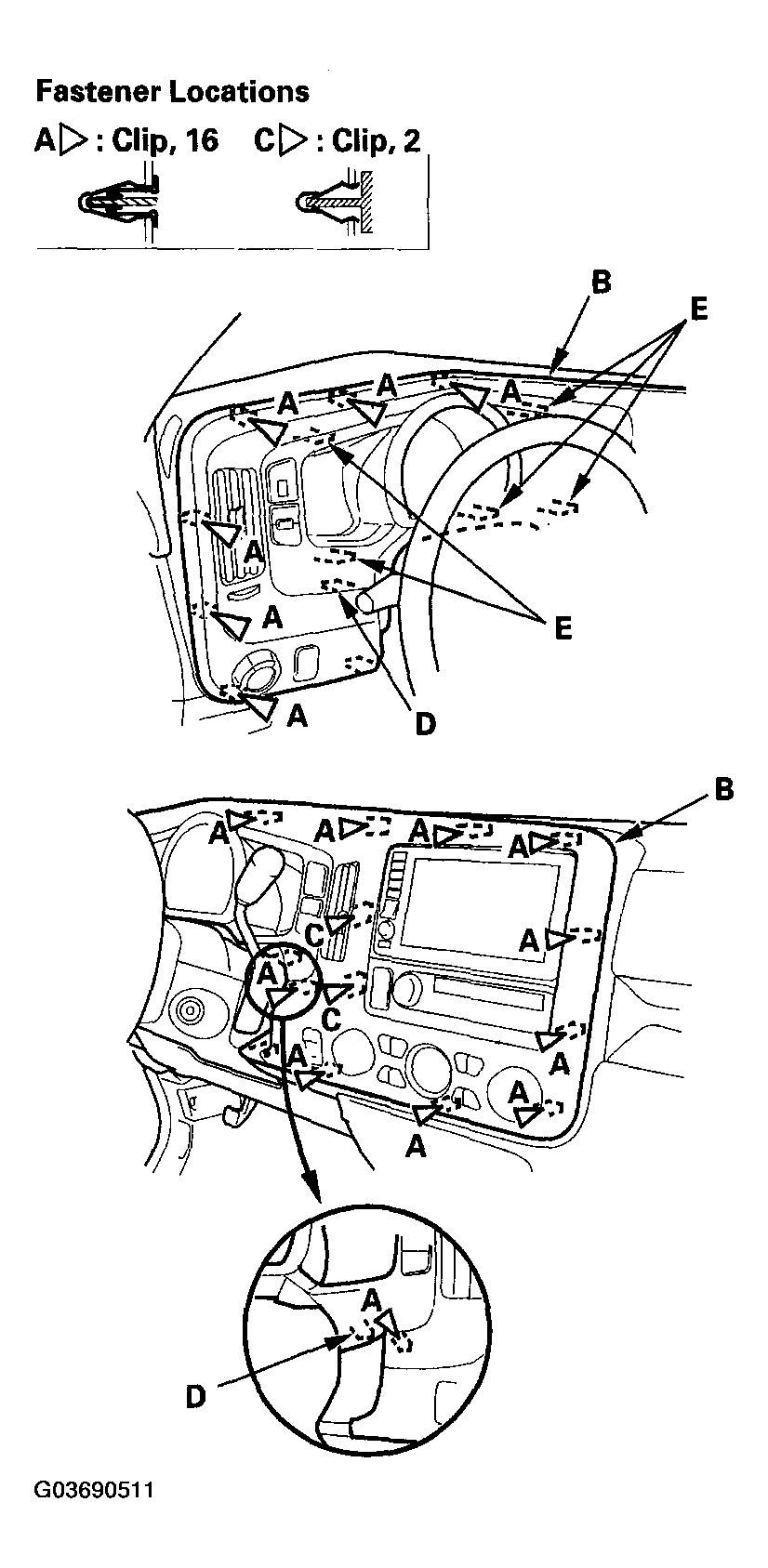

Detach the clips (A) along the edge of the instrument panel (B). Gently pull out the instrument panel to detach the clips (C), and release the hooks (D), then release the instrument panel from the guide hooks (E) of the gauge control module.

Fig 2: Removing Instrument Panel From Guide Hooks Of Gauge Control Module
Courtesy of AMERICAN HONDA MOTOR CO., INC.

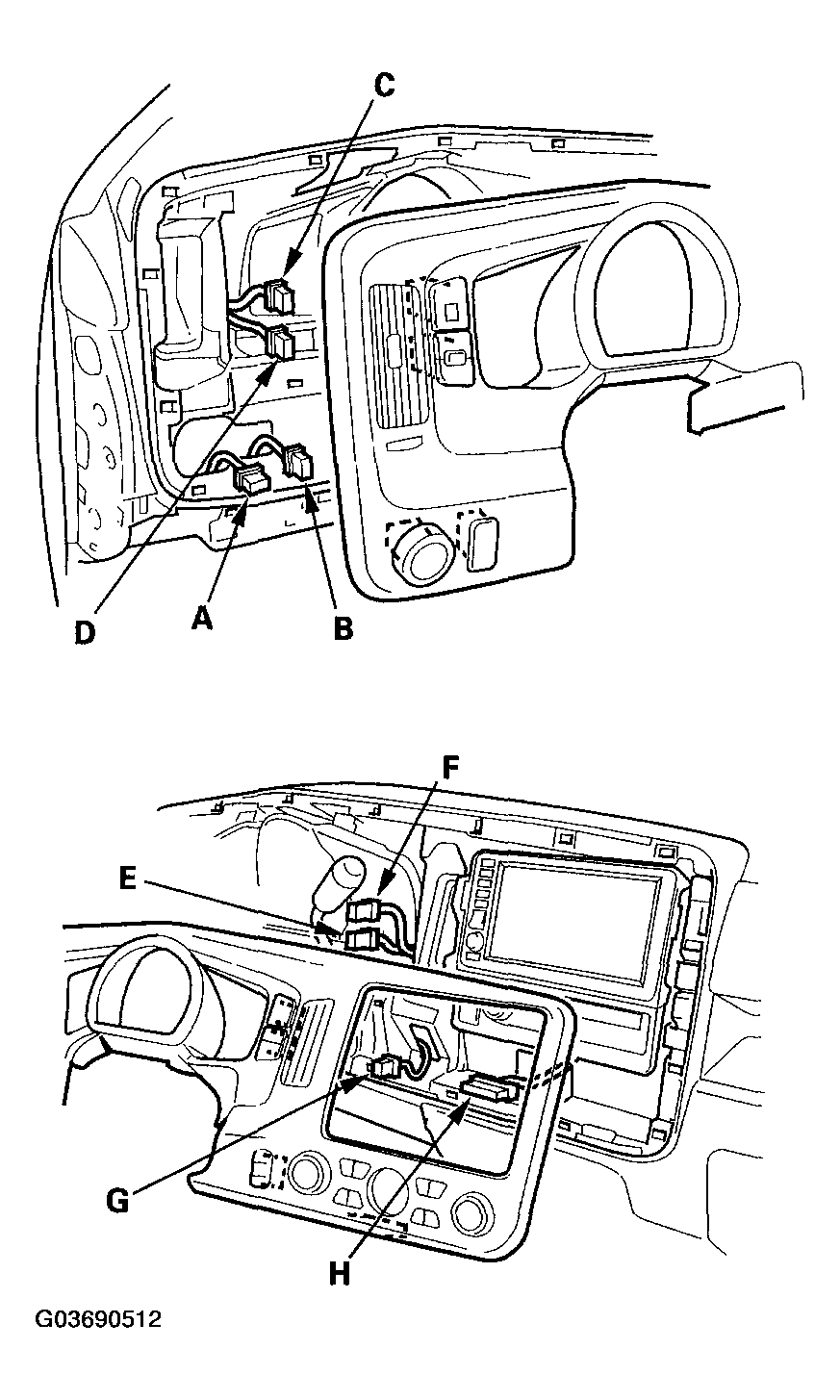

Disconnect the headlight switch connector (A), cargo lights switch connector (B), illumination switch connector (C), moonroof switch connector (D) (for some models), VTM-4 lock switch connector (E), select/reset information switch connector (F), interior lights switch connector (G), and climate control unit connector or HVAC control unit connector (H).

Fig 3: Disconnecting Connectors From Instrument Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

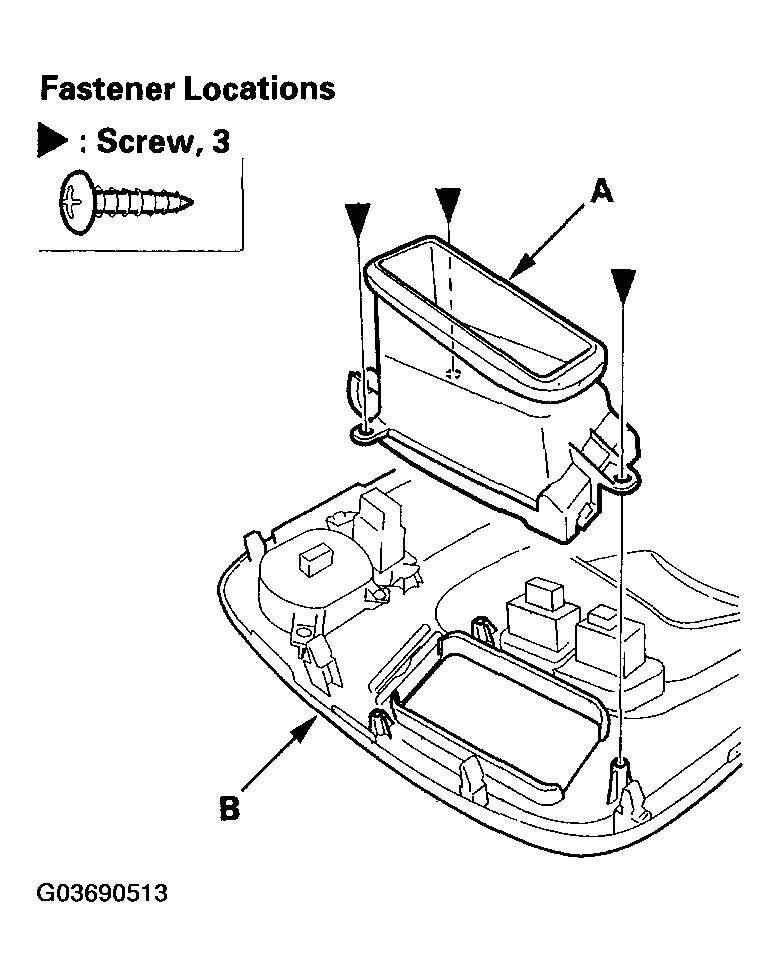

If necessary, remove the screws securing the driver's vent (A), then remove the driver's vent from the instrument panel (B).

Fig 4: Removing Driver'S Vent From Instrument Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Make sure all connectors are plugged in properly.
- Replace any damaged clips.
- Push the clips and hooks into place securely.
