Component Location Index - Front Door

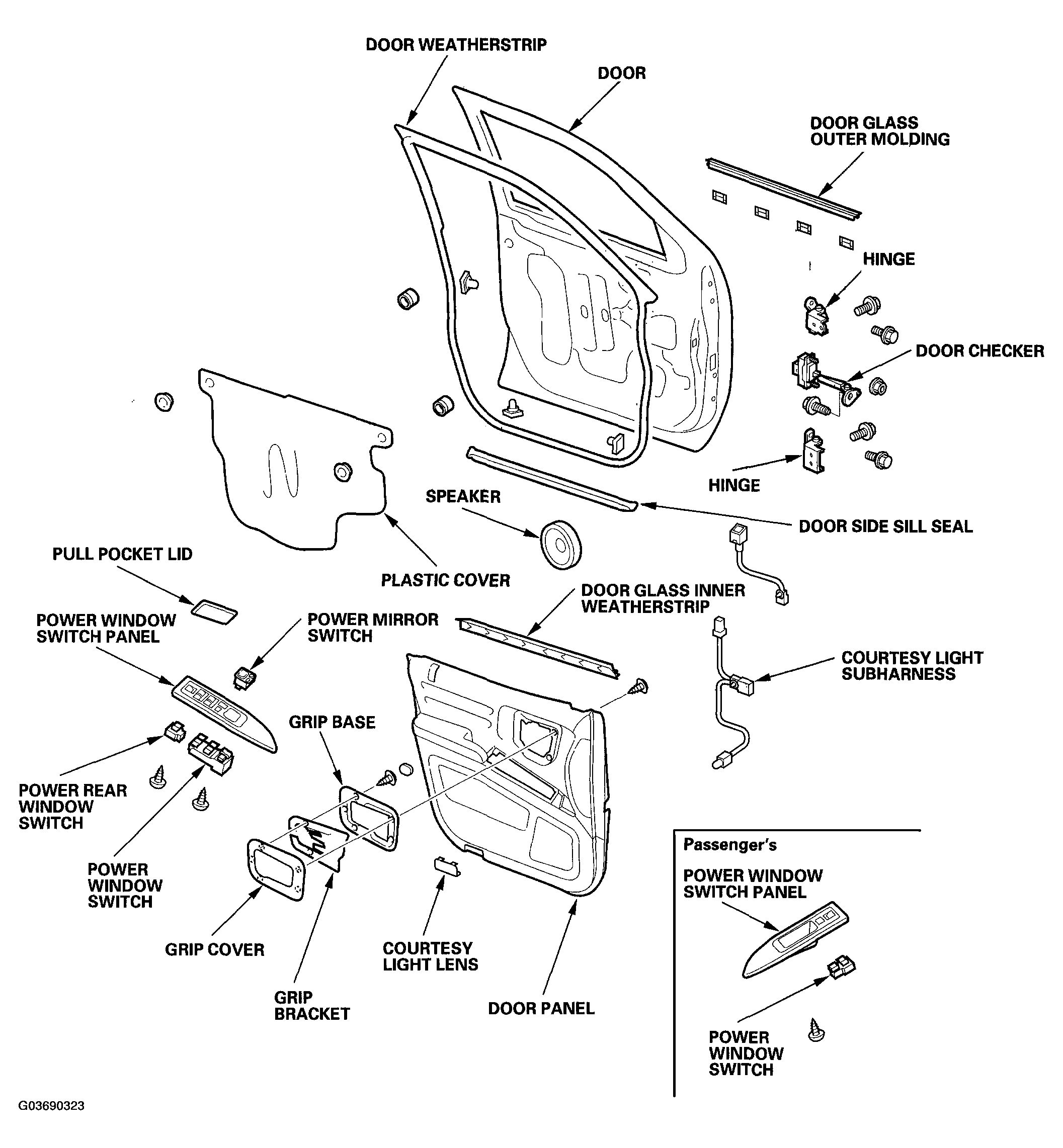

Fig 1: Identifying Front Door Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

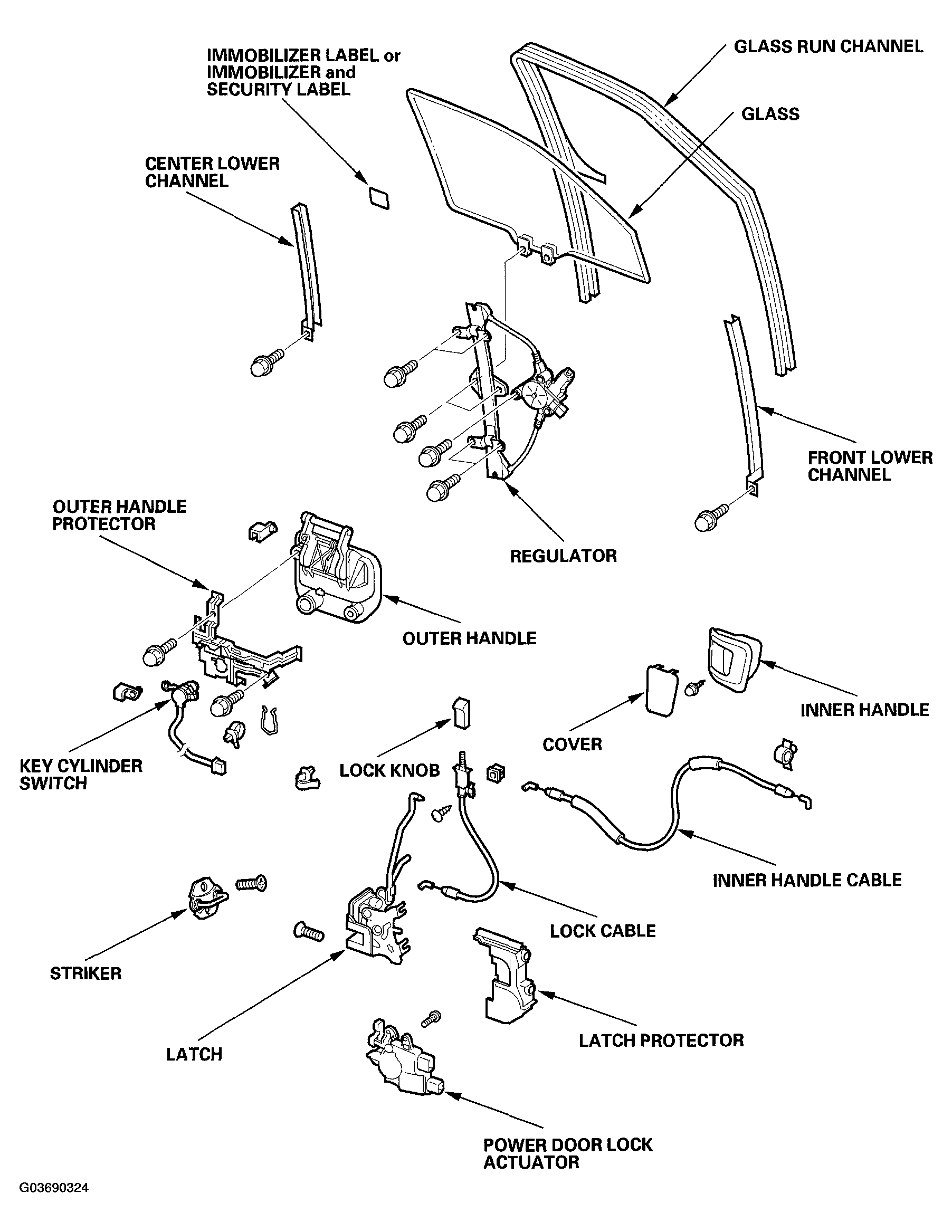

Fig 2: Identifying Front Door Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
