Component Location Index

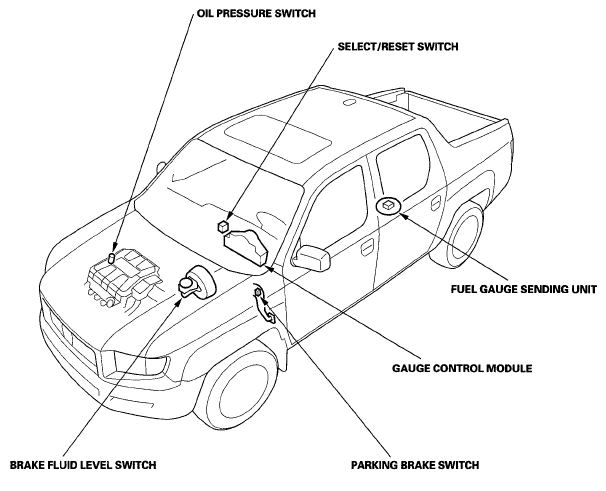

Fig 1: Identifying Gauges Components Location (1 Of 2)
G05593088Courtesy of AMERICAN HONDA MOTOR CO., INC.

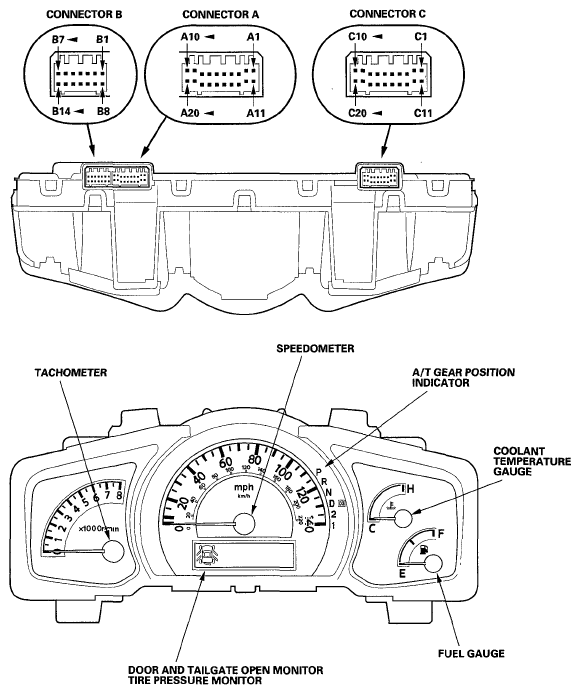

Fig 2: Identifying Gauges Components Location (2 Of 2)
G05593089Courtesy of AMERICAN HONDA MOTOR CO., INC.
