Circuit Diagram

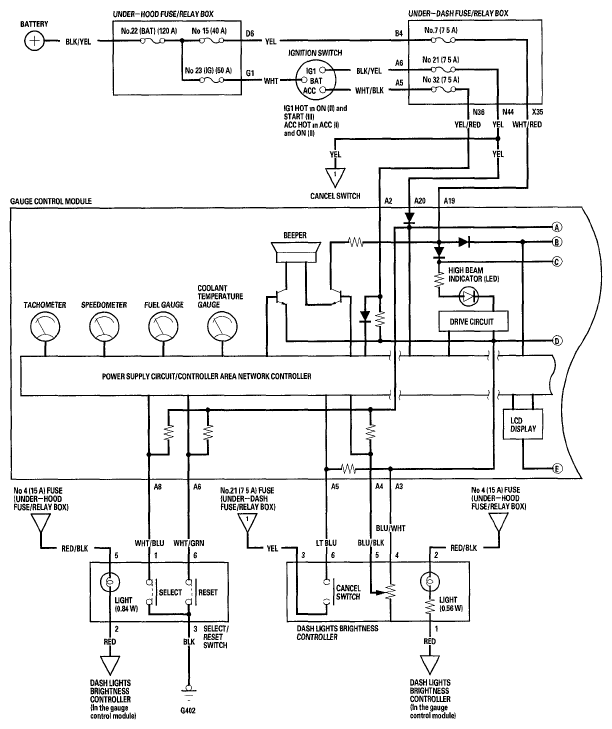

Fig 1: Gauges Circuit Diagram (1 Of 7)

G05593093

Courtesy of AMERICAN HONDA MOTOR CO., INC.

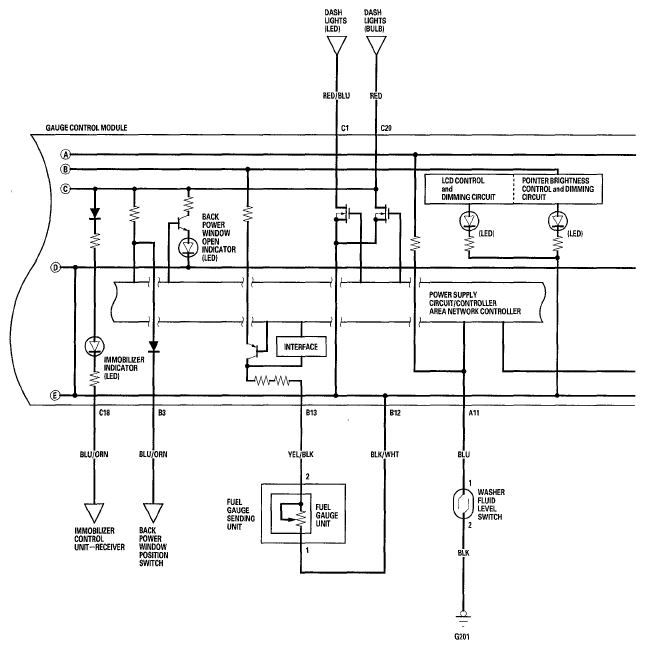

Fig 2: Gauges Circuit Diagram (2 Of 7)

G05593094

Courtesy of AMERICAN HONDA MOTOR CO., INC.

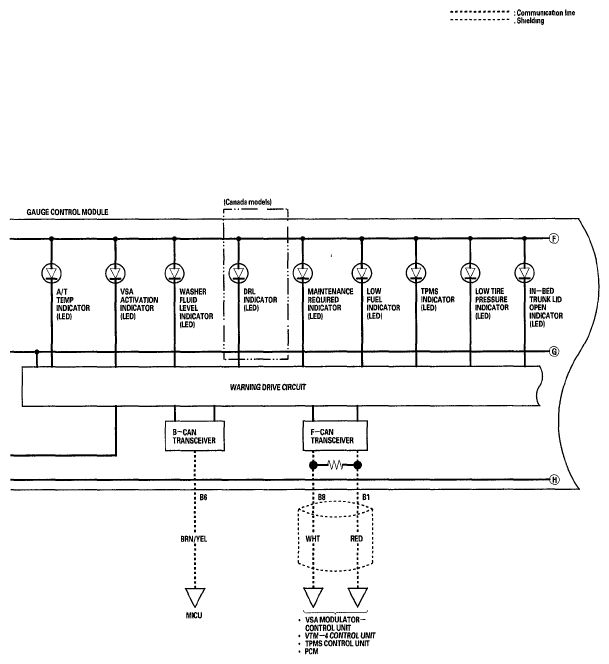

Fig 3: Gauges Circuit Diagram (3 Of 7)

G05593095

Courtesy of AMERICAN HONDA MOTOR CO., INC.

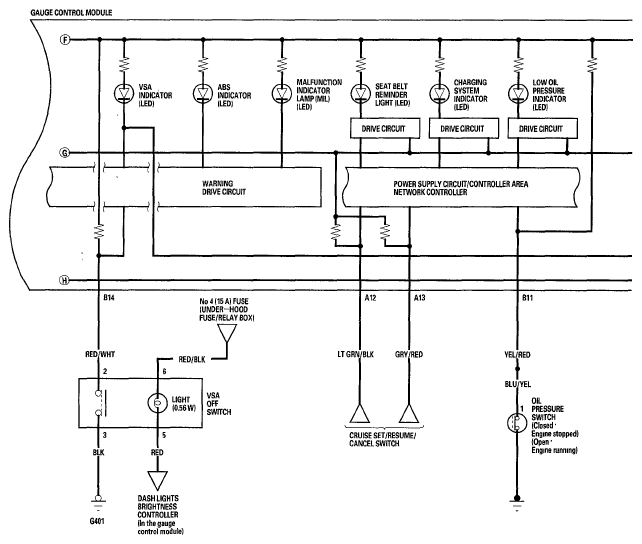

Fig 4: Gauges Circuit Diagram (4 Of 7)

G05593096

Courtesy of AMERICAN HONDA MOTOR CO., INC.

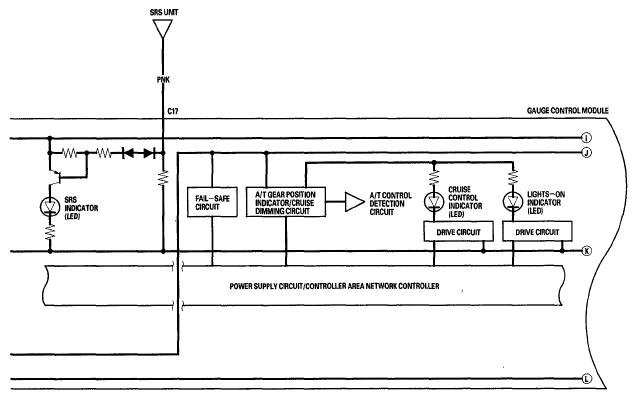

Fig 5: Gauges Circuit Diagram (5 Of 7)

G05593097

Courtesy of AMERICAN HONDA MOTOR CO., INC.

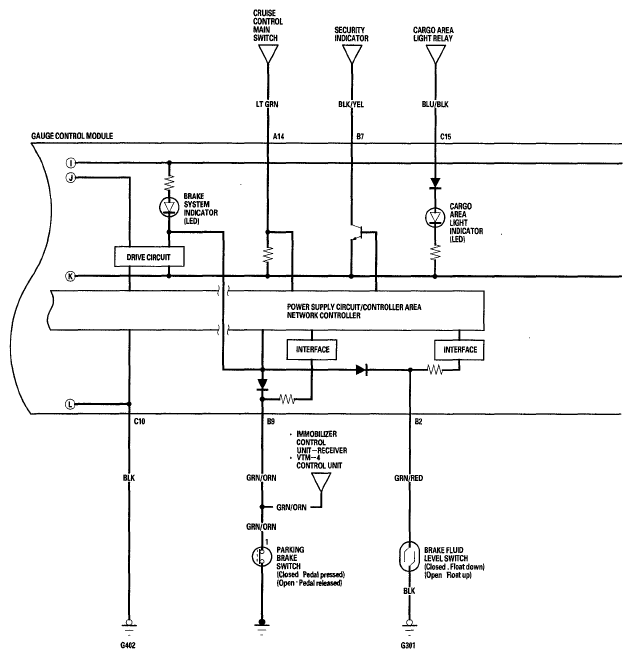

Fig 6: Gauges Circuit Diagram (6 Of 7)

G05593098

Courtesy of AMERICAN HONDA MOTOR CO., INC.

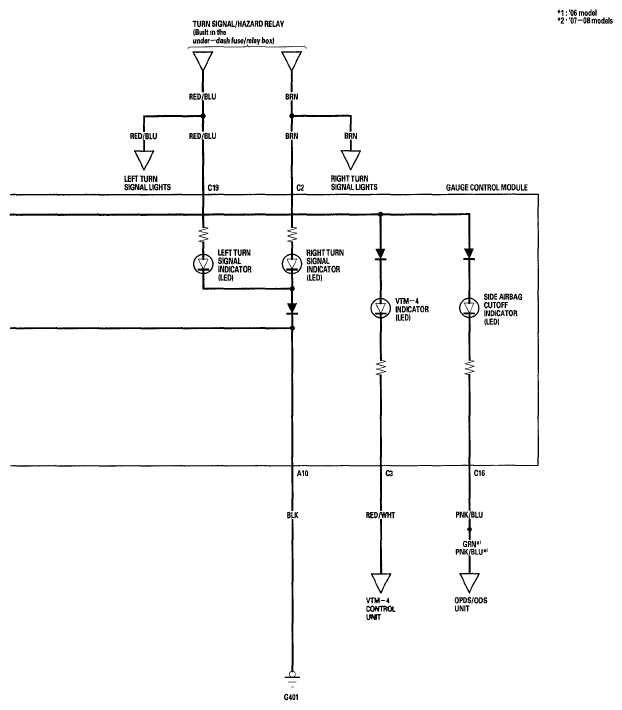

Fig 7: Gauges Circuit Diagram (7 Of 7)

G05593099

Courtesy of AMERICAN HONDA MOTOR CO., INC.
