Oil Pressure Sender: Locations

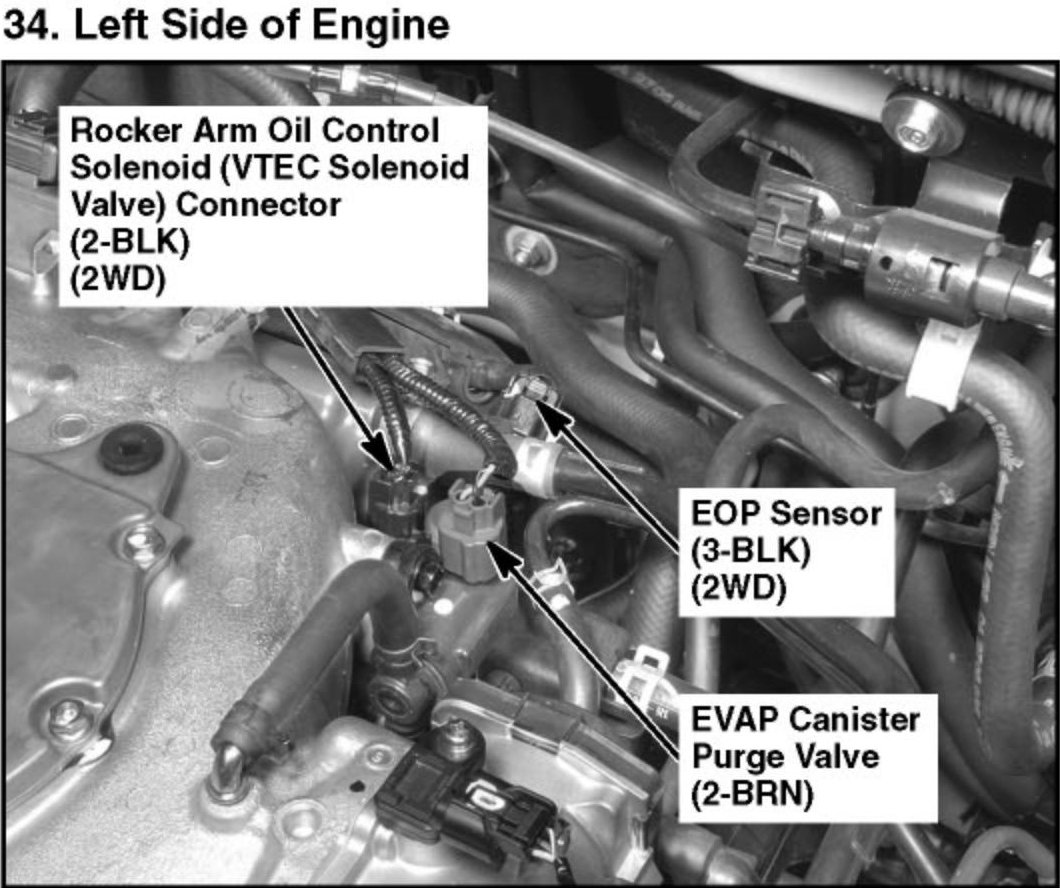

34. Left Side Of Engine:

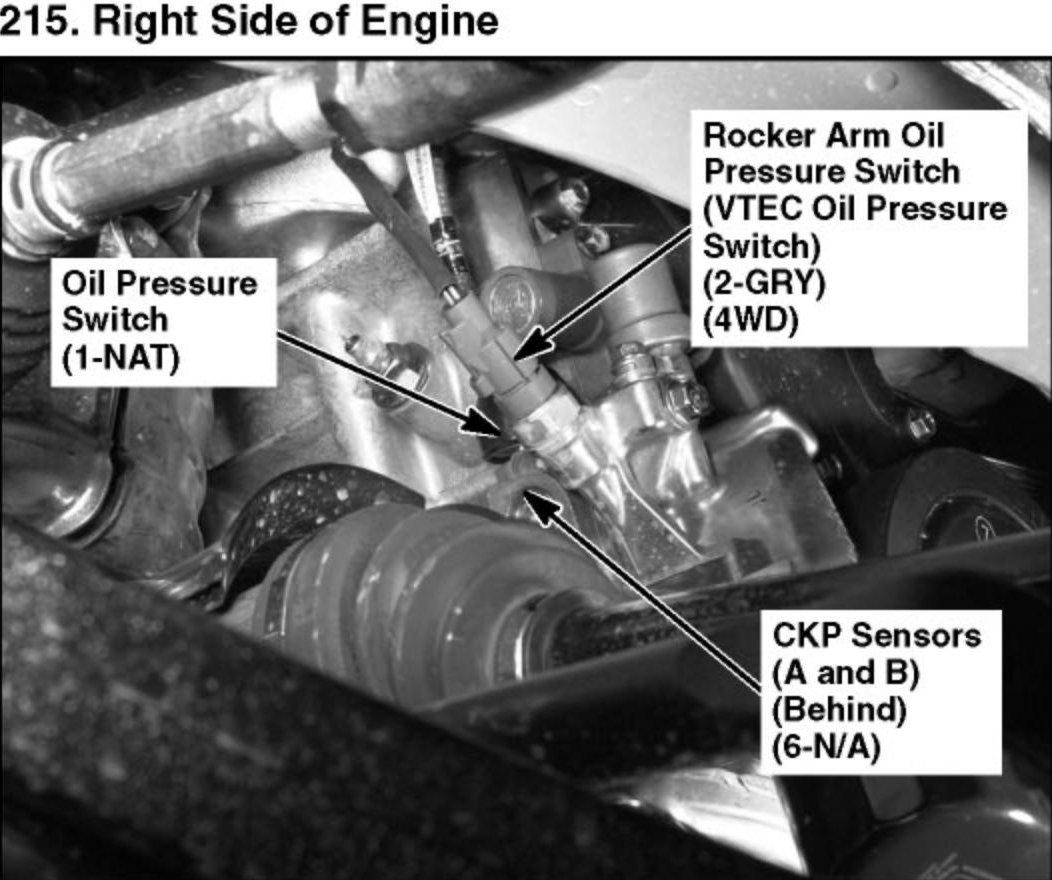

215. Right Side Of Engine:

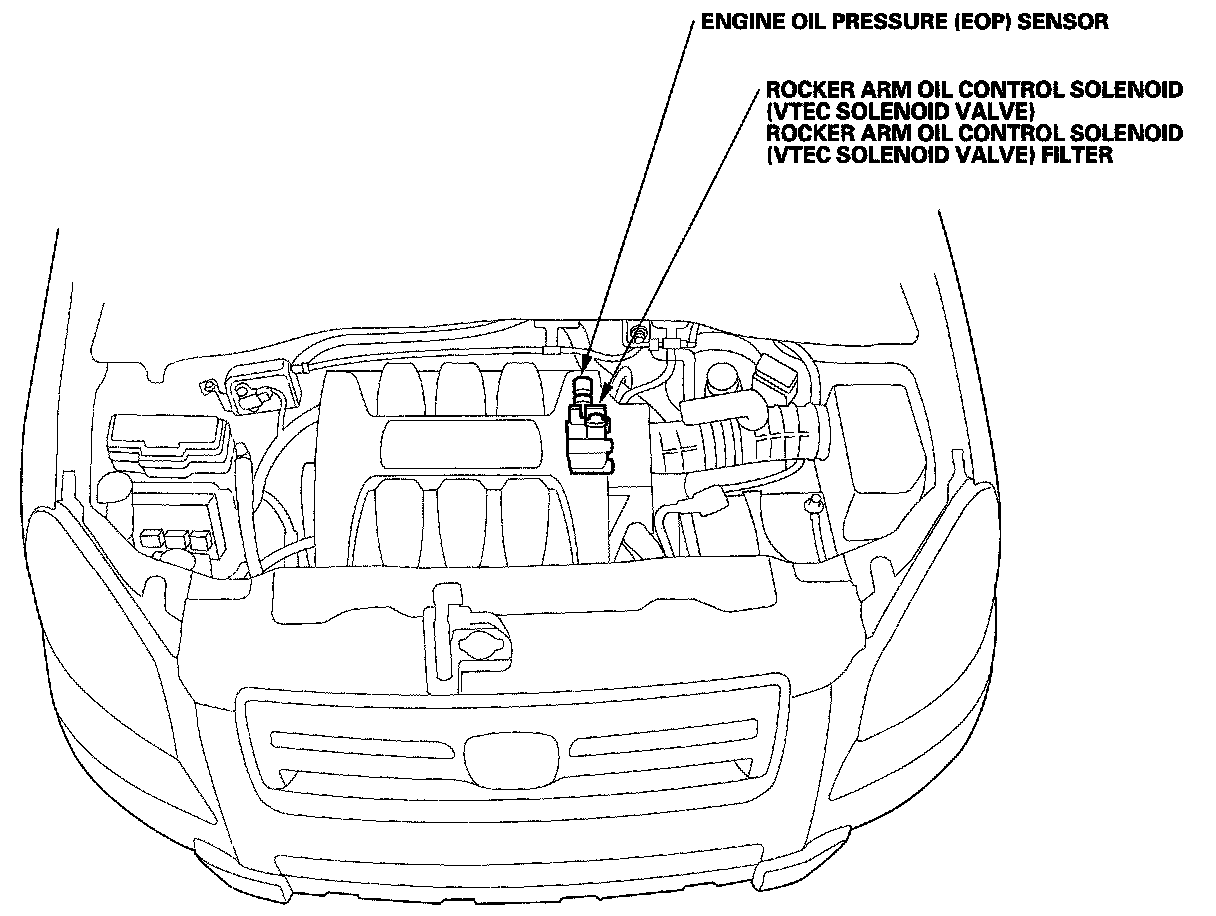

Variable Cylinder Management (VCM) System Component Location Index:

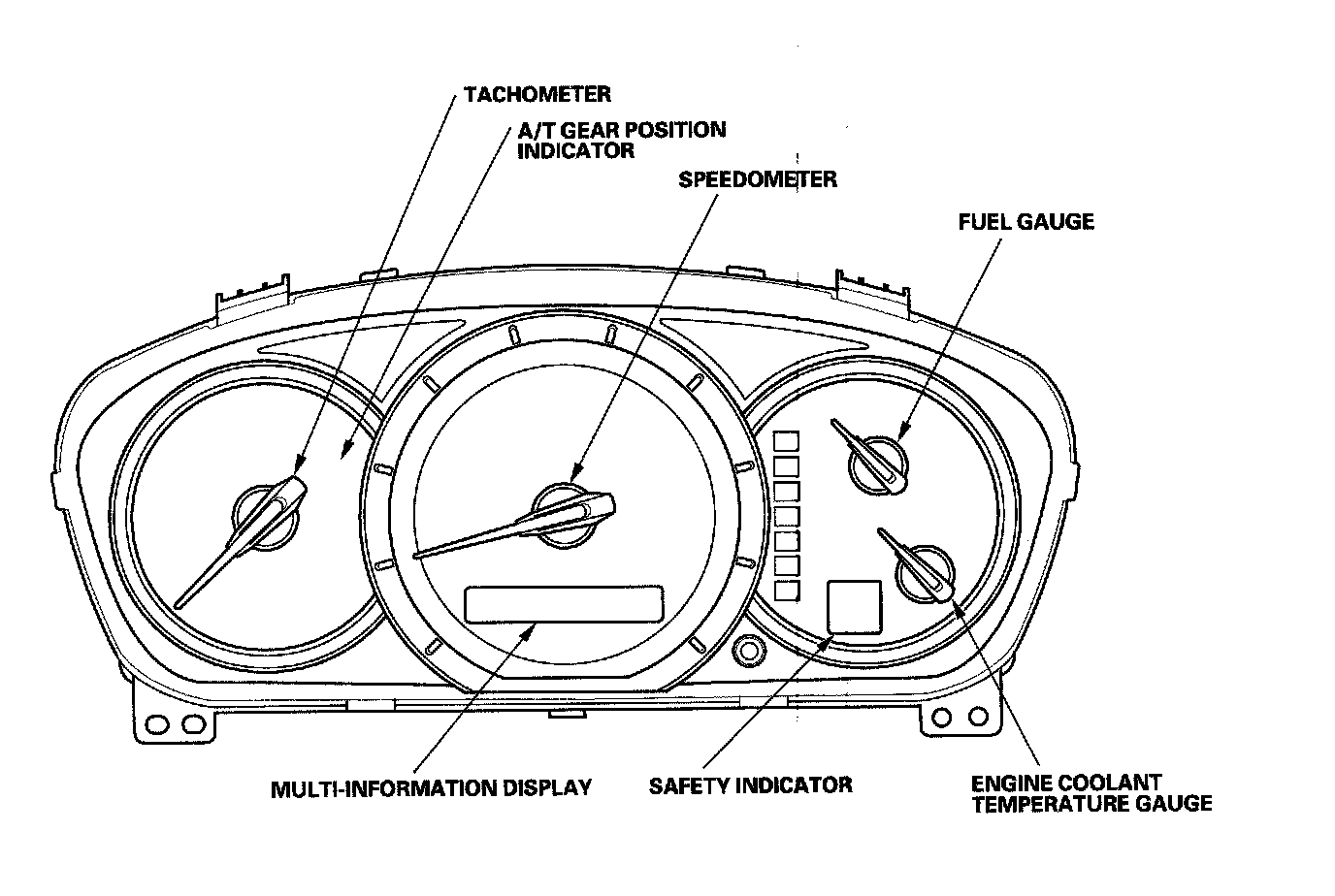

Gauges Component Location Index:

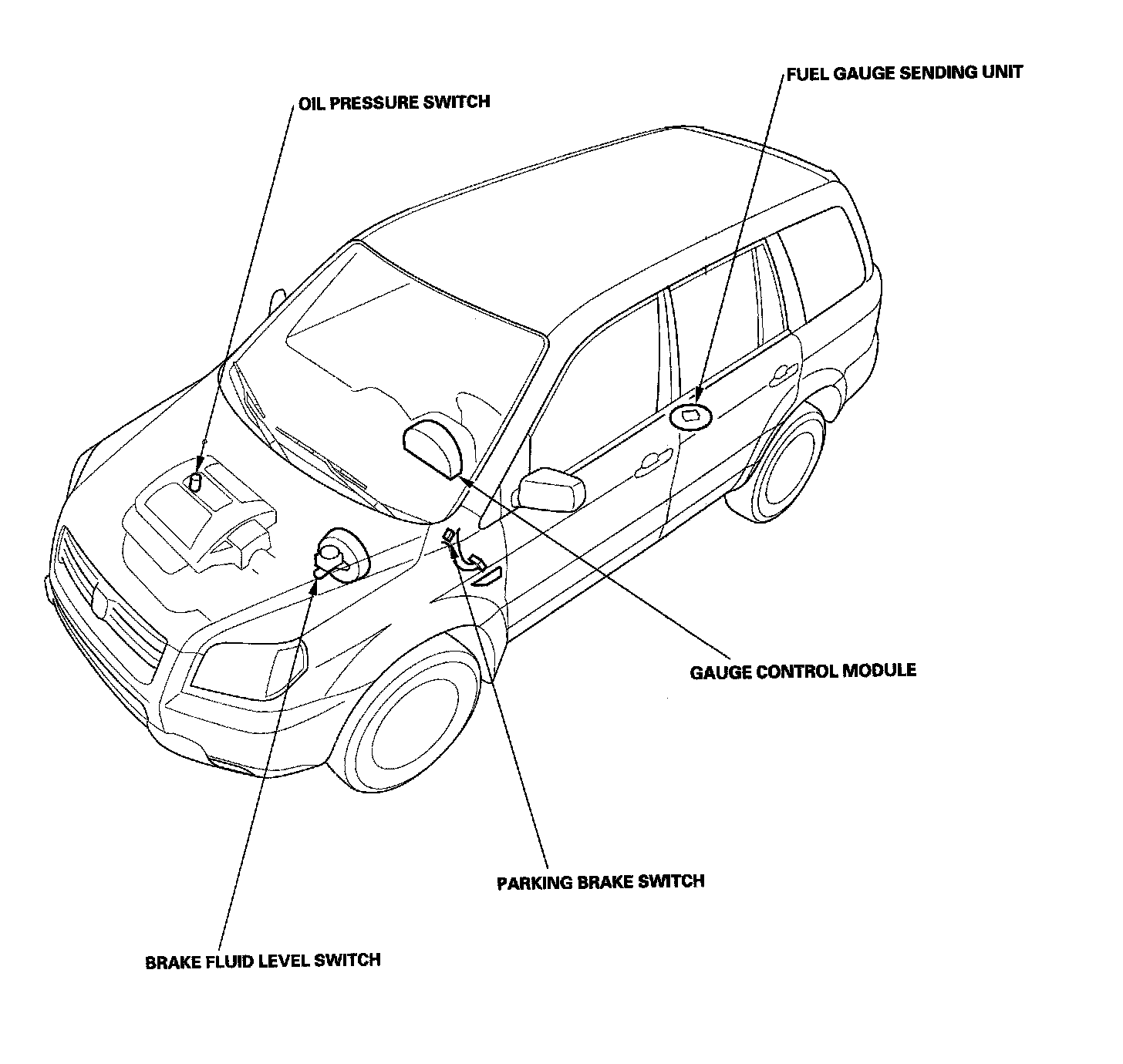

Gauges Component Location Index:



Gauges Component Location Index:
