Connector Locations

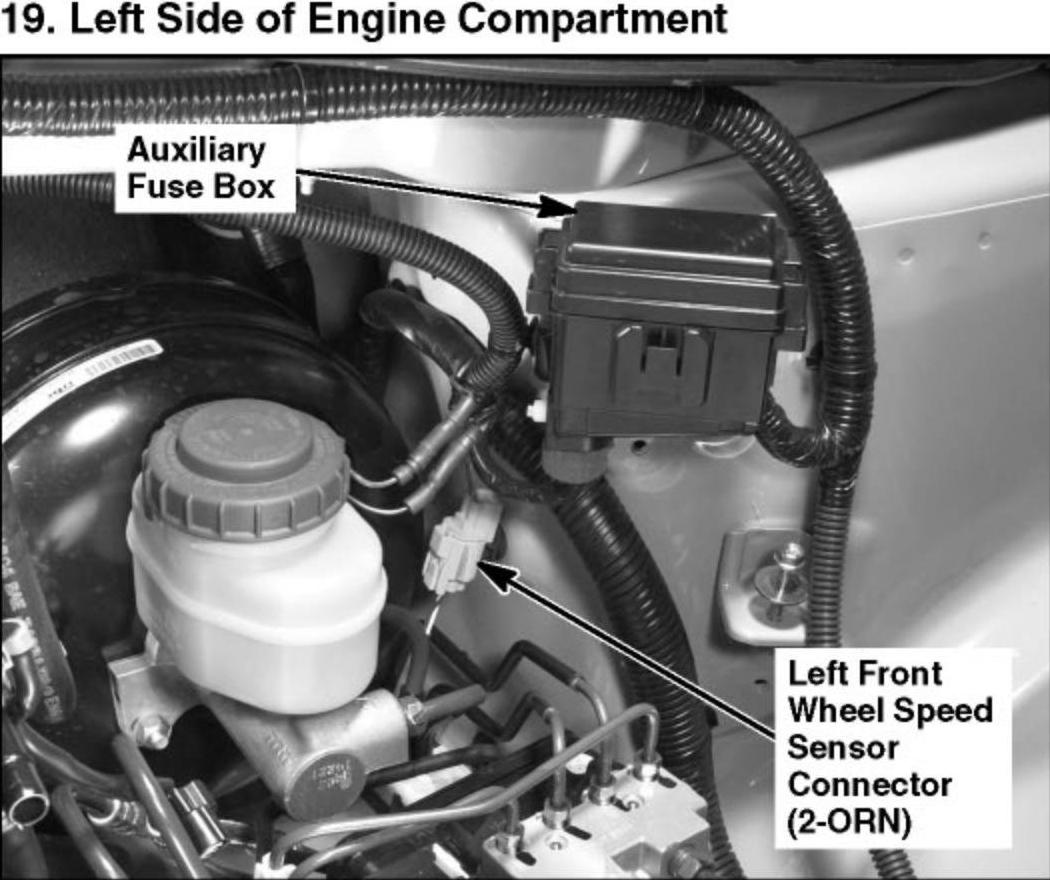

19. Left Side Of Engine Compartment:

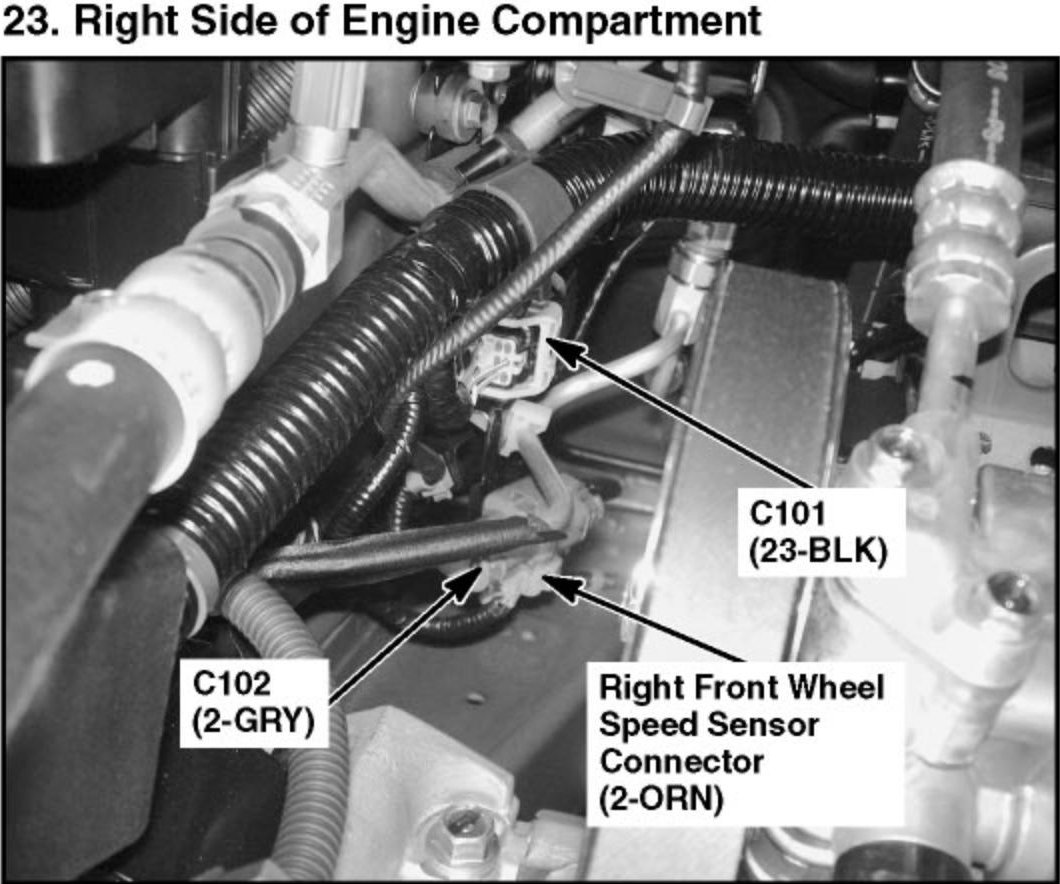

23. Right Side Of Engine Compartment:

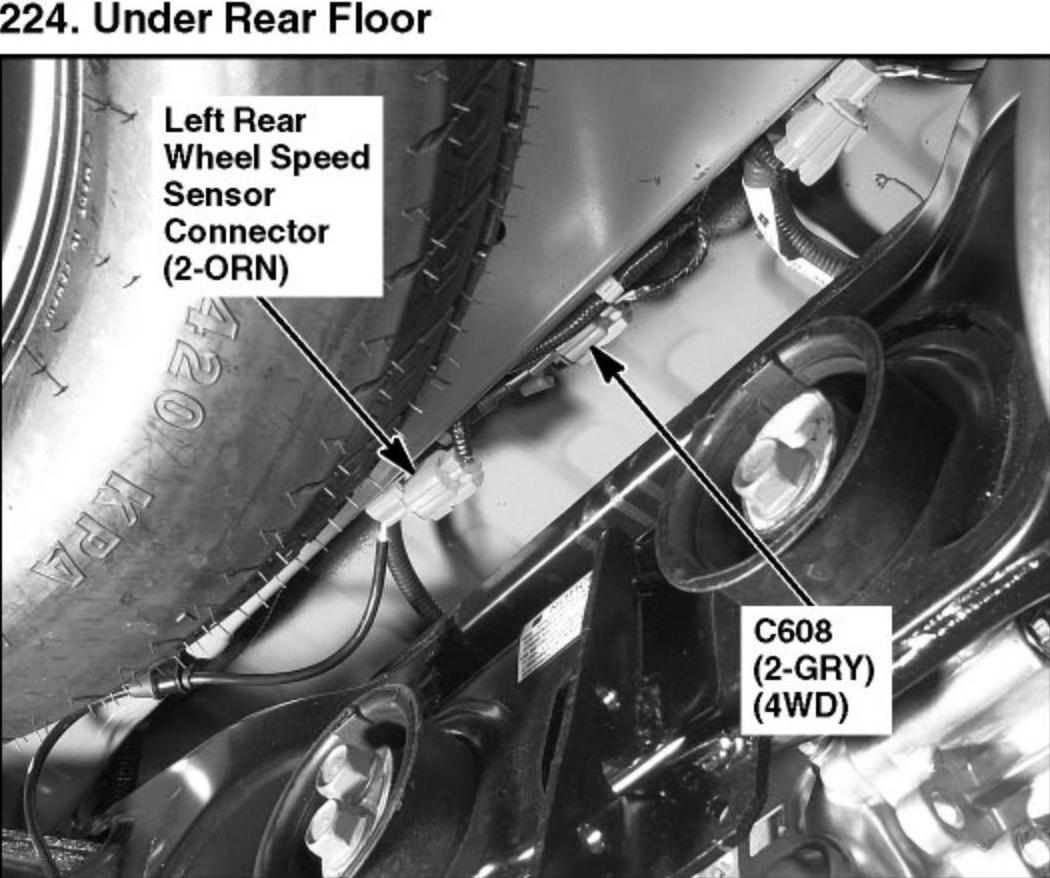

224. Under Rear Floor:



225. Under Rear Floor:
