Home >> Honda >> 2007 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector ID By Location on harness >> Driver's Seat Wire Harness (EX, EX-L)

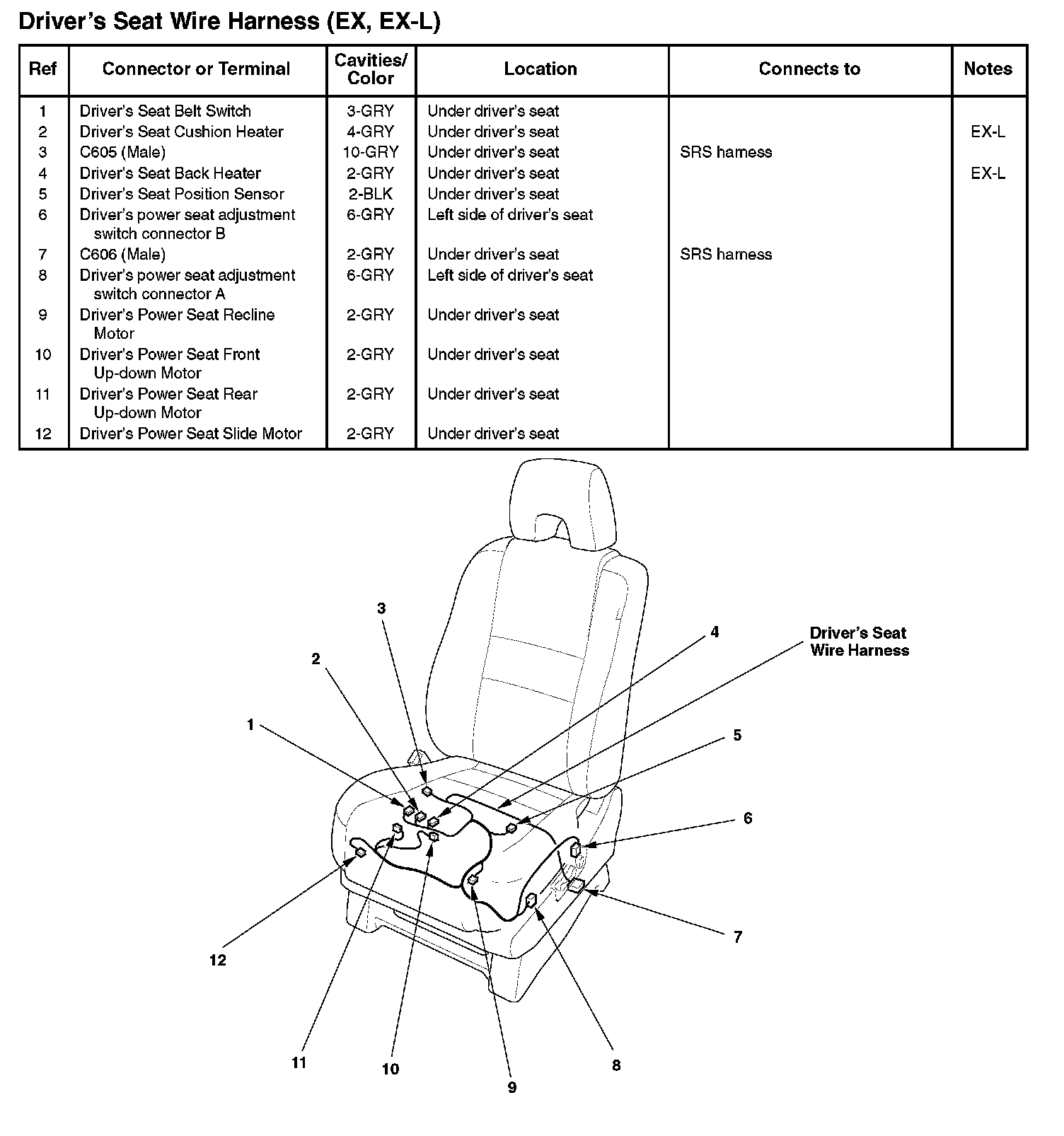

Driver's Seat Wire Harness (EX, EX-L)

Driver's Seat Wire Harness (EX, EX-L):
