160. Middle of Roof (Ex-L)

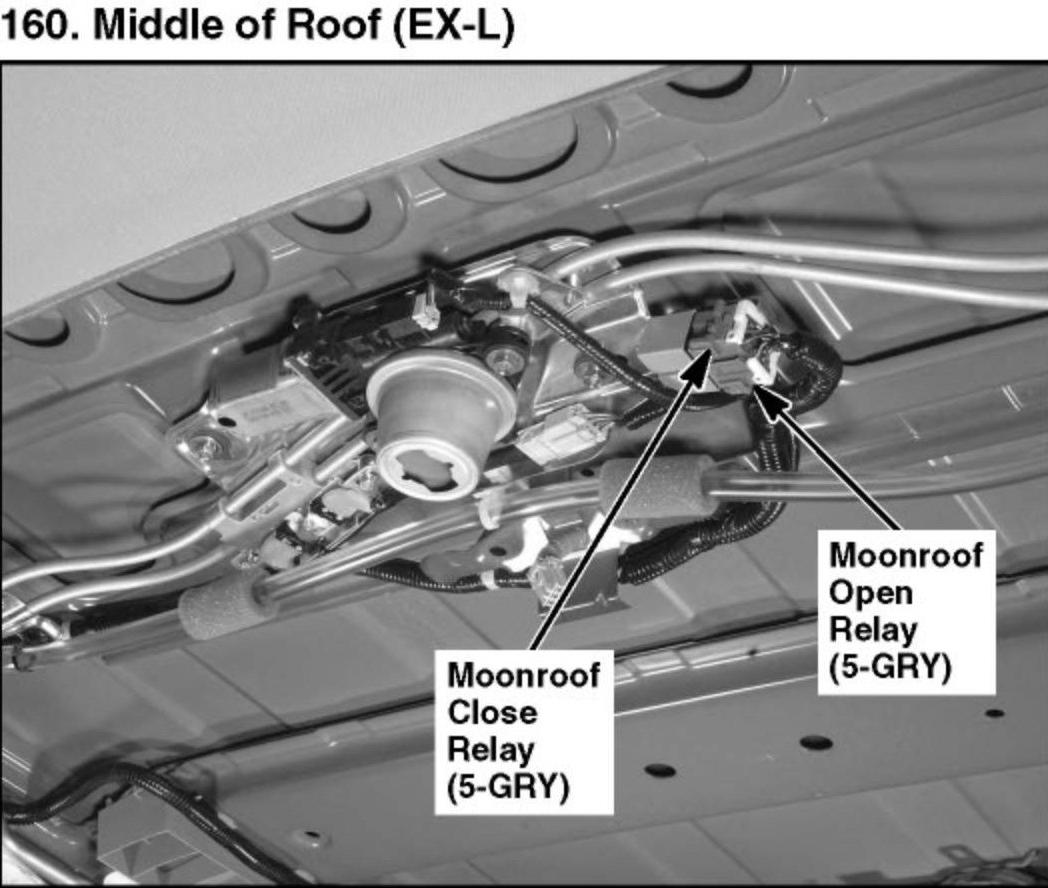

160. Middle Of Roof (EX-L):

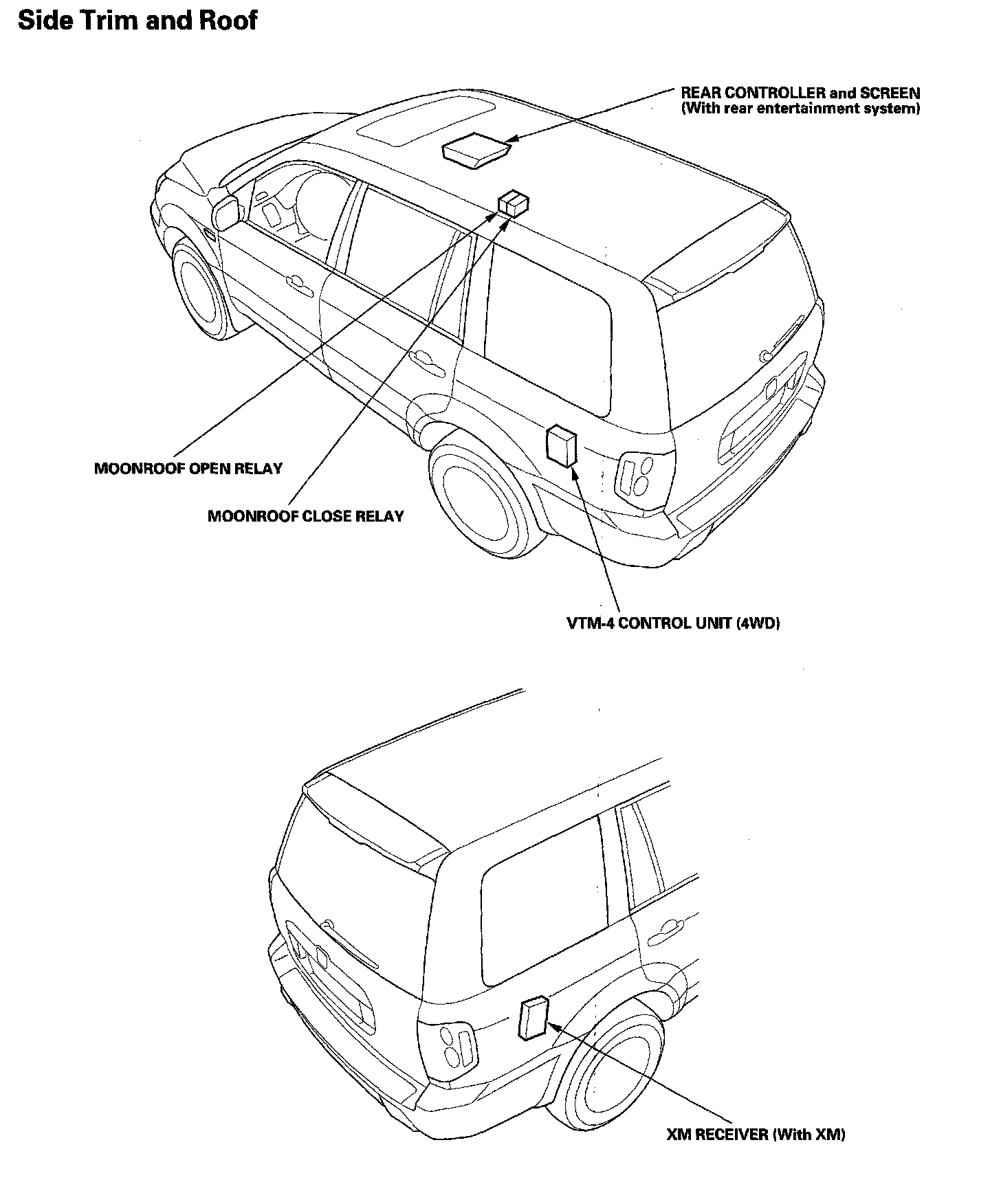

Relay And Control Unit Locations Side Trim And Roof:

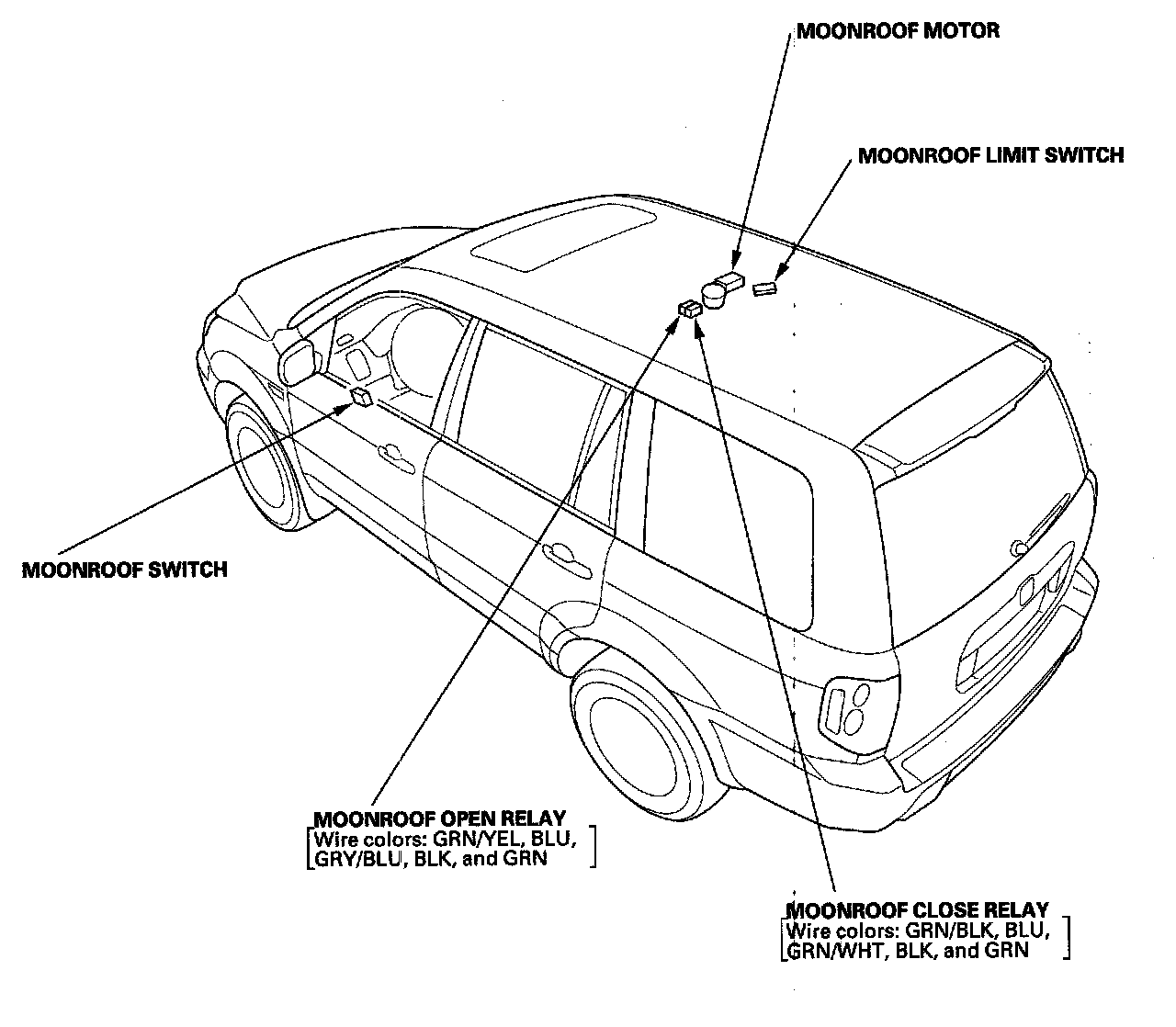

Moonroof Component Location Index:
