Auto-Tensioner Replacement

Drive Belt Auto-tensioner Replacement

J35A9 engine

1. Remove the drive belt.
2. Remove the splash shield.

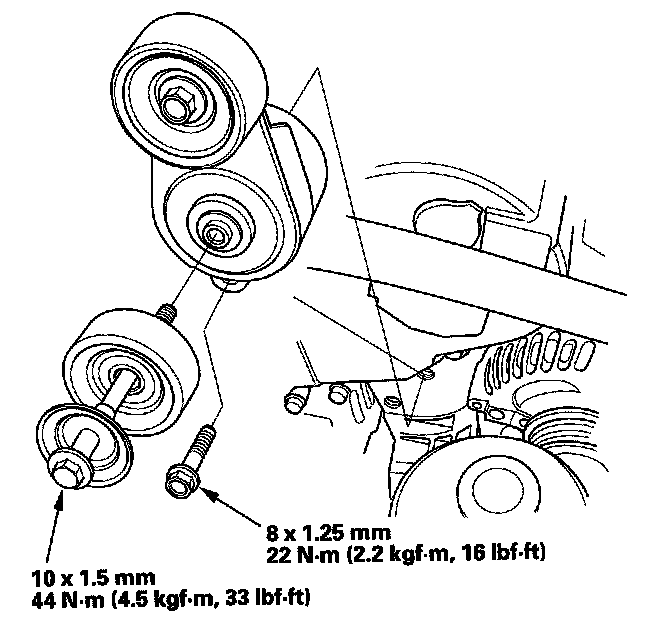

3. Remove the auto-tensioner.
4. Install the auto-tensioner in the reverse order of removal.

J35Z1 engine

1. Remove the drive belt.
2. Remove the splash shield.




3. Remove the auto-tensioner.
4. Install the auto-tensioner in the reverse order of removal.
