Gauges Circuit Diagram

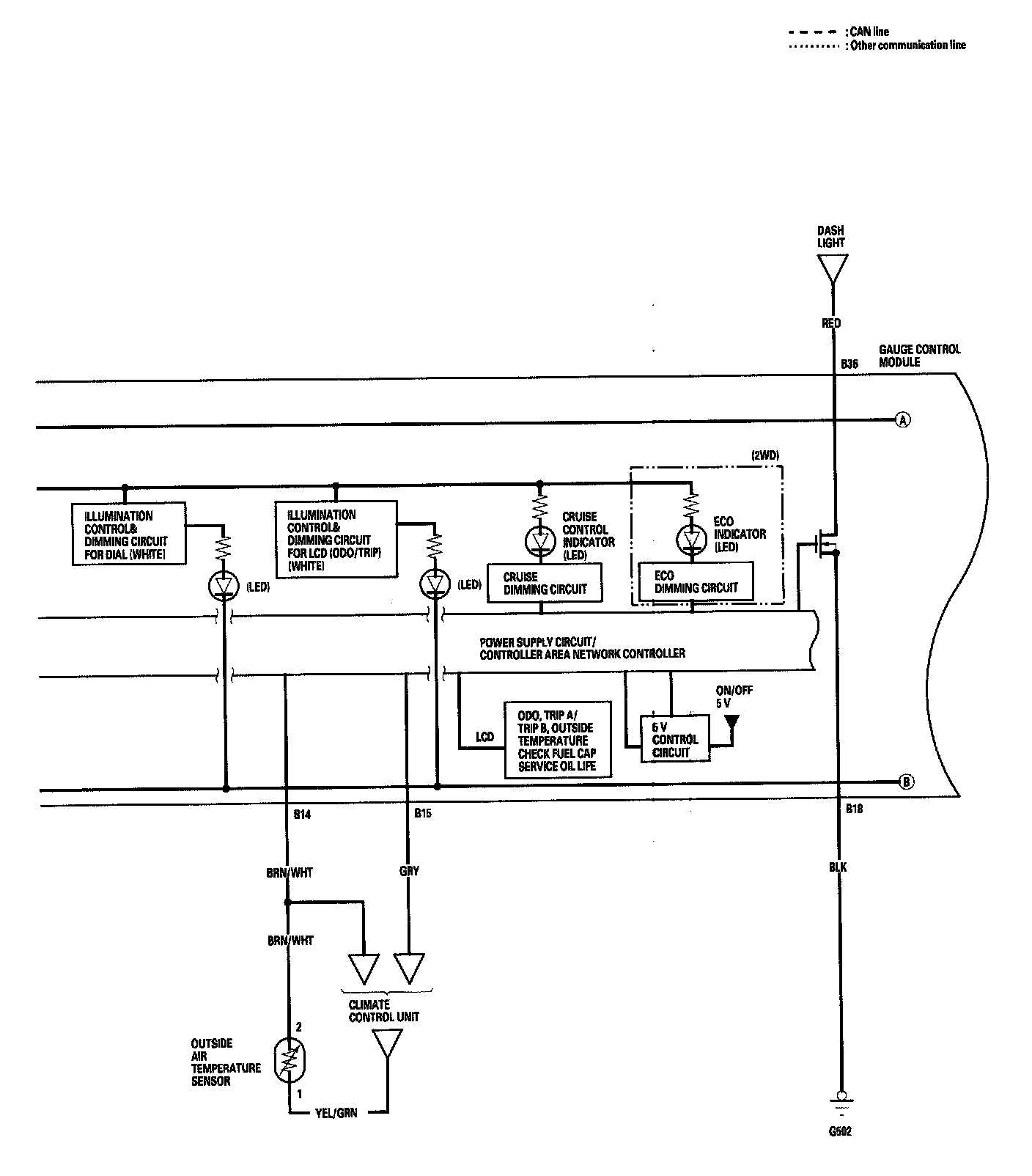

Gauges Circuit Diagram part 1:

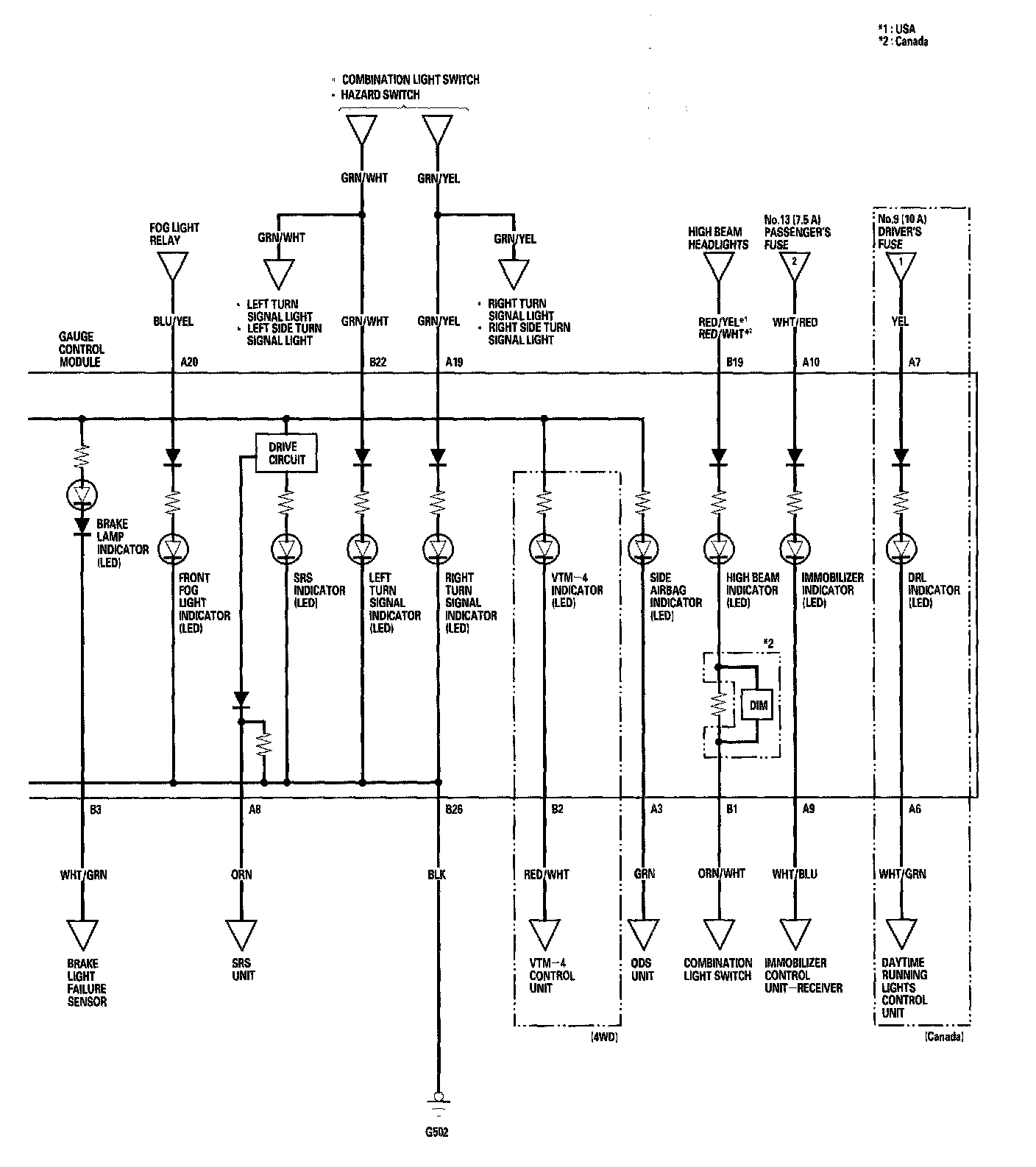

Gauges Circuit Diagram part 2:

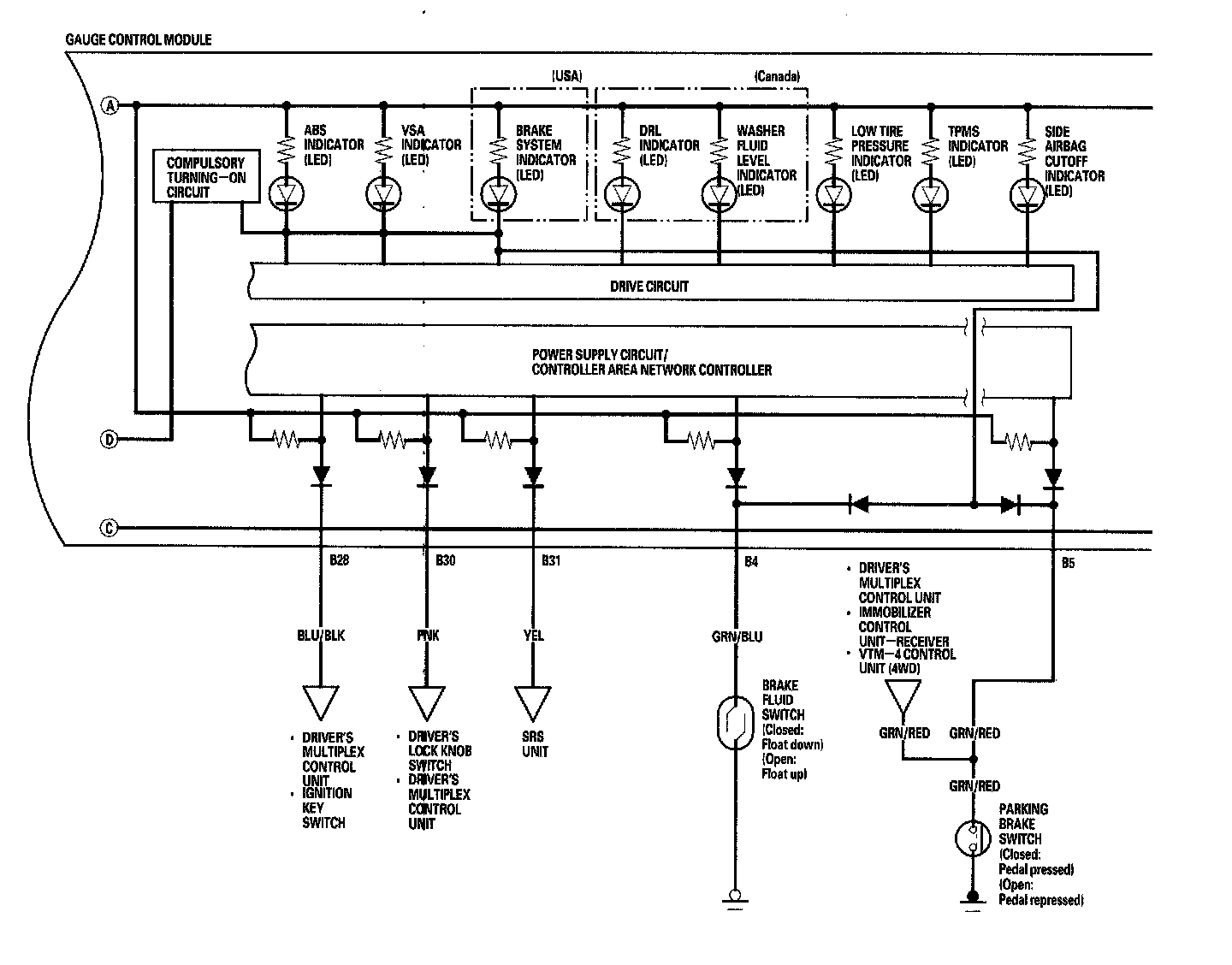

Gauges Circuit Diagram part 3:

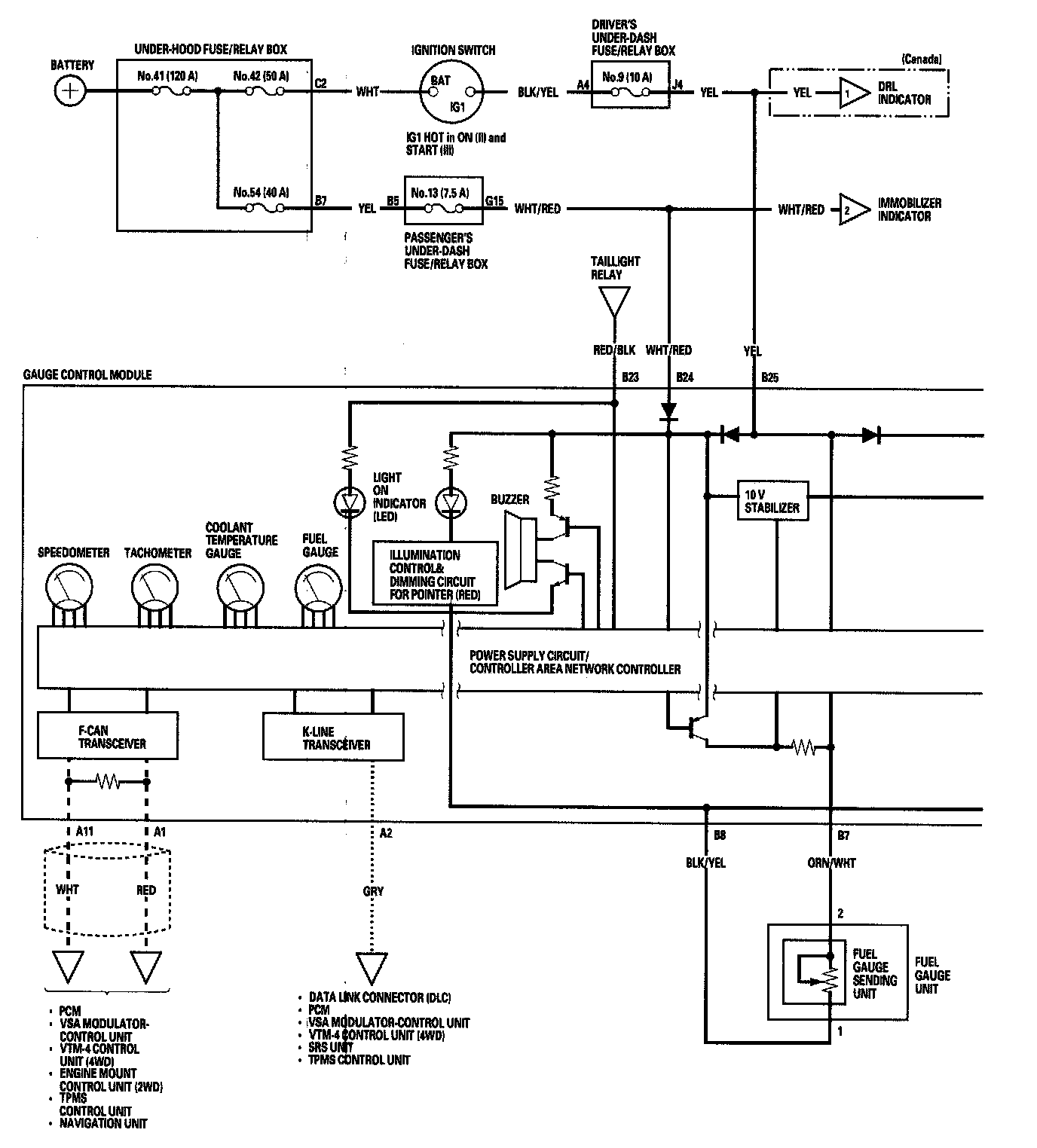

Gauges Circuit Diagram part 4:

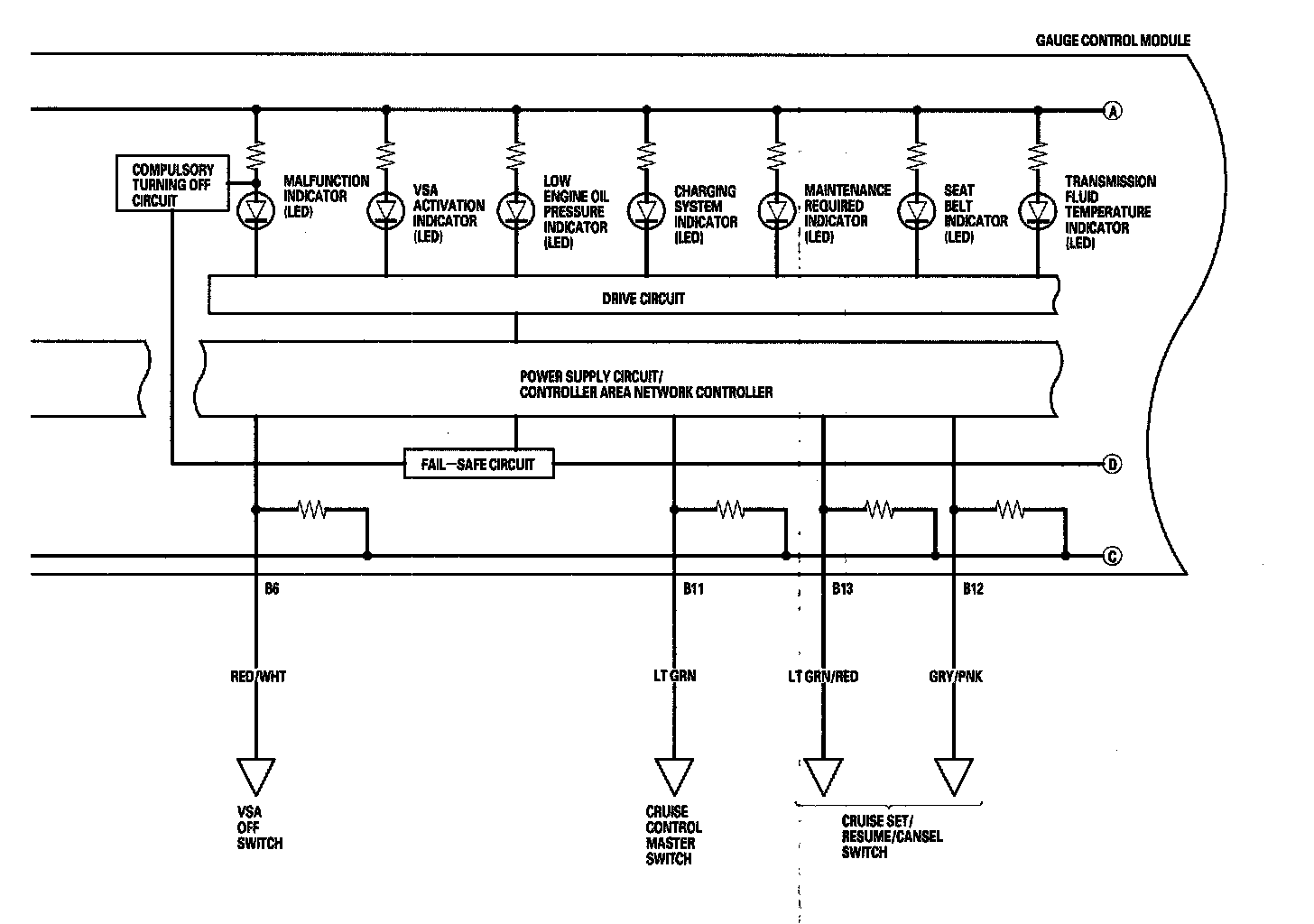

Gauges Circuit Diagram part 5:



Gauges Circuit Diagram part 6:
